- Page 1 Outline s.r.l. USER’S MANUAL FOR MAINTENANCE, CONTROL AND INSTALLATION OF THE “OUTLINE GTO ARRAY” SYSTEM Translation of the original instructions Version 1.0 Pagina 1/31...
-
Page 2: Table Of Contents
USER’S MANUAL FOR MAINTENANCE, CONTROL & INSTALLATION OF THE “OUTLINE GTO ARRAY” – Translation of the original instructions INDEX INTRODUCTION ....................3 DESCRIPTION OF THE RIGGING DEVICE (FRAME)...........3 Load ........................5 Marking........................5 2.2.1 Manufacturer....................5 2.2.2 Product name ....................5 2.2.3 ID Plate ......................5 Use foreseen .......................6... -
Page 3: Introduction
“OUTLINE GTO ARRAY” – Translation of the original instructions 1 INTRODUCTION The aim of this manual is to enable users to use the “Outline GTO Array” system correctly and take all the measures and have all the means necessary for safe long- lasting use of the entire system. - Page 4 USER’S MANUAL FOR MAINTENANCE, CONTROL & INSTALLATION OF THE “OUTLINE GTO ARRAY” – Translation of the original instructions o four brackets and quick-locking pins with buttons for connecting the first element of the array (GTO loudspeaker enclosure); o due 6.5 t (centre) shackles and four 3.25 t (side) shackles for hooking on the motor hoists;...
-
Page 5: Load
The working load limit of the rigging frame is 3,000 kg. It is important to note that each (GTO) element for which this rigging structure has been designed weighs approximately 96 kg., to which 6 kg. have been added, as a precautionary measure, to take into consideration additional loads, mainly due to connecting cables. -
Page 6: Use Foreseen
USER’S MANUAL FOR MAINTENANCE, CONTROL & INSTALLATION OF THE “OUTLINE GTO ARRAY” – Translation of the original instructions In particular, the ID plate features the symbol, the manufacturer, the serial number of the frame, it’s year of manufacture, the working load limit (3,000 kg) and the weight of the unit itself, including all the accessories (shackles, pins and brackets), which is 98 kg. -
Page 7: Unforeseen Use

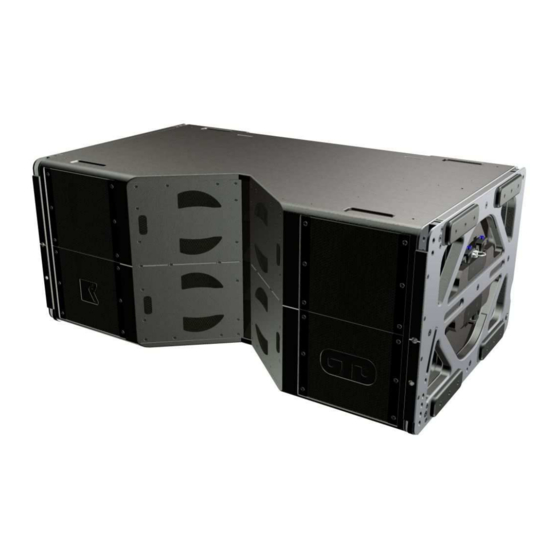

3 DESCRIPTION OF THE “GTO” ELEMENT (LOUDSPEAKER ENCLOSURE) Every “GTO” loudspeaker enclosure has integrated hardware that enables it to be connected to the frame (only on the top) and other “GTO” element, forming an array of a maximum of twenty-four elements. Page 7/31... -
Page 8: Marking
(GTO or frame); fix the rear bracket of the previous element (GTO or frame);... -
Page 9: Product Name
96 kg. (including the mechanism, connector brackets and locking pins). A plate with the basic information for using the GTO system (Figure 7) is also glued on the rear panel. Figure 7 – Label with the instructions for use. -
Page 10: Criteria For Use
The maximum number of “GTO” elements that can be used in an array is twenty-four. The instructions to follow for correct use if the “GTO” elements are the same as shown in paragraph 2.3 (page 6) regarding the rigging frame of the entire structure. -
Page 11: Acoustic Prediction And Mechanism
USER’S MANUAL FOR MAINTENANCE, CONTROL & INSTALLATION OF THE “OUTLINE GTO ARRAY” – Translation of the original instructions o making abrupt changes of direction; o carrying out structural modifications to the enclosure and its accessories; o carrying out welding or repairs and/or connecting other accessories to the elements of the structure o subjecting the structure to corrosive vapours and/or liquids;... -
Page 12: Frame-Element Positioning Sequence
Figure 8 – Group of three enclosures, stacked for handling and storage The frame, according to needs, can be transported separately (in a flight-case) or left connected to the first enclosure of a “batch” of three GTO (the trolley has the necessary dimensions to support the weight of this configuration). -
Page 13: Assembly And Positioning Of The Frame
USER’S MANUAL FOR MAINTENANCE, CONTROL & INSTALLATION OF THE “OUTLINE GTO ARRAY” – Translation of the original instructions 5.2 Assembly and positioning of the frame The frame can be used in two different configurations, according to the position of the entire system’s centre of gravity. - Page 14 2. hook the motors on to the frame and raise it by a few centimetres; 3. remove the four connection brackets for the first GTO from their stand-by position and position them as shown in the following illustration, using the relative locking pins.
- Page 15 “OUTLINE GTO ARRAY” – Translation of the original instructions 5. Insert the four locking pins (two on either side) of the GTO element to fix the frame to the first element of the array. Carry out this procedure on both sides.
-
Page 16: Preparation And Lifting Of The First Group Of Elements And The Following Ones
USER’S MANUAL FOR MAINTENANCE, CONTROL & INSTALLATION OF THE “OUTLINE GTO ARRAY” – Translation of the original instructions 5.3 Preparation and lifting of the first group of elements and the following ones All the procedure described is intended as being for batches of three elements transported on a trolley. - Page 17 USER’S MANUAL FOR MAINTENANCE, CONTROL & INSTALLATION OF THE “OUTLINE GTO ARRAY” – Translation of the original instructions 5. raise the group until it is comes off the ground: the enclosures take up position according to the angles chosen; 6. for each enclosure, insert the two bracing pins (right and left - the ones with no button) and check again that the settings of the angles on the two sides of each element are identical;...
- Page 18 USER’S MANUAL FOR MAINTENANCE, CONTROL & INSTALLATION OF THE “OUTLINE GTO ARRAY” – Translation of the original instructions 7. remove the trolley from the lower element (remove the two fixing pins on the short side, keeping the trolley raised manually);...
- Page 19 USER’S MANUAL FOR MAINTENANCE, CONTROL & INSTALLATION OF THE “OUTLINE GTO ARRAY” – Translation of the original instructions 11. set the splay angle of the bottom element of the group that has just been raised as described in points 2a and 2b, Carry out the procedure on both sides, taking care to select the same angles;...
- Page 20 USER’S MANUAL FOR MAINTENANCE, CONTROL & INSTALLATION OF THE “OUTLINE GTO ARRAY” – Translation of the original instructions 13. set the splay angle for each element of the next group as described in point 2 (on both sides); 14. connect the rear bracket as described in points 3 and 4;...
- Page 21 USER’S MANUAL FOR MAINTENANCE, CONTROL & INSTALLATION OF THE “OUTLINE GTO ARRAY” – Translation of the original instructions IMPORTANT! Before proceeding, check that steps 11 to 17 have been carried out correctly. 18. Slowly lower the array until the array and the group standing on the floor/ground touch.
-
Page 22: Connection Tests
USER’S MANUAL FOR MAINTENANCE, CONTROL & INSTALLATION OF THE “OUTLINE GTO ARRAY” – Translation of the original instructions 5.4 Connection tests ATTENTION! If the array has been correctly installed, the following conditions must be satisfied: 1. all the bracing pins (on all the elements of the array and on both sides) must be fitted;... -
Page 23: Repositioning
USER’S MANUAL FOR MAINTENANCE, CONTROL & INSTALLATION OF THE “OUTLINE GTO ARRAY” – Translation of the original instructions 5.6 Repositioning All the operations described regarding the “dismantling” of the array and the re-assembly of the “batches” of three elements. Lower the entire array until the bottom element is approximately half a metre from the ground/floor;... - Page 24 USER’S MANUAL FOR MAINTENANCE, CONTROL & INSTALLATION OF THE “OUTLINE GTO ARRAY” – Translation of the original instructions if necessary, slowly raise the array so that the batch of three enclosures stands correctly on the trolley, with all four wheels level;...
- Page 25 USER’S MANUAL FOR MAINTENANCE, CONTROL & INSTALLATION OF THE “OUTLINE GTO ARRAY” – Translation of the original instructions when the three enclosures are steady and firmly in place, remove the front collection pin, in order to disconnect the three enclosures standing on the ground/floor from the rest of the array;...
-
Page 26: Notes
On the GTO enclosures, they are retracted on the sides of the enclosure. 6.2 Protection cover It is possible to request the “GTO PC-3” accessory to protect the batch of three GTO elements on the trolley. The pins connecting the enclosures are therefore protected and it is possible to leave them inserted during handling and transport. -
Page 27: Check On Arrival
USER’S MANUAL FOR MAINTENANCE, CONTROL & INSTALLATION OF THE “OUTLINE GTO ARRAY” – Translation of the original instructions particular care, at an extremely moderate speed and taking care with any unevenness of the ground/floor (ridges, obstacles or drains) that could create dangerous situations (loads that are unsteady or can fall, unexpected movements, etc.). -
Page 28: Periodical Control
USER’S MANUAL FOR MAINTENANCE, CONTROL & INSTALLATION OF THE “OUTLINE GTO ARRAY” – Translation of the original instructions o assembly and handling tests. These operations must be carried out by qualified staff prior to every time the equipment us used. Any irregularity must be reported and work stopped. -
Page 29: Maintenance Register
USER’S MANUAL FOR MAINTENANCE, CONTROL & INSTALLATION OF THE “OUTLINE GTO ARRAY” – Translation of the original instructions 13 MAINTENANCE REGISTER As anticipated in the chapter MAINTENANCE & CONTROL, for every frame and every element, a special register must be realized, in which the periodical tests the structure and relative accessories undergo will be noted. -
Page 30: Appendix 1 Frame Test Form
USER’S MANUAL FOR MAINTENANCE, CONTROL & INSTALLATION OF THE “OUTLINE GTO ARRAY” – Translation of the original instructions Annex 1 FRAME TEST FORM Model: Serial N° : Year: Date Frame Frame_ Frame_ Shackles Pinion Side Locking Notes Signature holes Welding... -
Page 31: Appendix 2 "Gto" Element Test Form
USER’S MANUAL FOR MAINTENANCE, CONTROL & INSTALLATION OF THE “OUTLINE GTO ARRAY” – Translation of the original instructions Annex 2 “GTO” ELEMENT TEST FORM Model: Serial N° : Year: Date L/hand Holes R/hand Holes Front Rear Locking & Notes Signature...
