- Page 1 Screwdriver I/O Signal Control Box User Operation Manual Model : KL - SCBSN (Ver 1.0) KILEWS INDUSTRIAL CO., LTD. http://www.kilews.com Y2F122-1-006...
-
Page 3: Copyright Notice

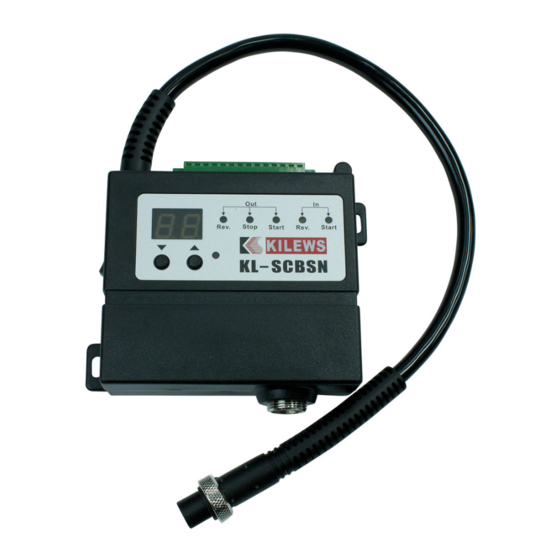

Copyright Notice : This document is copyrighted, 2014, by Kilews Industrial Co., Ltd. All rights are reserved. Kilews Industrial Co., Ltd., reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Kilews Industrial Co., Ltd. - Page 4 1. Introduction : 1.1 Overview : The KL-SCBSN is an intelligent PLC-to-Screwdriver I/O control module containing built-in microprocessor. Screwdriver is remotely controlled through a simple set of command protocols issued in binary fromat and transmitted in RS-485 communication interface. KL-SCBSN provide digital input lines to support start ,reverse and gate function by external control and output start, brake and reverse signals to external device.
-
Page 5: Assembly Description
1. KL-SCBSN signal I/O control box support connect to both 32V (SKP-32BC) and 40V (SKP-40B) power supply. 2. KL-SCBSN support all 24V, 32V and 40V voltage, it can apply to all KILEWS BN series screwdriver. (BN200 / BN500 / BN800 / TBN / RBN) 3. - Page 6 2.2 Connector I/O wiring description : Please find the 14 Pin connector on top of the controller box and follow the input and output control functions wiring : Short Pin 1 and Pin 2 for input signal to start the screwdriver Short Pin 3 and Pin 4 for input signal to change the screwdriver run in reverse,otherwise run in forward.
-
Page 7: Digital Input
2.4 Digital Input : Dry contact On : Close to Gnd Off : Open Wet contact On : +2 V Max Off : +4 V to 30 V 2.5 Relay output wiring diagrams Regulate the spike voltage generated on the inductive load as follows : ※... - Page 8 3. Operation Description : Slow Start & Running Time Control Switch 3.1 Panel setting description : Function Description 1. Power on and connected display RED light on Power / Comm. Error 2. When disconnect or loss communication with screwdriver , display RED light and / Gate Enable LED blink every 0.5 sec.
- Page 9 3.2 LED Display in setting mode and error code description : Symbol Definition Description Press▲+▼for 2 Sec, LED will display [RC]. Set Slow Start Use▲or▼to increase or descrease slow start time value from 0.0 to 9.9 Time sec. Press▲+▼for 1 sec after set [RC], LED will display [SP]. Set Slow Start Use▲or▼to increase or descrease slow start speed level from L0 (100%, Speed Level...
- Page 10 4. Techical Diagram :...
