Figure 4-2 End Of Travel Limit Switch Settings; Figure 4-3 Auxiliary Switch Settings - Honeywell HercuLine 10260A Installation, Operation And Maintenance Manual

10260A Series Actuators Installation, Operations, and Maintenance Manual
Left hand
Pointer scale
SW#1
SW#2
Clockwise and counterclockwise rotation is the direction of the output shaft when facing the end
of the shaft. As shown, clockwise rotation of the output shaft activates SW#1 (at 0% on left hand
pointer scale) and CCW rotation activates SW#2 (at 100% on left hand pointer scale). Terminal
32 10260A Series Actuators – Installation, Operations, and Maintenance
End of travel limit switch settings
0%
8 (SW1 COM)
14
5
numbers are next to circles (see Figure 3-11).

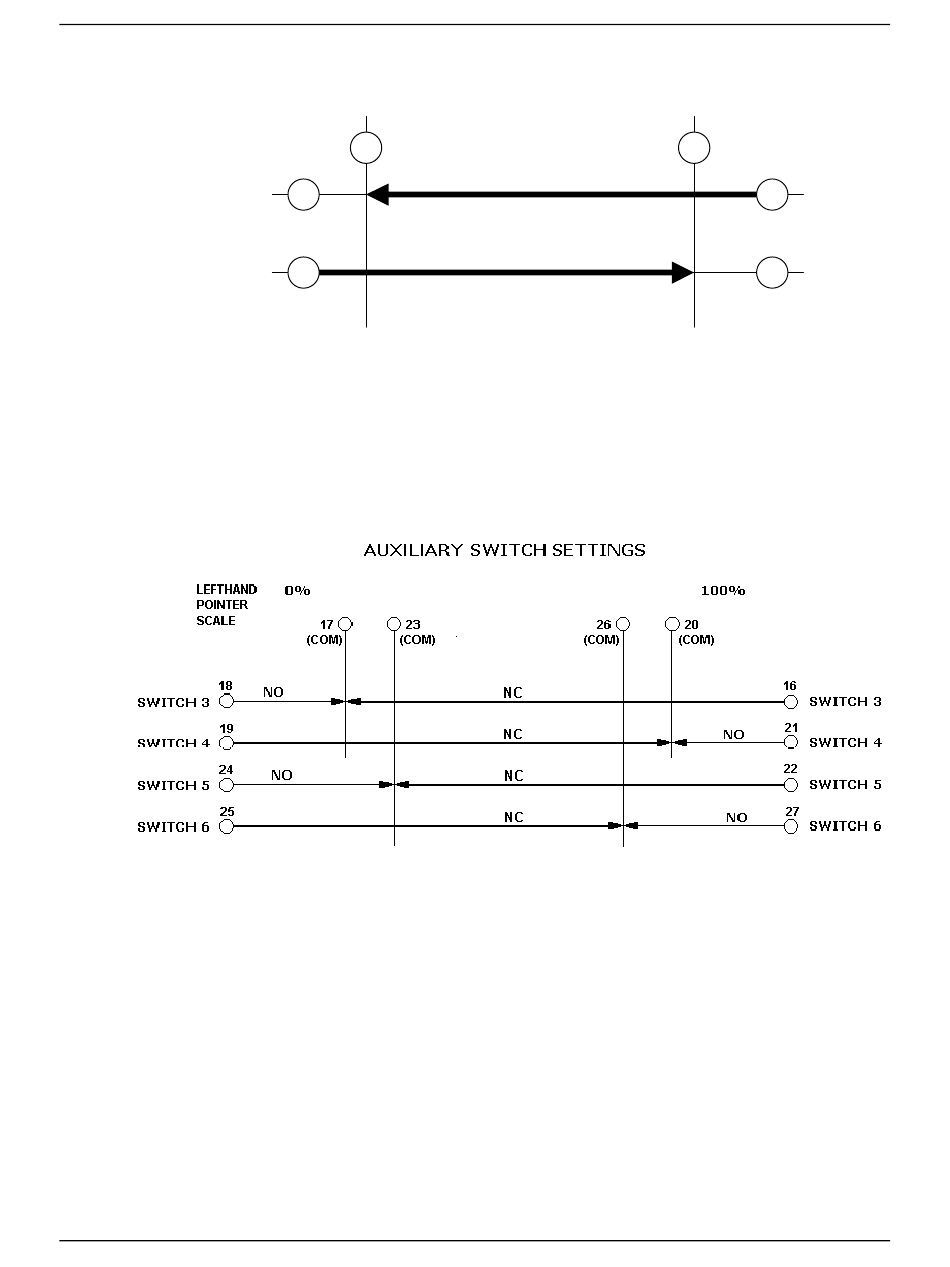

Figure 4-2 End of Travel Limit Switch Settings

Figure 4-3 Auxiliary Switch Settings

100%
9 (SW2 COM)
NC
NC
7
15
2/03
