Turnbuckle Linkage Kits
(See Section 8 for Kit numbers.)
These kits are to be used where short lengths are required. These lengths range from 12 to 24 inches and
refer to the rod end center - to - center distance. All turnbuckle kits include the turnbuckle, load rod end
(left-hand thread), connecting rods and locking nuts. The nut and bolt needed to connect the rod end to the
load are supplied by the Customer. The actuator rod end (right-hand thread), nut and bolt are supplied with
the actuator. These kits can be ordered with the Actuator via Table VI of the Model Selection Guide or
separately as identified in section 8.4 of this manual.
Rod end, nut and bolt are
supplied with the actuator
Pipe Linkage Kits
(See Section 8 for Kit numbers.)
These kits are used for linkage lengths from 24 inches to 120 inches (60 cm to 305 cm). All pipe linkage
kits include the mechanical pipe couplings, load rod end (left-hand thread), connecting rods and locking
nuts. The Customer must supply a piece of schedule 40 pipe * (both ends with right-hand NP threads) and
a nut and bolt to connect the rod end to the load. The actuator rod end (right-hand thread), nut and bolt are
supplied with the actuator. These kits can be ordered with the Actuator using Table VI of the Model
Selection Guide or separately as identified in Section 8, Replacement/Recommended Spare Parts of this
manual.
18 10260A Series Actuators – Installation, Operations, and Maintenance

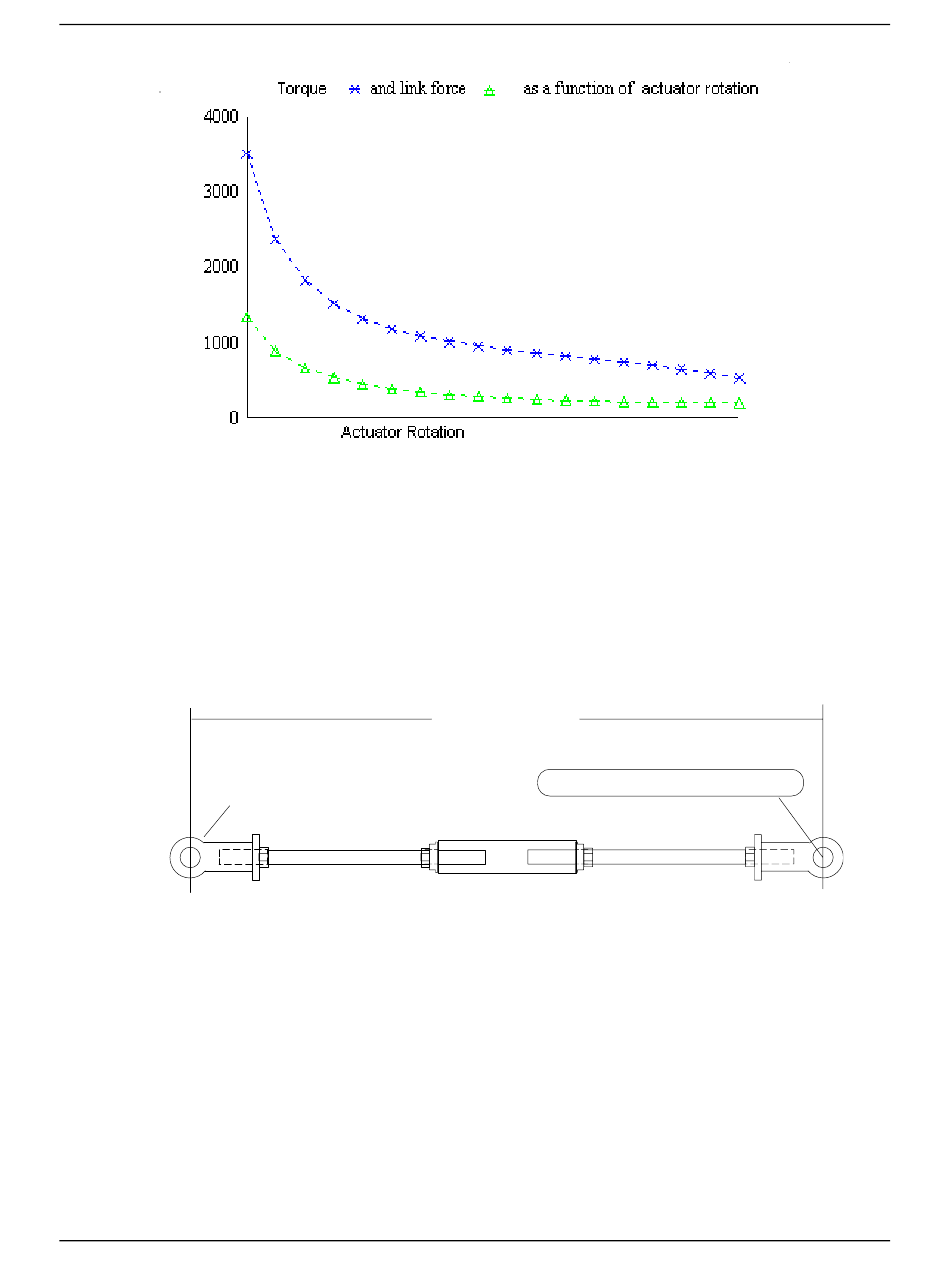

Figure 3-6 Variable Torque Profile

1/2"-20 right-hand threads

Figure 3-7 Turnbuckle Linkage Kit

12 to 24 inches
Customer supplied nut and bolt
0.5"-20 left-hand threads
a/n 23201
2/03
