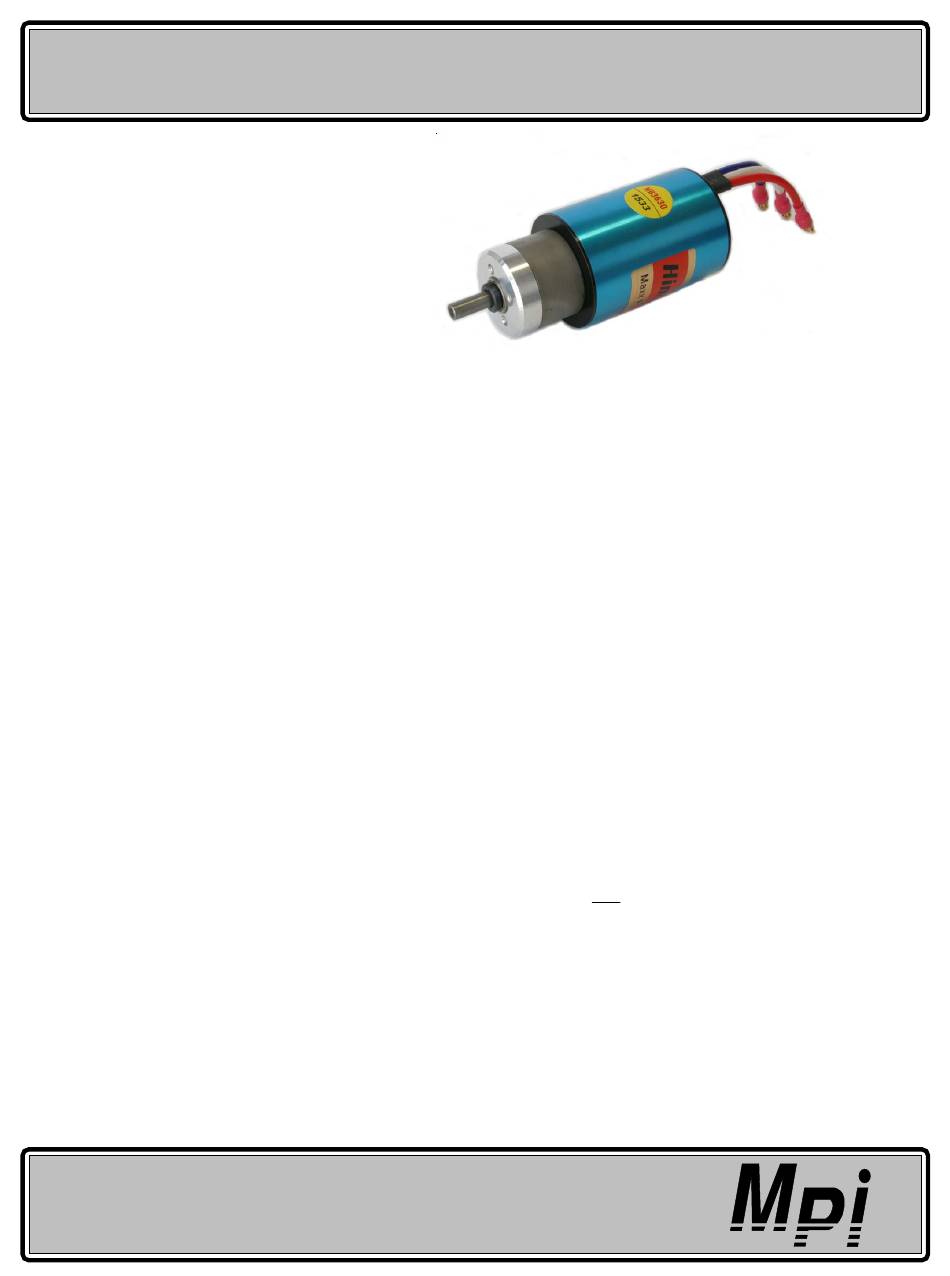

Himax HB3630 Series Manual

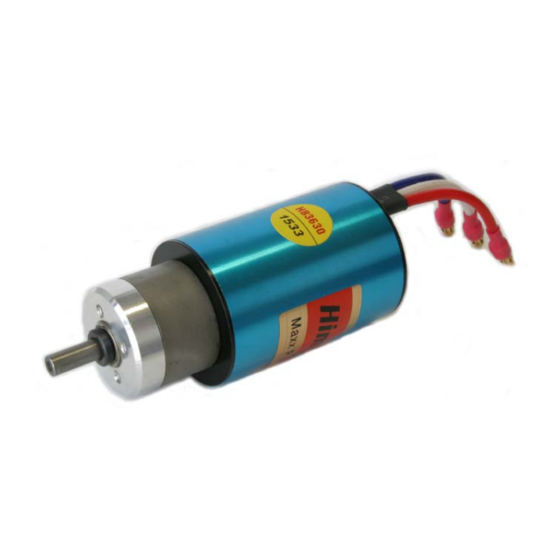

HB3630 Series GearMotor
Himax Brushless motors are manufactured to high standards for the discerning modeler. Designed for lightweight, high
efficiency, and durability these Himax motors are sure to make today's radio controlled models perform. Please read the entire
operating manual to ensure correct functionality and best performance. The HB3630 series motor is made for medium size
models weighing 48 to 112 ounces.

Features:

High Efficiency - High Power - Lightweight - Replacement for 500-600 Motors

Specifications:

Weight: HB3630-xx43 gearmotor 274g(9.7oz)
Max Power: 600W (This is dependent on several factors)
Max Motor RPM: 40,000 RPM
Gear Ratio: 4.28:1
Diameter: 36mm, (1.42")
Length: 74.0mm, (2.92")
Shaft Diameter: 5.0mm, (.1969")
Mounting Screw Thread: 4-40, on 16mm, (.625") bolt circle
Maximum Case Temperature: 100

Electrical Specifications:

HB3630-1000 motor: Kv = 1089, Rm = .050, Io = 1.1, Efficient Operating Current = 15-30A
HB3630-1500 motor: Kv = 1606, Rm = .0227, Io = 2.4, Efficient Operating Current = 25-50A

Operation:

1. Himax Brushless motors require brushless sensorless speed controls.
speed control (ESC) can result in damage to the motor and/or ESC. A Castle Creations Phoenix series ESC is recom-
mended for best performance. The standard setting for timing advance is recommended for best operation.
2. The three wires of the motor can be connected to the three output leads of the ESC in any order. Check the direction of
rotation of the motor. If the motor spins in the wrong direction switching any two of the motor wires will reverse rotation. Be
sure to insulate the wires to prevent shorting which may damage the ESC.
3. Do not shorten the motor wires. Shortening or cutting the motor wires voids the warranty and may cause motor failure. If
the supplied connectors are not to be used, remove them by desoldering. DO NOT CUT THE CONNECTORS OFF!
4. Allow for proper cooling of the motor during operation. With extremely high capacity batteries, care must be taken to prevent
excessive motor temperature. Overheating of the motor is not covered under warranty. Insufficient cooling can result in
overheated motors, even when operated at moderate power levels.
5. Do not disassemble the motor. Disassembling the motor voids the warranty. If service is required please return the unit to
Maxx Products for service.
6. Install the propeller after proper rotation has been determined.
use procedures. Be sure the prop is clear before starting the motor. Once the battery is plugged in stay clear of the prop,
electric motors are capable of extremely high torque and can be very dangerous.
MAXX
PRODUCTS INTERNATIONAL, INC.
815 OAKWOOD RD, UNIT D, LAKE ZURICH, IL 60047, USA
Phone: (847)438-2233 Fax: (847)438-2898 Website: www.maxxprod.com
Himax Himax
Himax Himax Himax
Brushless Gearmotor
HB3630-1043
HB3630-1543
C, (212 F)
o o
Failure to use a brushless sensorless electronic
Consult the ESC operation manual for proper arming and
REV: _, 1/25/05
