BinTec BinGO! Plus Quick Install Manual

Quick Install Guide
BinGO! Plus/Professional

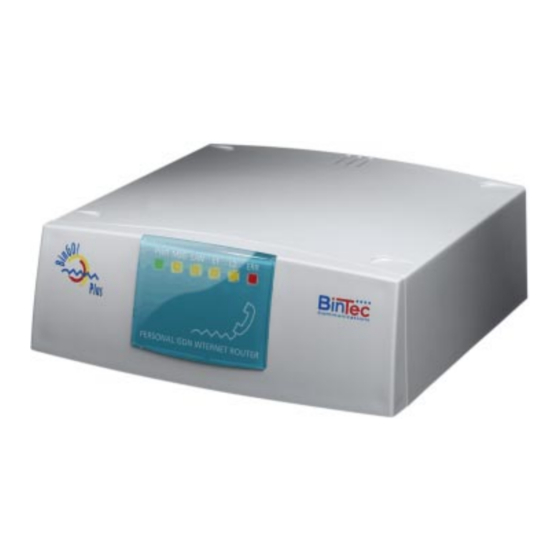

BinGO! Plus and BinGO! Professional are full-featured Personal ISDN
Internet Access Routers for single users and small-sized companies as
well.
With the Configuration Wizard on the BinTec Companion CD, BinTec
Communications offers you a quick and convenient way to start running
your BinGO! Plus/Professional. You can perform basic configuration via
serial connection with your Windows PC. This basic configuration in-
cludes all the important settings of the router, access to the Internet via
an Internet Service Provider (ISP), as well as the connection to a WAN
partner (e.g. to a corporate headquarters). The Configuration Wizard
guides you step by step through the configuration and so detailed knowl-
edge of networking technologies is not necessary. Graphic illustrations
and a detailed online help system give you additional support.
The Configuration Wizard is one of several possibilities to configure your
router. In this way, access to your router occurs via the serial interface.
Additional methods of configuring your router are described in your
User's Guide. With them you are able to fine-tune your configuration.
The following system requirements are necessary:
Windows 95/98 or Windows NT 4.0
Installed network card (ethernet)
Installed Microsoft TCP/IP stack (see section 2 "Checking and In-
stalling the TCP/IP Protocol")
High color monitor (at least 32000 colors) for correct display of
graphics
This Quick Install Guide takes you step by step through a basic configu-
ration of your BinGO! Plus/Professional. Congratulations on your new
purchase and have fun!
Version 1.1
Document #71010C, February 1999

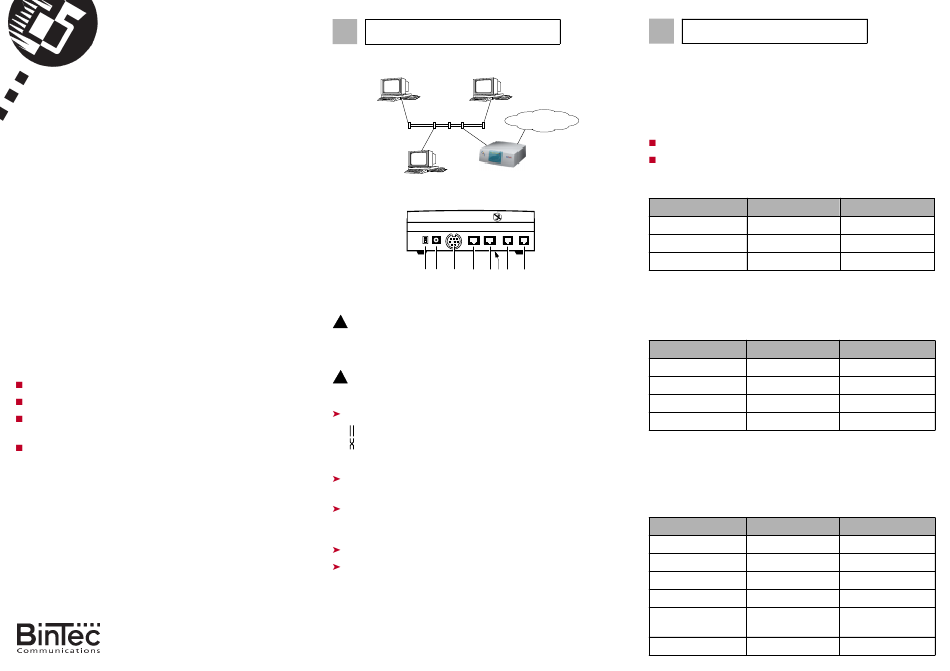

1 Connecting your Router
You can integrate your router in a local network (LAN):
LAN
All ports are located on the back plane of your product:
LAN PHONE
1
POWER SERIAL
ISDN-S/T 10BASE-T 1
0
1 2 3 4 5 6 7
Connect the included cables in the following order:
Caution! Using an incorrect mains adaptor may damage your rout-
!
er! Therefore, only use the mains adaptor delivered with your Bin-
'
GO! Plus/Professional! Don t mix up the mains adaptors of BinGo!
and BinGO! Plus/Professional!
Caution! Incorrect cabling of the ISDN and LAN interfaces could
!
'
also damage your router! Don t interchange the LAN and ISDN
interfaces!
Set the LAN switch (6) to position:
if you want to connect your router to the LAN hub (see above),
if you don't want to connect your router to a LAN but directly to
the ethernet card of your PC (single user system).
Connect the included laplink cable to your computer (COM1 or
COM2) and the serial port (3) of your router.
Connect the 10BaseT port (5) of your router to your ethernet or to
the network card of your PC (single user system). Use one of the in-
cluded ISDN (RJ-45) cables.
Connect your analog equipment to phone ports (7) und (8).
Connect the other ISDN (RJ-45) cable to the S
router and your ISDN outlet.
Connect the included power adaptor to your router (2) and your mains
socket. Turn your router on using the power switch (1).
2 Preparing Configuration
Router Settings
Before you start to configure your router, make sure you know the follow-
ing information about your ISDN connection and your network environ-
ment. Write down your values in the table below to make sure you find
the necessary information while you are performing the configuration,
ISDN
examples are shown.
ISDN number: the numbers of your ISDN connection.
If you have an existing network, ask your system administrator for
the IP address and netmask of your router. If you are installing a new
network, simply use the example values given.
Access Data
ISDN numbers
2
Router´s IP address
Router´s netmask
8
Internet Access
For access to the Internet via your Internet Service Provider (ISP), e.g.
T-Online, you will need several pieces of information which should be
provided by your ISP (different ISPs may use different terminology).
Account Info
Provider name
Phone number (ISP)
User account
Password
Some ISPs, for example T-Online, need additional information, such as
the T-Online number and joint user account.
Corporate Network Connection (LAN-LAN Connection)
For the connection to a corporate network or another WAN partner, you
must have the following information about the opposite terminal.
Access Data
WAN partner name
Phone number
port (4) of your
0
Local name
Password
Partner´s
address(es)
Partner´s netmask(s)
Example Your Value
10, 11, 12
192.168.1.254
255.255.255.0
Example Your Value
GoInternet
1234567
MyName
TopSecret
Example Your Value
BigBoss
0911987654321
LittleIndian
Secret
network
10.1.1.0
255.255.255.0
