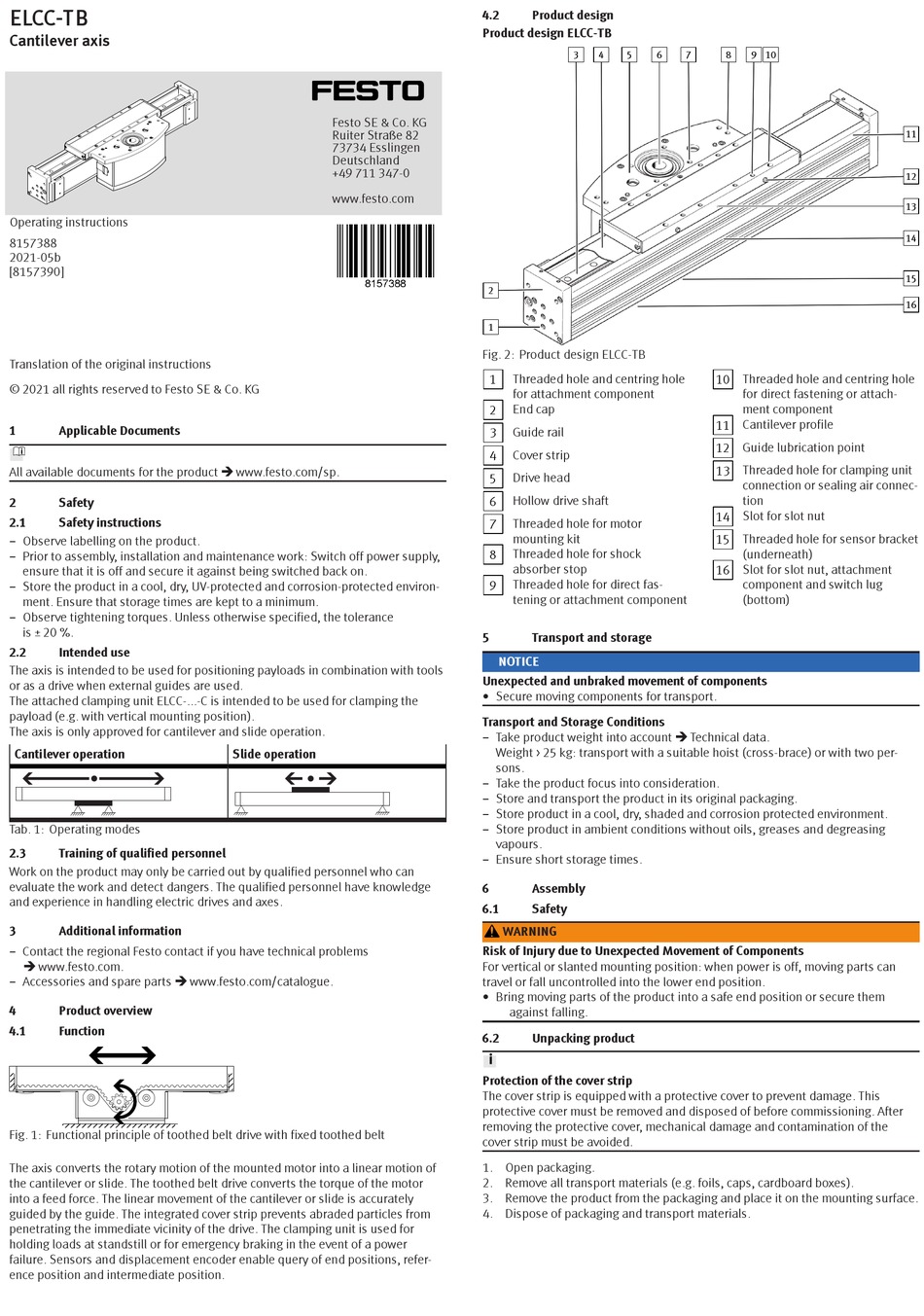

ELCC-TB
Cantilever axis
Operating instructions
8157388
2021-05b
[8157390]
Translation of the original instructions
© 2021 all rights reserved to Festo SE & Co. KG
1

Applicable Documents

All available documents for the product è www.festo.com/sp.
2

Safety

2.1 Safety instructions
– Observe labelling on the product.
– Prior to assembly, installation and maintenance work: Switch off power supply,
ensure that it is off and secure it against being switched back on.
– Store the product in a cool, dry, UV-protected and corrosion-protected environ-
ment. Ensure that storage times are kept to a minimum.
– Observe tightening torques. Unless otherwise specified, the tolerance
is ± 20 %.
2.2 Intended use
The axis is intended to be used for positioning payloads in combination with tools
or as a drive when external guides are used.
The attached clamping unit ELCC-...-C is intended to be used for clamping the
payload (e.g. with vertical mounting position).
The axis is only approved for cantilever and slide operation.
Cantilever operation
Tab. 1: Operating modes
2.3 Training of qualified personnel
yy zz {{ || y z { | y z { | Work on the product may only be carried out by qualified personnel who can
evaluate the work and detect dangers. The qualified personnel have knowledge
and experience in handling electric drives and axes.
3

Additional information

– Contact the regional Festo contact if you have technical problems
è www.festo.com.
– Accessories and spare parts è www.festo.com/catalogue.
4

Product overview

4.1 Function
F ig. 1: Functional principle of toothed belt drive with fixed toothed belt
The axis converts the rotary motion of the mounted motor into a linear motion of
the cantilever or slide. The toothed belt drive converts the torque of the motor
into a feed force. The linear movement of the cantilever or slide is accurately
guided by the guide. The integrated cover strip prevents abraded particles from
penetrating the immediate vicinity of the drive. The clamping unit is used for
holding loads at standstill or for emergency braking in the event of a power
failure. Sensors and displacement encoder enable query of end positions, refer-
ence position and intermediate position.
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Deutschland
+49 711 347-0
www.festo.com
Slide operation
4.2 Product design
Product design ELCC-TB
3 4 5 6
2
1
Fig. 2: Product design ELCC-TB
1 Threaded hole and centring hole
for attachment component
End cap
2
3 Guide rail
4 Cover strip
Drive head
5
6 Hollow drive shaft
Threaded hole for motor
7
mounting kit
Threaded hole for shock
8
absorber stop
9 Threaded hole for direct fas-
tening or attachment component
5

Transport and storage

NOTICE
Unexpected and unbraked movement of components
• Secure moving components for transport.
Transport and Storage Conditions
– Take product weight into account è Technical data.
Weight > 25 kg: transport with a suitable hoist (cross-brace) or with two per-
sons.
– Take the product focus into consideration.
– Store and transport the product in its original packaging.
– Store product in a cool, dry, shaded and corrosion protected environment.
– Store product in ambient conditions without oils, greases and degreasing
vapours.
– Ensure short storage times.
6

Assembly

6.1 Safety
WARNING
Risk of Injury due to Unexpected Movement of Components
For vertical or slanted mounting position: when power is off, moving parts can
travel or fall uncontrolled into the lower end position.
• Bring moving parts of the product into a safe end position or secure them
against falling.
6.2 Unpacking product
Protection of the cover strip
The cover strip is equipped with a protective cover to prevent damage. This
protective cover must be removed and disposed of before commissioning. After
removing the protective cover, mechanical damage and contamination of the
cover strip must be avoided.
1. Open packaging.
2. Remove all transport materials (e.g. foils, caps, cardboard boxes).
3. Remove the product from the packaging and place it on the mounting surface.
4. Dispose of packaging and transport materials.
7 8 9 10
10 Threaded hole and centring hole
for direct fastening or attach-
ment component
11 Cantilever profile
Guide lubrication point
12
13 Threaded hole for clamping unit
connection or sealing air connec-
tion
14 Slot for slot nut
15 Threaded hole for sensor bracket
(underneath)
Slot for slot nut, attachment
16
component and switch lug
(bottom)
11
12
13
14
15
16
