Summary of Contents for TMEZON MZ-WF430BA
- Page 1 Wireless NVR Kit Manual Product Manual Wireless NVR Kit...
-
Page 2: Table Of Contents
Wireless NVR Kit Manual Before You Install................................1 1.Product features overview............................1 1.1 Product introduction............................1 1.2 Product parameters..........................1 1.3 Functional features............................3 2.Operation explanation..............................4 2.1 The front panel explanation..........................4 2.2 Rear Panel Interface explanation........................4 2.3 Mouse operation instructions.......................... 5 2.4 Input method instructions..........................5 2.5 Interface specification............................6 2.5.1Interface elements specification...................... - Page 3 Wireless NVR Kit Manual 4.5 PTZ setup................................. 28 4.5.1 PTZ parameter setup.......................... 28 4.5.2 PTZ control operation..........................29 4.5.3 PTZ automatic cruise setup....................... 29 4.6 Recording................................. 30 4.6.1 Manual recording..........................30 4.6.2 Timed recording........................... 30 4.6.3 Motion detection recording.........................31 4.6.4 Alarm recording............................ 32 4.7 Video playback..............................33 4.7.1 Fast playback............................33 4.7.2 Regular playback..........................
-
Page 4: Before You Install
Wireless NVR Kit Manual Before You Install We appreciate your support to TMEZON. If you have any problem or concerns about the system, please feel free to contact us with Technical support Email address: support@tmezon.com （Please kindly attach the item link you placed order with, so that we can solve the trouble for you as soon as possible.）... - Page 5 Wireless NVR Kit Manual Recording Manual,time,motion dection,alarm Storage 1 SATA Storage capacity 6TB for each HDD Network interface 1 RJ45 10M/100M，2 WIFI connector USB interface 1 USB2.0 Audio interface 3.5 inch headphone jack（Optional） Power consumption ≤5W working temperature -10℃--＋55℃ Working humidity 10％--90％RH Dimension（mm）...
-
Page 6: Functional Features
Wireless NVR Kit Manual Level of Protection IP66 1.3 Functional features • H.264，4CH real-time D1，1080P wireless NVR； • Built-in high-performance and high-stability wireless Wi-Fi routing module, supports 802.11b / g / n protocol, 150Mbps; • Can automatically access the Wi-Fi network camera through the network cable； •... -
Page 7: Operation Explanation

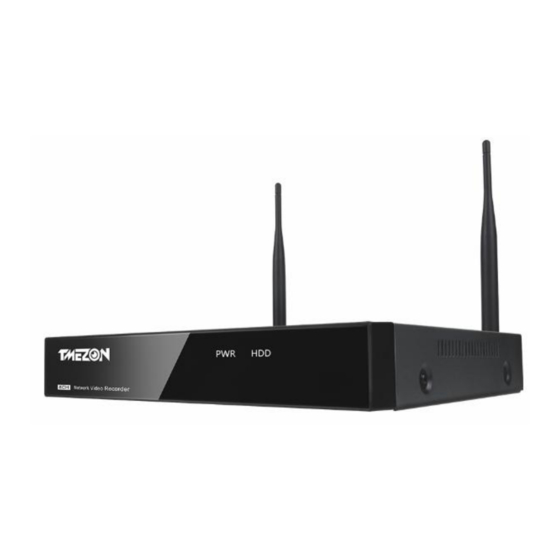

Wireless NVR Kit Manual 2.Operation explanation The front panel explanation Figure 1 1．POW：Power indicator light 4．HDD：Hard disk indicator light 2.2 Rear Panel Interface explanation... -
Page 8: Mouse Operation Instructions
Wireless NVR Kit Manual Figure 2 2.3 Mouse operation instructions Mouse Actio effect Example Click 1, option button, drop down box, list box, check box, Select the target once radio button Click 1, switch between a single interface and the Left key Window zoom twice... -
Page 9: Interface Specification
Wireless NVR Kit Manual 2.5 Interface specification 2.5.1Interface elements specification Name Operation Operation function Example Save or cancel Application, confirmation, cancellation click on the left Button Open the mouse Edit, set sub-interface click on the left Edit box Modify Change Password mouse Drop down... -
Page 10: Installation And Connection
Wireless NVR Kit Manual 3. Installation and connection 3.1 Installation Notice Note the following when installing: 1, In order to extend the life of the machine, the device should be away from water, high temperature, dust environment, and placed in a well ventilated place. 2, Please use the SATA hard drive, USB device, mouse device buying from proper channels. - Page 11 Wireless NVR Kit Manual power all the device to complete the second step, when all the IPC video show on the NVR monitor, that means the kit is working properly, can be installed to a predetermined location. 1, Unplug your NVR from power,unscrew and remove the top cover. 2, Connect the SATA power and data cables from the NVR to the corresponding ports on your HDD (as shown).
-
Page 12: The Camera Placed In The Default Location
Wireless NVR Kit Manual Figure5.2 Figure 5.3 Figure 5.4 3.3 The camera placed in the default location 1 ， In the effective coverage of the wireless signal, install wireless camera to the default location, and provide 12V power supply; 2，Power the wireless camera for 1 minute or so, you can see the video in the NVR monitor; 3，If do not show the image, indicating that the distance is too far so need to shorten the distance. -
Page 13: System Function Introduction
Wireless NVR Kit Manual NVR antenna transmit signal to the surrounding divergence. NVR and IPC antenna at the same height and parallel is the best. If not the same height, IPC antenna should be tangent with the sphere of the NVR spherical center, and can not let the antenna Direct to NVR. -
Page 14: Login
Wireless NVR Kit Manual Before starting up, make sure that the display or monitor is connected to the video output of the device. Specific starting up steps are as follows: 1, Plug in the power, the front panel power indicator is red. 2, Turn on the rear panel power switch or tap the front panel power "On"... -
Page 15: Logout
Wireless NVR Kit Manual 4.1.3 Logout If the users need to log out the process, you can right-click shortcut menu, select to exit system. Click the user to log off, then you can complete. As shown below. if the user needs to log off automatically, in the system settings -> General settings, you can set open the automatic logout state. - Page 16 Wireless NVR Kit Manual 2, general setup. Can set the system city, time, language, key type, the status of the remote control, remote control code. The interface is shown below. After the operation is complete, click the Next button. 3, Network settings. You can choose to automatically obtain IP address, manually set the IP address, gateway, mask, PPPoE and other operations.
-
Page 17: Video Management
Wireless NVR Kit Manual 4, hard disk setup. Can display the current list of hard disk, including the model, capacity, usage, status, formatting status. If you want to format the hard disk, you can select the corresponding hard disk, then click the format button. -
Page 18: Add Device
Wireless NVR Kit Manual 4.3.2 Add device Function instructions：Used to add the searched IPC device. Operation steps： 1. Code matching instructions： https://youtu.be/F2Nr__dSewA Here is a video link about how to match code: The code matching is mainly for matching NVR with IPC and sending NVR WiFi account name and password to the IPC, so that IPC automatically connected with NVR. -
Page 19: Advanced Setups
Wireless NVR Kit Manual and to achieve cable transmission. Fast adding method: the main menu (right click the mouse) -> video management -> Fast adding Through the network cable to connect NVR and IPC, click search, video management interface will show the information that the NVR normally communicated with IPC. -
Page 20: Repeater Setup
Wireless NVR Kit Manual 1, Right click on the main interface of the system, in the pop-up right-click menu selecting"Video Management". After entering the video management interface, click to select any of the IPC device information which has been added; 2, Click the "Delete Channel"... - Page 21 Wireless NVR Kit Manual 3 As picture shown below, it means IPC1 is connected to NVR through IPC2 and IPC3. IPC2 is connected to NVR through IPC3. IPC3 is connected to NVR directly. 4, Click “Apply” and then click “refresh” to check if the setup is successful.
-
Page 22: Edit Channel
Wireless NVR Kit Manual 4.3.6 Edit Channel Functional explanation：Edit IPC device channel protocol, IP address, port, user name and password, stream type. Operational steps： 1, Right click on the main interface of the system, in the pop-up menu right-click "Video Management", in the open video management interface, click to select any of the IPC device which has been added;... -
Page 23: Stream Value
Wireless NVR Kit Manual Explanation Stream selection has the main stream, sub-stream optional. In the case of better network conditions, device self-adaptation can choose the main stream, to get more high-quality screen. In the case of poor network conditions, the device self-adaptation will select the secondary stream, to ensure the fluency of the monitor. -
Page 24: Channel Osd
Wireless NVR Kit Manual 2、 Click Refresh, you can search the camera in current channel and you can check the channel name of the device, resolution, stream value, video frame rate, software version details. 4.3.10 Channel OSD Functional explanation ： You can adjust the color of the IPC device in each channel and change the currently displayed channel name. -
Page 25: Camera
Wireless NVR Kit Manual 3, Select the display setup, enter the location of communication icon adjustment. Can select position and magnification. 4.3.11 Camera Functional explanation：You can set the panorama camera installation mode Steps： 1, Right Click the main interface, in the shortcut menu, select the system setup, select the channel setup -> camera. - Page 26 Wireless NVR Kit Manual 2, Set the network parameters. In the network setup of the "network setup" can modify the device's IP address, subnet mask, gateway and other information. You can check the automatic access to IP. Check the E-see net (P2P) and displaying the E-see net ID is for remote monitoring. 3, After setup, click the "Apply"...
-
Page 27: Dynamic Domain Name
Wireless NVR Kit Manual If the ID number is not online, it Network status Notify the current network status can be operated according to the notifying information. 4.4.2 Dynamic domain name Function explanation：If the device does not have a fixed access address, using DDNS (dynamic domain name resolution) to access the device through the domain name, you can effectively solve the trouble brought by dynamic IP to access the equipment. -
Page 28: E-Mail
Wireless NVR Kit Manual 2, Check the FTP function to open the check box. 3, Fill in the FTP host, port, user name and password and other information. 4, Set the time period, click the "test" button. After the test is successful made, click the "Apply" button to save the setups. -
Page 29: Pppoe
Wireless NVR Kit Manual Function name Function explanation The input format is smtp. Mailbox server name .com, for example SMTP server smtp.126.com User name Mailbox full user name，For example123456@126.com Password Email Password The default can choose to not select, if the test fails, then modify to Encryption type The sender's full email address, need to be consistent with the Sender... -
Page 30: Wireless Setup
Wireless NVR Kit Manual Explanation PPPoE function means that PPPoE dial-up Internet access is enabled， means do not enable that function. 4.4.6 3G Steps： 1, Right click the main interface, in the shortcut menu, select the network setup -> 3G. As shown below: 2, Check the 3G module to open the check box. -
Page 31: Ptz Setup
Wireless NVR Kit Manual Explanation Click Reset to restore the information of the wireless module to the factory setup. 4.5 PTZ setup 4.5.1 PTZ parameter setup Operation prerequisites： Before the user controls the IP channel or the PTZ, please make sure that the network between the PTZ decoder and the NVR is connected normally in advance and that the device PTZ decoder parameters are configured. -
Page 32: Ptz Control Operation
Wireless NVR Kit Manual 4.5.2 PTZ control operation Steps： 1, In the main interface, double-click the preview interface which need to be set 2, Right-click in the preview interface and select PTZ control in the shortcut menu, as shown in the following figure Operation explanation：... -
Page 33: Recording
Wireless NVR Kit Manual 8, Right click to return to the setup interface and click the Apply button to save the setups. Explanation Preset position is the cruise point of the cruise route, cruise path move from small to large according to ... -
Page 34: Motion Detection Recording
Wireless NVR Kit Manual Steps： 1, Right click on the main interface, select and click System Setup in the shortcut menu. 2, Click the recording setup, click the recording plan. As shown below: 3, Use the drop-down box to select the channel and week which need to set the timed recording. 4, Set the time period for the scheduled recording, check the timing checking box. -
Page 35: Alarm Recording
Wireless NVR Kit Manual Explanation If you need to set motion detection for other channels, repeat the above steps. The default sensitivity for video detection is "higher". 4.6.4 Alarm recording Function explanation ：Turn on the alarm recording function, the system will record when detecting the alarm input. -
Page 36: Video Playback
Wireless NVR Kit Manual 4.7 Video playback 4.7.1 Fast playback Function explanation：Open the fast playback function, the user can quickly retrieve the latest video data. Steps： 1. Right-click on the main interface and select Video Playback in the shortcut menu. 2. -
Page 37: Video Backup
Wireless NVR Kit Manual 3, Check the channel which need to be retrieved and the recording mode. 4, Set the search period and click the "Search" button. 5, Waiting about 30 seconds, in the retrieved video, drag the play bar to the point that you want to play 6, Click the Video Playback button. -
Page 38: Alarm
Wireless NVR Kit Manual 3, Check the channel you want to retrieve and select the recording mode. 4, Set the search period and click the "Search" button. 5, Waiting for about 30 seconds, the system search video data according to the requirement. 6, In the list box, using the left mouse button to select the video you want to backup, click the "video backup"... -
Page 39: Video Loss Alarm
Wireless NVR Kit Manual 3, Select motion for the type of detection, check to turning on the checking box. 4, Set the motion detection sensitivity. 5, Select the alarm duration, check the motion detection processing method, select the arming time and alarm area 6, Click the "Apply"... -
Page 40: General Setups
Wireless NVR Kit Manual 4, Set the alarm duration period, check the motion detection processing methods and arming time 5, Click the "Apply" button to save the setup. Explanation If the other channel setup are the same as the channel, select the channel and click "Copy to". ... -
Page 41: 2Time Setup
Wireless NVR Kit Manual The operation is explained in the table below： Operational target Explanation Select whether the system is automatically logged off without Automatic logout operation. Button sound Select whether to turn on the button sound of the control panel. Language selection Select the language of the different countries as needed. -
Page 42: Hard Disk Setup
Wireless NVR Kit Manual The operation is explained in the table below： Operational target Explanation Set the hue, brightness, saturation, and contrast of the Monitor adjustment graphics OSD transparency You can modify the transparency of the interface. VGA Resolution Select the resolution which adapt to the screen. Automatic cruise Whether to open the cruise and set the time Explanation... -
Page 43: Exception Setup
Wireless NVR Kit Manual 3, You can see all the information the device connected to the hard disk, including model, capacity, status, formatting status. 4, Select to check for automatic coverage as needed. 5, To format the hard disk, left-click to select the hard disk and click the Format button. 6, To delete the old file automatically, select "User-defined"... -
Page 44: Equipment Maintenance And Management
Wireless NVR Kit Manual 3, Select the exception type, click "Open", select the alarm mode. 4, Click "Apply" to save the setup. 4.11 Equipment maintenance and management 4.11.1 System message Version Information Function explanation：The user can check the device name, device model, device serial number, hardware version, software version, build time and other information. - Page 45 Wireless NVR Kit Manual Version information for our late maintenance has a very important significance, the user needs to provide the appropriate version information when need maintenance. Hard disk information Function explanation ： The user can check all the hard disk models the device has accessed, capacity, usage, status, total capacity, total consumption and total margin and other information.
-
Page 46: User Management
Wireless NVR Kit Manual Explanation Click on the next page to read the log. Log stored in the hard disk, the log information will be lost after the hard disk formatted. The time type is available: system start-up, system shutdown, system configuration revision, video, ... - Page 47 Wireless NVR Kit Manual Permission explanation： Video playback：You can retrieve and playback the recording data stored in the hard disk. Video backup：You can back up the video data that stored in the hard disk by usb flash disk. PTZ control：Control the direction of the movement, PTZ cruise. Output volume：Controls the audio output volume size.
-
Page 48: Restore To The Factory Setting
Wireless NVR Kit Manual 3, Re-edit the user's permissions. 4, Click the "OK" button to save the settings. Explanation Super users can not be edited. Change Password Steps： 1, Right click the main interface, in the shortcut menu, select the system setup, and then select the system management ->... -
Page 49: System Maintenance
Wireless NVR Kit Manual management -> factory setup. As shown below： 2, Check the option that need to restore factory setups and click the "Apply" button 3, Select the "OK" button in the prompt interface. 4.11.4 System maintenance Steps： 1, Right click the main interface, in the shortcut menu, select the system setups, and then select the system management ->... -
Page 50: Ipc Maintenance
Wireless NVR Kit Manual 2, Put the prepared firmware to the USB flash disk root directory and insert the USB flash disk into the USB port. 3, Click the USB storage device - System - Start. 4, In the progress bar you can see the progress of the system upgrade, waiting for the system upgrade is complete, the device will restart. -
Page 51: Introduction
Wireless NVR Kit Manual management -> IPC maintenance, as shown below. Click to refresh, you can search the current camera in the LAN. The searchable camera will show the current channel it in, the IP address port, and the current software version. -
Page 52: Lan Access
Wireless NVR Kit Manual 5.2 LAN access 5.2.1 Log in Specific steps are as follows： 1, Open the browser. 2, Enter the IP address of the NVR in the browser address bar: http: // IP address. For example, enter http://192.1.1.28. Go to the "login" interface, shown below： 3, Enter the user name and password correctly. -
Page 53: Preview
Wireless NVR Kit Manual Explanation Ip address can be checked in the system setup -> network setup. Support multiple users log in at different PC terminals. If the web page port number is modified (default is 80), when input IP address in the browser, you need ... -
Page 54: Playback
Wireless NVR Kit Manual Explanation Screen segmentation support 1,4,9,16,25,36 screen segmentation. Support the main stream, sub-stream selection. 5.2.3 Playback Specific steps： 1, Click the playback icon in the preview interface 2, Enter the playback interface, as shown below： 3, Set the search time and type, channel, click the "Search"... -
Page 55: E-See Net Access
Wireless NVR Kit Manual Explanation For the specific configuration functions, please refer to the system function introduction in this text. When a non-super user logs in, pls make sure that the user has remote configuration rights. You can view and assign the user to remote configuration rights in System Management ->... -
Page 56: Username Login
Wireless NVR Kit Manual Explanation Device ID can be set by the system setup -> network setup, check e-see net(P2P) check box to obtain. E-see net ID must be online to enable remote login. 5.3.2 Username login Function explanation ： User name login can resolve limitations that using e-see net user name can only manage single device. -
Page 57: Mobile Access
Wireless NVR Kit Manual Explanation Support Chinese and English language selection. 6.Mobile access Steps： 1, Software download. Method 1：Login to the website www.dvr163.com, click "support and download" "software download" to find "mobile client software" and download to the computer, then copy to the phone to install. Method 2：Directly using the phone to scan the above QR code, enter into download page, then download directly to the phone and install. - Page 58 Wireless NVR Kit Manual 2, After opening the software, as shown below： Notice： ● When the installation is complete at the first time, the login page will pop up. If there is no login account, you can register an account. After the account login, every time you open the software, it will direct into the device interface.
- Page 59 Wireless NVR Kit Manual password, you can skip), you can also click “local” to enter the mobile client to add equipment ● Choose “local” to experience, each time you re-open the software will first enter the login screen ● After logging in to the account, the device information will be saved on the server. When you log in to the account in another phone, the device will be displayed automatically.
- Page 60 Wireless NVR Kit Manual Description ● Up to 16 channels can be previewed at the same time ● support 4/6/8/9/13/16 screen split to preview at the same time ● If the PTZ control is supported, can use the PTZ control button to operate. 5, Remote playback.
- Page 61 Wireless NVR Kit Manual ● Remote playback can pull the vertical bar to select a specific period of time, click the channel to select a specific channel. ● Support 1 channel playback. ● If the video has a sound, the playback also with sound. ●...
-
Page 62: Appendix
Wireless NVR Kit Manual Explanation Need to use the account login, not using account login can not set the alarm Before adding a device, you need to set the alarm function in the app. A detailed reference, pls refer to ... -
Page 63: Video Required Capacity Calculation
8 Q & A: 1. Question: Why the screen goes black nothing after “TMEZON” logo displayed when you powered Answer: Please kindly try to match code for the cameras with your NVR. Here is a video link about https://youtu.be/F2Nr__dSewA... - Page 64 Wireless NVR Kit Manual 3. Question：Why my system cannot recognize Hard Drive? Answer: 1) Please check if you have used 12V2A power adapter for the NVR, normally, we use 12V2A adapter for NVR, 12V1A for cameras. You can also try to exchange your own adapter to test if it is the problem with the supply.
- Page 65 Wireless NVR Kit Manual 4) If all those solution don’t work with you, then we are afraid there might be a problem with the HDD, maybe you can try to install it into your computer to see if it can work fine with your computer. If not, then the HDD does have a problem.
- Page 66 Wireless NVR Kit Manual (2) Set the repeater function in the system： You can set the camera as a repeater, this will receive the signals from the farthest camera and pass it on to the NVR. This cascading helps you to extend a good radio range to 2-3 times the distance at no extra cost. (3) Install a additional wifi repeater: (we have 3m antenna extension cords like the picture)：...
- Page 67 1) Please check if you have use 12V2A adapter for the NVR, not the cameras’ 12V1A adapters. 2) Please remove the HDD in NVR, and restart the NVR to see if the problem with HDD 3) There is a problem with Version information, you need contact with our technical department with email: support@tmezon.com...
