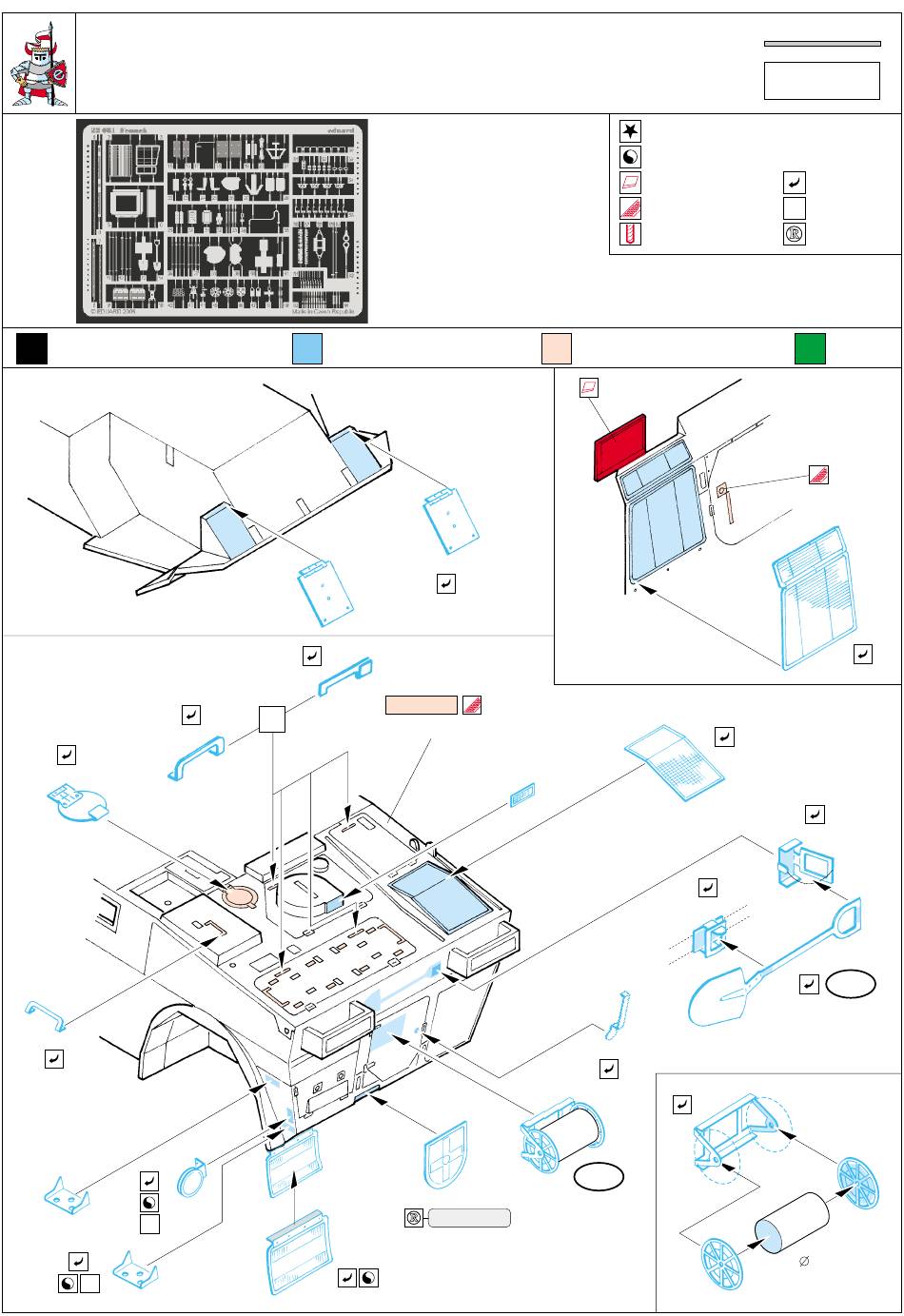

1/72 scale detail set for Revell kit No.03136 • sada detailù pro model 1/72 Revell 03136
ORIGINAL KIT PARTS
PÙVODNÍ DÍLY STAVEBNICE
Kit part 6
50
4 pcs
32
50
23
?
2 pcs
54
?
Fennek
PHOTO-ETCHED PARTS
LEPTANÉ DÍLY
28
2 pcs
55
4 pcs
?
Kit part 1
Kit part 23
9
PARTS TO BE REMOVED
DÍLY K ODSTRANÌNÍ
51
33
D
46
eduard
22 081
APPLY EXPRESS MASK AND PAINT BEFORE GLUING
POUŽÍT EXPRESS MASK NABARVIT PØED SLEPENÍM
SYMETRICAL ASSEMBLY
SYMETRICKÁ MONTÁŽ
REMOVE
BEND
ODSTRANIT
OHNOUT
GRIND
?
OPTION
OBROUSIT
VOLBA
REPLACE
DRILL HOLE
VRTAT OTVOR
NAHRADIT
Kit part 5
2
48
34
14
58
plastic
= 2,5mm
l = 4,5mm
45
22 081
FILL
TMELIT
3
D
45
Advertisement
Table of Contents
Related Manuals for Eduard Fennek
Summary of Contents for Eduard Fennek
- Page 1 22 081 Fennek eduard 22 081 1/72 scale detail set for Revell kit No.03136 • sada detailù pro model 1/72 Revell 03136 APPLY EXPRESS MASK AND PAINT BEFORE GLUING POUŽÍT EXPRESS MASK NABARVIT PØED SLEPENÍM SYMETRICAL ASSEMBLY SYMETRICKÁ MONTÁŽ REMOVE...
- Page 2 22 081 4 pcs 4 pcs 3 pcs Kit part 28 3 pcs Kit part 55 plastic = 0,4mm l = 2mm Correct position Kit part 47 Fill Kit part 27 Hull Kit part 46 Kit part 35 Kit part 33...
- Page 3 Kit part 39 Kit part 40 Kit part 41 Kit part 43 Kit part 36 2 pcs plastic = 0,5mm l = 2mm Plastic Kit part 42 Push References : www.Panzer-Modell.de © EDUARD M.A. 2005 Made in Czech Republic www.eduard.com...
