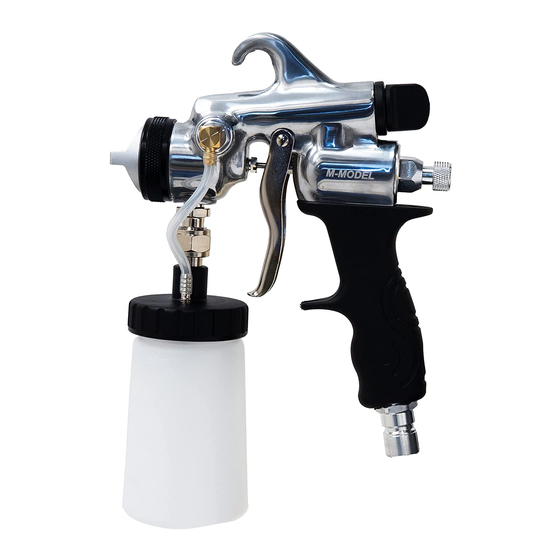

- Page 1 USER MANUAL soloTAN™ Series studioTAN™ Series (formerly miniTAN™) salonTAN™ Series...
-
Page 2: Table Of Contents
CONTENTS Model Details Safety Precautions 3 - 5 Getting Started 6 - 7 Parts Diagram 8 - 11 Spray Patterns 12 - 13 Spraying Techniques Cleaning and Maintenance 15 - 19 Troubleshooting 20 - 23 Warranty Information CE Declaration Back Cover... -
Page 3: Model Details
USER MANUAL Thank you for purchasing your Fuji Spray® Sunless Spray Tanning System. This product has been designed to provide an efficient application of tanning solution products. Please read this user manual to understand how to operate your Spray Tanning System and you will be able to accomplish a flawless tan with every application. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read these instructions carefully before using the equipment. GROUNDING This appliance must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. - Page 5 TOXIC FLUID OR FUMES HAZARD Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or swallowed. • Always wear appropriate gloves and eye protection. • Always wear a mask. Read all instructions of the respirator or mask to ensure that it will provide the necessary protection against the inhalation of harmful vapors.
- Page 6 EQUIPMENT MISUSE HAZARD Misuse of equipment can cause serious injury or death. • Do not operate or spray near children. Keep children away from equipment at all times. • Do not overreach or stand on an unstable support. Keep effective footing and balance at all times.
-
Page 7: Getting Started
GETTING STARTED HOSE CONNECTION Connect the end of the Hose (female connector) to the Turbine Air Outlet located on the front of the turbine. This is a simple threaded connector. Hand + tight is enough – it is not necessary to use a wrench. This must not be over tightened. - Page 8 GUN HOLDER INSTALLATION studioTAN™ and salonTAN™ The two holes on the top of the holder require the black screws and washers included with this hardware. These screws fit into Threaded Inserts in the Metal Case. Do not overtighten – snug is fine.
-
Page 9: Parts Diagram
T-PRO APPLICATOR... - Page 11 TAN7350 APPLICATOR...
-
Page 13: Spray Patterns
SPRAY PATTERNS On the 4000 and 4200 T-PRO Applicators, the Fan Pattern Control #10 is located on the front-right side of the Applicator (if looking from the front). To produce a wide fan pattern, turn Pattern Control Knob clockwise. For a smaller fan pattern, turn counterclockwise. Then go into adjusting fluid output in tandem. - Page 14 Setting the Aircap in a vertical position – diagram B on page 12 produces a horizontal spray pattern. This pattern is the most useful and simplest pattern shape for spray tanning. We recommend that you set and leave the Aircap in this position. For spray tanning, the general setting is about 4 inches wide from 6 inches distance away.
-
Page 15: Spraying Techniques
SPRAY TECHNIQUES When spraying, move the Applicator at a medium, steady speed, keeping the distance of the Applicator the same throughout the spray application. Always keep the solution cup as close to vertical as possible. Pointing the Applicator too far upwards on an angle may cause the liquid to cease flowing temporarily. -
Page 16: Cleaning And Maintenance
CLEANING AND MAINTENANCE Tanning solution should not be left in the Applicator’s cup overnight. It dries and hardens leaving a film throughout the fluid passages. Over time, the fluid passages can become clogged. To prevent this, spray soapy water through the Applicator periodically. Always keep the Applicator clean and dry for next spray. - Page 17 For a more thorough cleaning, remove the following parts: 4000 and 4200 T-PRO Applicators: • Remove the Fluid Knob #7, Spring #9, and Needle #8 from the rear of the Applicator. • At the front of the Applicator, remove Collar #1 and Aircap #2. •...
- Page 18 TAN7350 Applicator: • Remove the Fluid Knob #7, Spring #9, Needle #8 from the rear of the Applicator. • At the front of the Applicator, remove Collar #1 and Aircap #2. • Using the supplied wrench, remove the Fluid Nozzle #3. Once the Fluid Nozzle is removed, please be careful that the Air Diffuser does not fall out of the Applicator.
- Page 19 MAINTENANCE OF THE TURBINE The only maintenance required on the Turbine is the cleaning and replacing of the Filter(s). The Turbines have either one or two Filters. Remove based on the instructions below and wash the Filter in warm soapy water. Dry before replacing back in the Turbine. Cleaning your filters regularly is essential to maintaining your Turbine.
- Page 20 soloTAN™ Filter soloTAN™ PLATINUM Turbine filter: #7455 2) Pull the grill directly away from the 1) Pull the grip tabs on both sides of main unit to separate. the grill outwards to release it. 4) Clean and let dry or replace the 3) Carefully remove the foam filter foam filter, and replace it in the grill.
-
Page 21: Troubleshooting
TROUBLESHOOTING 1) Solution coming out from nozzle without Trigger engaged • Check and clean Fluid Nozzle #3. If damaged, it will require replacement • Check and clean the Needle #8. If damaged, it will require replacement The Needle Packing Nut may be too tight. It needs to be a bit loosened: 4000 T-PRO Gravity Applicator •... - Page 22 2) Leaking from Needle Packing Nut The Needle Packing Nut #13 may too loose. It needs to be tightened: 4000 T-PRO Gravity Applicator • Half fill the solution cup with water • Ensure that the Applicator is disconnected from the hose and the Turbine is switched off •...
- Page 23 5) Poor Spray Pattern • Damaged Needle #8 or Fluid Nozzle #3 – This will require replacement • Check Fluid Nozzle and Air Holes in Air Cap #2 – This will require cleaning • Applicator is being held too far from surface - max. 6 inches (15 cm) 6) Excessive overspray •...
- Page 24 10) Turbine keeps shutting off at the breaker switch • Check the Filter(s) is clean and in place properly • Check the Air Hose for any kinks that may restrict air flow • The Turbine is overheating due to over usage. Leave the Turbine off for a few minutes to cool down.
-
Page 25: Warranty Information
Fuji Spray® 2 Year Limited Warranty Fuji Industrial Spray Equipment Ltd. (“Fuji”) provides a 2 year limited warranty on the product to the original purchaser effective from the date of purchase against defects in materials and workmanship. The warranty does not cover damage or defects arising as a result of abuse, misuse, accident, negligence, malfunction, corrosion, normal wear and tear, inadequate or lack of spray gun or other aspects of maintenance of the product, damage arising from improper assembly,... -
Page 26: Ce Declaration
CE - DECLARATION OF CONFORMITY Manufacturer: Fuji Industrial Spray Equipment Ltd. 40 Magnetic Drive. #48 Toronto, ON M3J 2C4 Canada According to: 73/23/EEC Low Voltage Directive Declares that the product: HVLP Spray System Product name(s): HVLP Spray System Type Name: Turbine Model(s): Q3 Model, Q4 Model, Q5 Model... - Page 27 FUJI SPRAY® SUNLESS CONNECT WITH US! @FUJISPRAYSUNLESS @FUJISPRAYSUNLESS @FUJISPRAY NEED HELP? FUJISPRAY.COM FUJISPRAYSUNLESS.COM SUPPORT@FUJISPRAY.COM +1 (800) 650 0930 Fuji Industrial Spray Equipment Ltd. 40 Magnetic Drive, #48, Toronto, ON, Canada M3J 2C4...
