- Page 1 OPERATION MANUAL AND PART LIST VIBRATING BULLFLOAT TYPE DUOSCREED Lievers B.V. Holland Postbus 103 3640 AC Mijdrecht tel: +31 (0)297-231900 fax: +31 (0)297-231909 e-mail: info@lieversholland.nl www.lieversholland.nl © Copyright 4-2-2005, Lievers B.V. Holland...

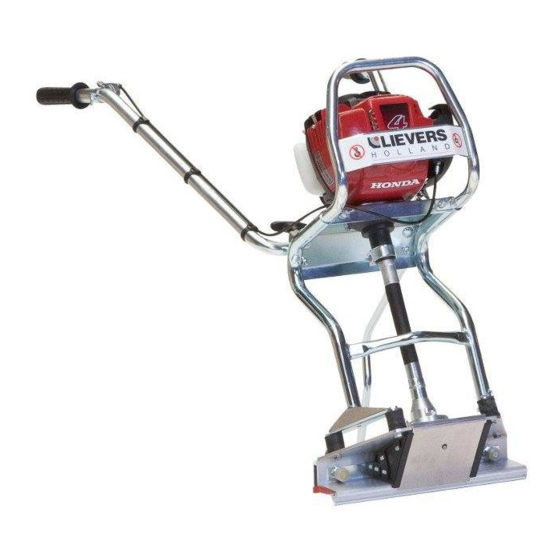

- Page 2 DUOSCREED Operation manual Figure 1 View of the most important components 1. Petrol engine 4. Vibrator 7. Lock, adjustable control handle 2. Operating handle 5. Quick disconnect system 8. Support 3. Throttle + cable 6. Alum. blade...
- Page 3 Bouwmachinefabriek Lievers B.V. Bouwmachinefabriek Lievers B.V. may not be held responsible for any guarantees or liabilities for the contents of this publication and points to, in this case, all implied securities for suitability of merchantability or any other purposes.
-
Page 4: Table Of Contents
INTRODUCTION What is a DuoScreed? Technical data OPERATION INSTRUCTIONS How to assemble the DuoScreed Operation and application of the DuoScreed (Petrol engine version) TROUBLE SHOOTING MAINTENANCE AND REPAIR Maintenance Cleaning and servicing of the DuoScreed with Petrol engine. Spare parts... -
Page 5: How To Use This Manual
This manual is intended for dealers and operators of the DuoScreed. The manual is divided into six chapters, so that you can easily find the information you require. The position and description of the most important parts of the DuoScreed can be found on the backside of the cover. FOREWORD The introduction gives information about the DuoScreed and describes how you can safely operate the DuoScreed. - Page 6 The following safety-aspects specifically apply to those Lievers products which are equipped with a petrol-engine. - Do not use the DuoScreed with petrol-engine indoors or in poorly ventilated places, such as pits etc. - Make sure that there is sufficient ventilation in spaces which are surrounded by walls.Never inhale exhaust gasses, they can damage your health and that of your colleagues.
- Page 7 DUOSCREED Operation manual It is strictly forbidden to refuel : * in the direct vicinity of open fire or other flammable materials, * while smoking cigarettes etc. * in explosion endangered spaces. Explanation of the used safety symbols Figure 2 Safety symbols 1 Read the instructionbook.
-
Page 8: Introduction
By rotating the power-unit 180 degrees the operator can choose between screeding, using forms/rails, or wet screeding (see figures 3 and 4) Figure 3 The DuoScreed in action as a wet screeder (wet screeding side in direction of arrow) -
Page 9: Technical Data
DUOSCREED Operation manual Figure 4 The DuoScreed in action as a form to form screeder (cutting side in direction of arrow) TECHNICAL DATA Technical data DuoScreed (see also the type plate in the annexe.) Type Alu blade length Drive unit... -
Page 10: Operation Instructions
ON position. Make sure that the fuel tank is filled. ( NO FUEL MIX!!) 8. In case the DuoScreed is used for form-to-form screeding make sure that the rail supports are set to the right level. - Page 11 When using a high slump concrete, move the DuoScreed faster across the surface of the concrete. 4. In case the DuoScreed is used as a wet screed it is recommended to first compact the freshly poured concrete with a poker vibrator while at the same time set the height of the floor by means of a laser device.
-
Page 12: Trouble Shooting
Increase the centrifugal force of the vibrator, (see figure 6 adjusting the centrifugal.force). NOTE:In the event you are using a DuoScreed with a petrol engine you can increase the centrifugal force by increasing the revolutions of the gasoline engine ( full throttle). - Page 13 DUOSCREED Operation manual Problem: The DuoScreed type with Petrol engine fails to start or runs irregularly. Cause: Insufficient fuel in the fueltank, The starting procedure was not executed in the proper way. A failure in the gasoline engine. Solution: Refill the fueltank, Read the operation instructions of the gasoline engine carefully and repeat the starting procedure.
-
Page 14: Maintenance And Repair
Only qualified personnel, familiar with the contents of this operation manual, allowed to carry out maintenance and repair jobs to the DuoScreed. After use store the DuoScreed in a clean, dry and dustfree place. Attention: concrete remnants could damage the quick disconnetor. -
Page 15: Spare Parts
Order number plus description of the part. · The required quantity. · The dispatch address and dispatch mode. Lievers B.V. declines all responsibility for the supply of incorrect spares due to incomplete or unclear requests. ENVIRONMENT Safe disposal Instructions for the protection of the environment. -
Page 16: Guarantee
DUOSCREED Operation manual GUARANTEE Guarantee provision All damages to parts of the DuoScreed which occur within 12 months from the date of purchase and are recognized as possessing manufacturing defects, will be replaced by the manufacturer as soon as possible. -
Page 17: Product Specifications
DUOSCREED Operation manual Product specifications System process concrete compaction, smoothing and leveling. Process Generating mechanical vibrations via petrol-engine. Noise production In open air max. 50 dB (A) Vibr.acceleration XX 5,39 m/s2 ISO 5349 Maintenance Cleaner; water (brush) Power consumption See technical specifications Working area •... - Page 18 DUOSCREED Operation manual DuoScreed with Honda petrol engine Figure 8 Exploded view of DuoScreed with Honda petrol engine...
- Page 19 Idem, but 4,27 mtr. = 14ft ,, 260048LW Idem, but 4,88 mtr. = 16ft ,, 0277 Self tapping screw M5x20 0129 Tapbolt M8x40 2614 Hinge bushing for excentric 0177 Nut M12 (fine) 2613 Clamping bush for excentric Table 2 Spare parts DuoScreed with Petrol engine...
- Page 20 Engine RPM. blocking bush excluding 0239 screw M3 * 16 2321H Switch bracket Honda GX-35 260075LW Lifting handle steel 0269 Socket head bolt M5 x 12 0206 Square nut M8 26061 Spring clip for eccentric cover Table 2 Spare parts DuoScreed with petrol engine.
