Use these instructions for the following round style mini garage:
©2006 ClearSpan™
All Rights Reserved. Reproduction is prohibited without permission.
Revision date: July 2006p
S
™ R
PAN
OUND
S
M
TYLE
INI

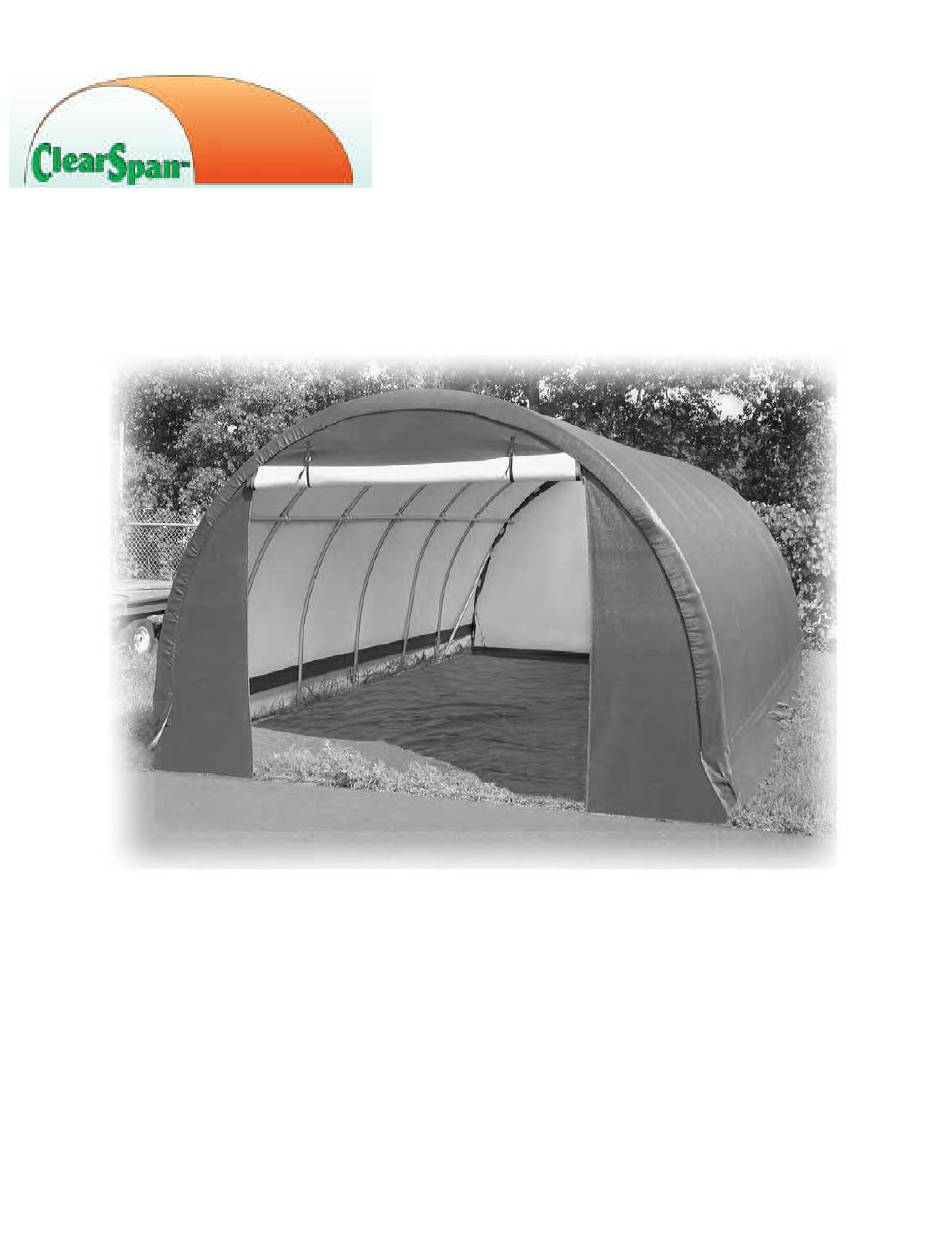

ClearSpan™ Round Style Mini Garage
G
ARAGE
SKU #PB02000R4N
10' Wide x 8' High x 18' Long
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ClearSpan PB02000R4N
Summary of Contents for ClearSpan PB02000R4N
- Page 1 ™ R LEAR OUND TYLE ARAGE ClearSpan™ Round Style Mini Garage Use these instructions for the following round style mini garage: SKU #PB02000R4N 10' Wide x 8' High x 18' Long ©2006 ClearSpan™ All Rights Reserved. Reproduction is prohibited without permission.
-
Page 2: Safety Precautions
Failing to anchor the shelter properly will void the manufacturer's warranty and may cause serious injury and damage. Visit www.ClearSpan.com for additional products and customer assistance. 1 of 12... -
Page 3: Assembly Procedure
The words and phrases below are common to most Tek Screw: A self-tapping fastener used to secure ClearSpan™ shelters and identify the different parts of pipe joints and to fasten brackets to rafters. the shelter. (Some are used in this document. Others Visit www.ClearSpan.com for additional products and customer assistance. -
Page 4: Gather Required Tools
Materials/Spec Sheet. If anything is missing or you have questions, consult the figures and all shelter diagrams for clarification or contact Customer Service. Zippered End Panel NOTE: Illustrations are not to scale. Visit www.ClearSpan.com for additional products and customer assistance. 3 of 12... - Page 5 Gather the Parts • Pipe 1.315" 10' Round Raft Position #1 (#10R1301) • Pipe 1.315" 10' Round Raft Position #2 (#10R1302) Figure 3. Tek Screw into Rafter at Connection Visit www.ClearSpan.com for additional products and customer assistance. 4 of 12...
-
Page 6: Assemble The Frame
1. Stand one end rafter (one with the band clamps attached) and brace it in place as shown in Figure 5. Check that the rafter is standing up Figure 7. Cross Connector Assembly Visit www.ClearSpan.com for additional products and customer assistance. 5 of 12... - Page 7 Gather the Parts • Measuring tape • Tek Screws (#FA4482B) Assembly Procedure 1. Square the frame by measuring diagonally corner-to-corner, and align all rafters as shown in Figure 9. Visit www.ClearSpan.com for additional products and customer assistance. 6 of 12...
- Page 8 With scissors, trim the corner of the end panel on the dotted line shown in Figure 11 so the short tee is exposed when it is placed inside the hem. Visit www.ClearSpan.com for additional products and customer assistance. 7 of 12...
- Page 9 Figure 14. Securing Fabric Clips 5. Secure the zippered end panel in place using fabric clips with Tek screws as you did on the plain end panel in Steps 1-4. Visit www.ClearSpan.com for additional products and customer assistance. 8 of 12...
- Page 10 Figure 16. NOTE: The ratchets are installed on only one side of the shelter because this model uses D-ring straps (installed later) on the opposite side of the shelter. Visit www.ClearSpan.com for additional products and customer assistance. 9 of 12...
- Page 11 1" wide D-ring strap over the conduit and through the two slits. Ropes Figure 19. Pulling Cover Over Frame Figure 20. Hem Slit and Strap Inserted in Slit Visit www.ClearSpan.com for additional products and customer assistance. 10 of 12...
- Page 12 For replacement or missing parts, call 1-800-245-9881 for assistance. NOTE: With the exception of Truss Arch buildings, ClearSpan™ shelters and greenhouses do not have any tested loading criteria. Figure 22. Feeding Strap Ends through Ratchet 15. Check that the cover is still centered evenly from front-to-back and side-to-side.
- Page 13 Customer Notes Visit www.ClearSpan.com for additional products and customer assistance. 12 of 12...
