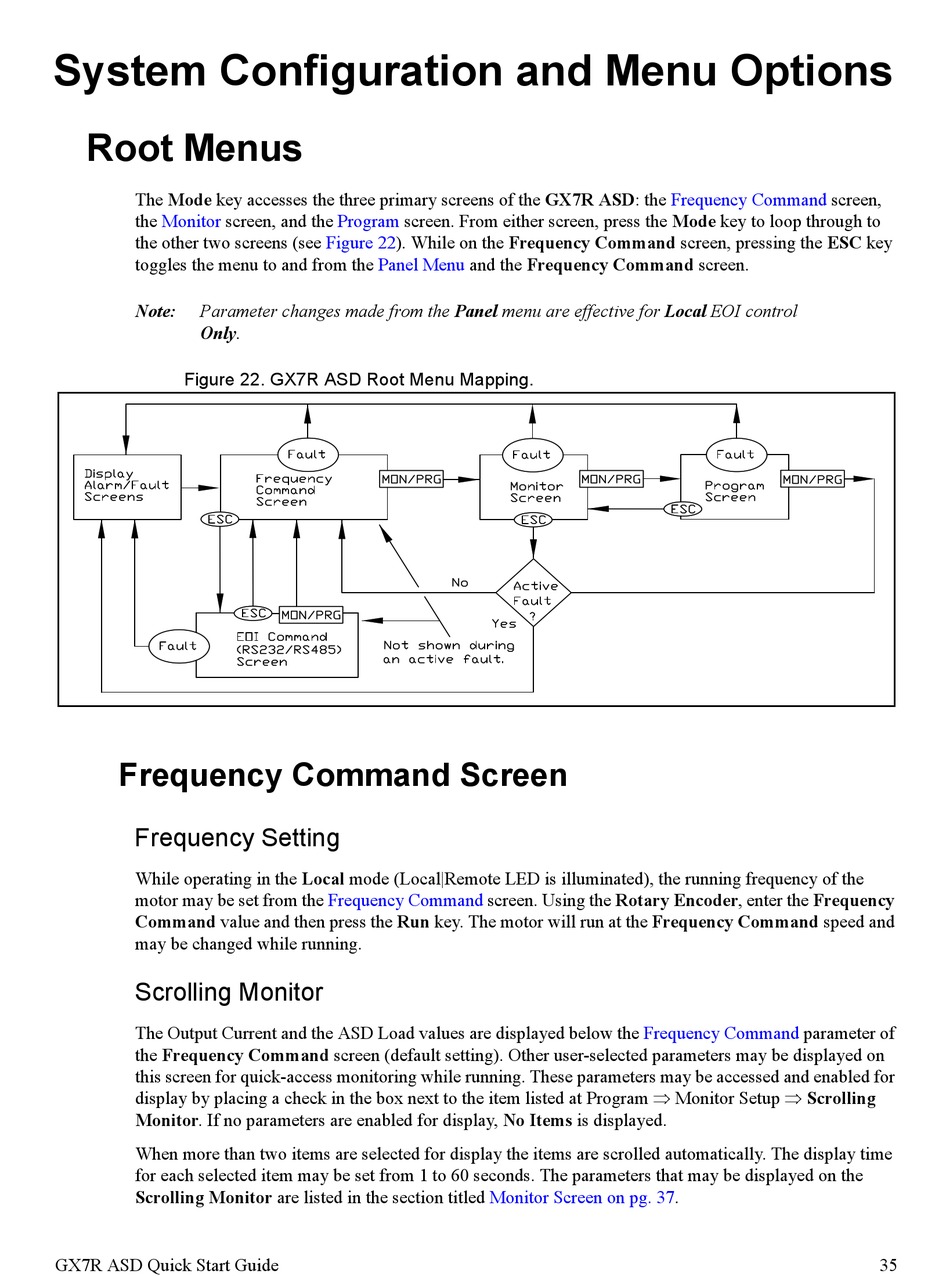

System Configuration and Menu Options

Root Menus

The Mode key accesses the three primary screens of the GX7R ASD: the
the Monitor screen, and the
the other two screens (see
toggles the menu to and from the
Note: Parameter changes made from the Panel menu are effective for Local EOI control
Only.
Figure 22. GX7R ASD Root Menu Mapping.

Frequency Command Screen

Frequency Setting
While operating in the Local mode (Local|Remote LED is illuminated), the running frequency of the
motor may be set from the
Command value and then press the Run key. The motor will run at the Frequency Command speed and
may be changed while running.
Scrolling Monitor
The Output Current and the ASD Load values are displayed below the
the Frequency Command screen (default setting). Other user-selected parameters may be displayed on
this screen for quick-access monitoring while running. These parameters may be accessed and enabled for
display by placing a check in the box next to the item listed at Program  Monitor Setup  Scrolling
Monitor. If no parameters are enabled for display, No Items is displayed.
When more than two items are selected for display the items are scrolled automatically. The display time
for each selected item may be set from 1 to 60 seconds. The parameters that may be displayed on the
Scrolling Monitor are listed in the section titled
GX7R ASD Quick Start Guide
Program screen. From either screen, press the Mode key to loop through to
Figure 22). While on the Frequency Command screen, pressing the ESC key
Panel Menu and the Frequency Command screen.
Frequency Command screen. Using the Rotary Encoder, enter the Frequency
Monitor Screen on pg.
Frequency Command
Frequency Command parameter of
37.
screen,
35
