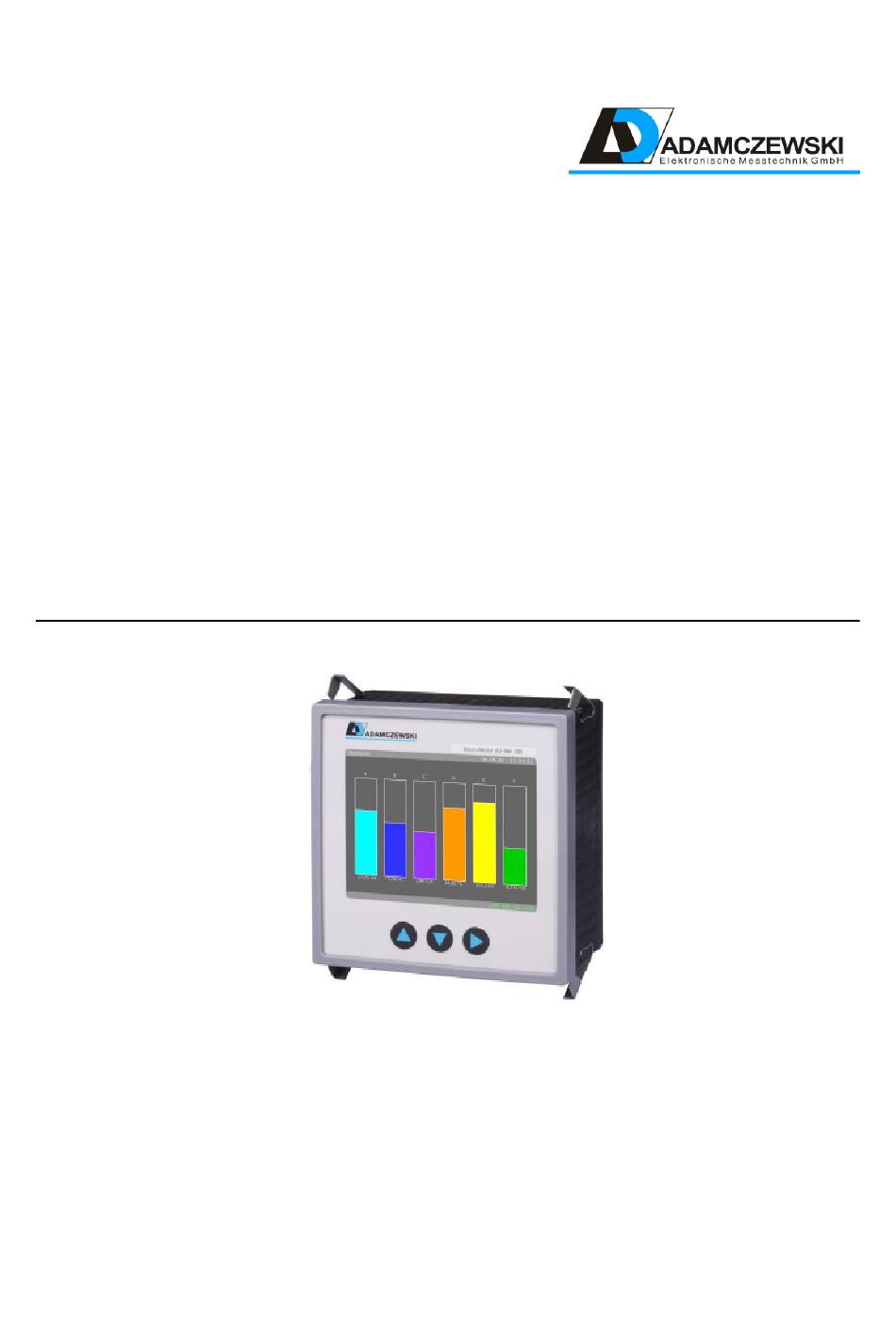

- Page 1 Display device, control unit and data logger AD-MM 500 FE Manual Version 1.0 / 2021-05-19...
-
Page 2: Table Of Contents
Adamczewski GmbH Manual AD-MM 500 FE Contents 1 About this manual 2 Safety 3 Product description 4 Technical data 4.1 Supply ......... -
Page 3: About This Manual
Adamczewski GmbH Manual AD-MM 500 FE 1 About this manual This manual is part of the product. Read the manual carefully before using the device. Keep the manual for the entire service life of the product and have it available for reference. -
Page 4: Safety
The AD-MM 500 FE can be connected to a PC or laptop via the configuration interface. The AD-MM 500 FE is intended for installation in front panels of control cabinets. The AD-MM 500 FE has a connection for the supply voltage and can be supplied with AC voltage up to 250V AC or 24V DC. - Page 5 Adamczewski GmbH Manual AD-MM 500 FE Protect product from shocks Use product indoors only Protect product from moisture Qualification of the staff Installation, commissioning, operation, maintenance, decommissioning and disposal may only be carried out by technically qualified personnel. Work on electrical parts may only be carried out by trained in accordance with the applicable regulations and directives.
-
Page 6: Product Description
The display is a 3.5” TFT display with graphics capability. The AD-MM 500 FE can be connected via its RS-485 interface to one or more units of the ADAM- CZEWSKI elektronische Messtechnik GmbH or to units of other manufacturers. Any data from these devices can be displayed and/or logged to an internal SD memory card. - Page 7 VarioPass (option) USB adapter for configuration and firmware update of the AD-MM 500 FE . Display and operating elements The AD-MM 500 FE has a colour graphics-capable TFT display for showing the data and three buttons for operation and configuration.
-
Page 8: Technical Data
Adamczewski GmbH Manual AD-MM 500 FE 4 Technical data 4.1 Supply Name Value Supply voltage 20 ... 253 V AC/DC Max. Power consumption 2.0W / 4.0VA 4.2 Housing Name Value Dimensions (WxHxD) 96x96x63 mm Panel cut-out 92x92 mm Protection class front cover... -
Page 9: Rs485-Interface
Adamczewski GmbH Manual AD-MM 500 FE 4.6 RS485-Interface Name Value Connector 3-pin socket 3.81mm pitch Standard RS-485 Function Modbus Master Protocol Modbus-RTU Max. Number of participants Max. Bus length 100 m Bus termination 120 Ohm (both ends at bus end) 4.7 Configuration interface... -
Page 10: Assembly And Commissioning
Adamczewski GmbH Manual AD-MM 500 FE 5 Assembly and commissioning Electrical connection The terminals of the auxiliary voltage inputs are dangerous to touch Disconnect the mains voltage and secure it against reconnection. Ensure that the connections are protected against accidental contact. -
Page 11: Operation And Menu Navigation
Adamczewski GmbH Manual AD-MM 500 FE 6 Operation and menu navigation 6.1 Key functions The menu is controlled by the three keys ’Up’, ’Down’ and ’Set’, see chapter 3. The following abbreviations apply to the key functions: up Press the ’Up’ key briefly. -
Page 12: Normal Operation
The simulation of an input of a slave can be executed Since the AD-MM 500 FE often accesses the connected slaves to display the data as well as in the main menu, there is a higher-level error monitoring of the master-slave data traffic. If an error is detected, the status is immediately branched to. -
Page 13: Scroll Display
Display-- Display++ Figure 6.2: Scrolling the displays of the AD-MM 500 FE manually or automatically The displays can be scrolled up and down either manually with the ’Up’ and ’Down’ keys, as shown in the image 6.2, or automatically time-controlled. When starting, you can first scroll through with ’up’... -
Page 14: Main Menu
Figure 6.3: Main menu of the AD-MM 500 FE The main menu is used to access a slave on the one hand and to make settings on the AD-MM 500 FE or perform device functions on the other. Settings for the AD-MM 500 FE can be made under Options 6.4.1 Select slave and function... - Page 15 Select slave the slave menu. The AD-MM 500 FE now fetches all the data it needs to Select function display the menu from the slave. The image 6.4 shows how to navigate in the slave menu, edit parameters and execute device functions.
- Page 16 Then select in the menu Slave simulation Select funktion The AD-MM 500 FE now fetches the available simulation channels from the slave and displays them in the menu. Only one simulation channel can be selected Select simulation channel and edited at a time. If a slave offers several simulation channels, all other channels will continue to be recorded as analog inputs.
-
Page 17: Options
Optionen User. Here you can choose between ’Admin’ and ’Standard’. Depending on the user set- ting, certain data and functions of the AD-MM 500 FE and also of the slave are not or only partially accessible. Language. The menu language for the AD-MM 500 FE and also the slave menu can be selected here. -
Page 18: Configuration
The information in this chapter refers to the configuration of the AD-MM 500 FE with the Config- uration program AD-Studio . All the designations used can be found there. The configuration of the parameters via the menu of the AD-MM 500 FE is not possible due to the large number of parameters. - Page 19 Adamczewski GmbH Manual AD-MM 500 FE Parametername Default value Range Unit Log mode Continuous Continuous, Hysteresis, Window, Trend Rising, Trend falling, Trend equal, Interval once, Interval daily, Start time continuous Trigger channel 1 ... 32 Limits 0.0...1.0 float range trigger chan- Trend delta 1E-6...1E6...
- Page 20 Adamczewski GmbH Manual AD-MM 500 FE The hysteresis function is enabled when the trigger channel value exceeds the upper limit. It is deactivated when the value falls below the lower limit. Window-triggered logging If the trigger condition is to be done by a window function, the following parameters must be set.
-
Page 21: Displays
Logging takes place if the current time is after the start time. 7.2 Displays The AD-MM 500 FE can show up to 10 displays. These can be scrolled through either manually with the ’up’ and ’down’ keys or automatically with a timer. A display can show up to twelve display elements. -
Page 22: Display Elements
= 3 means that for the fifth display element of display two the third display element should be displayed. The AD-MM 500 FE does not contain default values for a specific device and must always be set up for the application. This can be done by the customer or in consultation with ADAMCZEWSKI elektronische Messtechnik GmbH . - Page 23 Adamczewski GmbH Manual AD-MM 500 FE Parametername Default value Range Unit Color change function off, Hysteresis, Window Setpoints[N] 0 ... 1 float ’unit’ Labelposition[N] left left, right, top, bottom Top[N] 5 ... 235 pixel Left[N] 5 ... 315 pixels Height[N] 10 ...
- Page 24 Adamczewski GmbH Manual AD-MM 500 FE Displayrand Links Breite Bezeichnung, Position 12,345 Füllstand Einheit Standardfarbe, Alternativfarbe, Dezimalstellen Figure 7.3: Representation as numerical display The following parameters are additionally available for configuring the numerical display. Parametername Default value Range Unit Font size...
- Page 25 Adamczewski GmbH Manual AD-MM 500 FE Displayrand Links Bereichsende Oberer Schaltpunkt Füllstand Unterer Schaltpunkt Label, Position Bereichsanfang Standardfarbe, Alternativfarbe, Figure 7.4: Representation as bargraph The following parameters are additionally available to configure the display as a bargraph. Parametername Default value...
- Page 26 Adamczewski GmbH Manual AD-MM 500 FE Displayrand Label, Position Pumpe 1 Links Durchmesser Figure 7.5: Representation as LED So that a color change can take place in the LED at all, one of the color change functions MUST be selected. If only an activated operating state is to be signaled, the standard color and alternative color can be selected accord- ingly, e.g.
-
Page 27: Channels
In the case of the drag pointer display, the min and max values since the last time the drag pointer was reset or the restart of the AD-MM 500 FE are displayed. The drag pointer can be reset via the main menu of the AD-MM 500 FE . The values for determining the minimum and maximum values are always determined automatically from all channels that are queried. - Page 28 Adamczewski GmbH Manual AD-MM 500 FE With this settings the AD-MM 500 FE fetches every 10s a floating point value from modbus slave 2 at address 41120. Floating point numbers (single or float) according to IEEE 754 are 4 bytes, so 2 Modbus registers are read.
-
Page 29: Modbus
Adamczewski GmbH Manual AD-MM 500 FE 8 Modbus The AD-MM 500 FE basically works as a Modbus master on its RS-485 interface. The operating mode as Modbus slave is not intended for the AD-MM 500 FE . RS-485 Interface parameters The RS-485 interface works with the following settings as standard. - Page 30 Adamczewski GmbH Manual AD-MM 500 FE RL Register Lowbyte RCH Registercount Highbyte RCL Registercount Lowbyte BC Bytecount D0H Dataword 0 Highbyte D0L Dataword 0 Lowbyte DNH Dataword n Highbyte DNL Dataword n Lowbyte CRCL 16-Bit CRC Lowbyte CRCH 16-Bit CRC Highbyte Read Holding Registers This function is used to read one or more registers.
- Page 31 Slave Funk. reg. reg. Anzahl Anzahl High High High 0x10 If there is an error, the AD-MM 500 FE replies with an error message: Exception Slave Fehlercode Exception CRC Low CRC High 0x90 siehe 8 Exception Codes If the request is incorrect, the slave responds with a Error telegram and one of the following exception codes.
-
Page 32: Wiring Diagrams
RS-485 B M202, 3 RS-485 Ground M203 3mm Jack for Variopass M201 USB socket type A for USB stick M201 M203 M202 M301 PCB1 Figure 9.1: Pin assignment of the AD-MM 500 FE . Rear view. 32 / 36 1.0 2021-05-19... - Page 33 Adamczewski GmbH Manual AD-MM 500 FE RS-485 The figure 9.2 shows the configuration of the RS-485 interface with several participants in a Modbus segment according to the specification ’Modbus over serial line’. Figure 9.2: RS-485 with several bus participants ITr Twisted, shielded cable must be used as a bus cable...
-
Page 34: Appendix
E-Mail: info@ad-messtechnik.de Internet: www.adamczewski.com Maintenance and repair The AD-MM 500 FE is maintenance-free during normal operation. In the event of damage, the device may only be repaired by the manufacturer. Disruptions If an error or a malfunction occurs, first try to find the cause. If the error persists, please contact the manufacturer or dealer of the device you can find in chapter 10. - Page 35 Adamczewski GmbH Manual AD-MM 500 FE SD-Karte 1234567 1234567.log 20201201.csv 20201202.csv 20201203.csv 20201204.csv Figure 10.1: File system on the SD card The daily files have the following structure: headline ’Timestamp;channel1;...;channel32 ’ ’Timestamp’ is the date and time in the format ’DD.MM.YYYY HH:MM:SS’.
- Page 36 Adamczewski GmbH Manual AD-MM 500 FE Table 10.1: Storage requirement in GB/a depending on the log interval and number of channels Log interval[s] 1,85 2,14 2,44 2,73 3,91 5,08 6,26 7,43 8,61 9,78 10,96 0,93 1,07 1,22 1,37 1,95 2,54...
