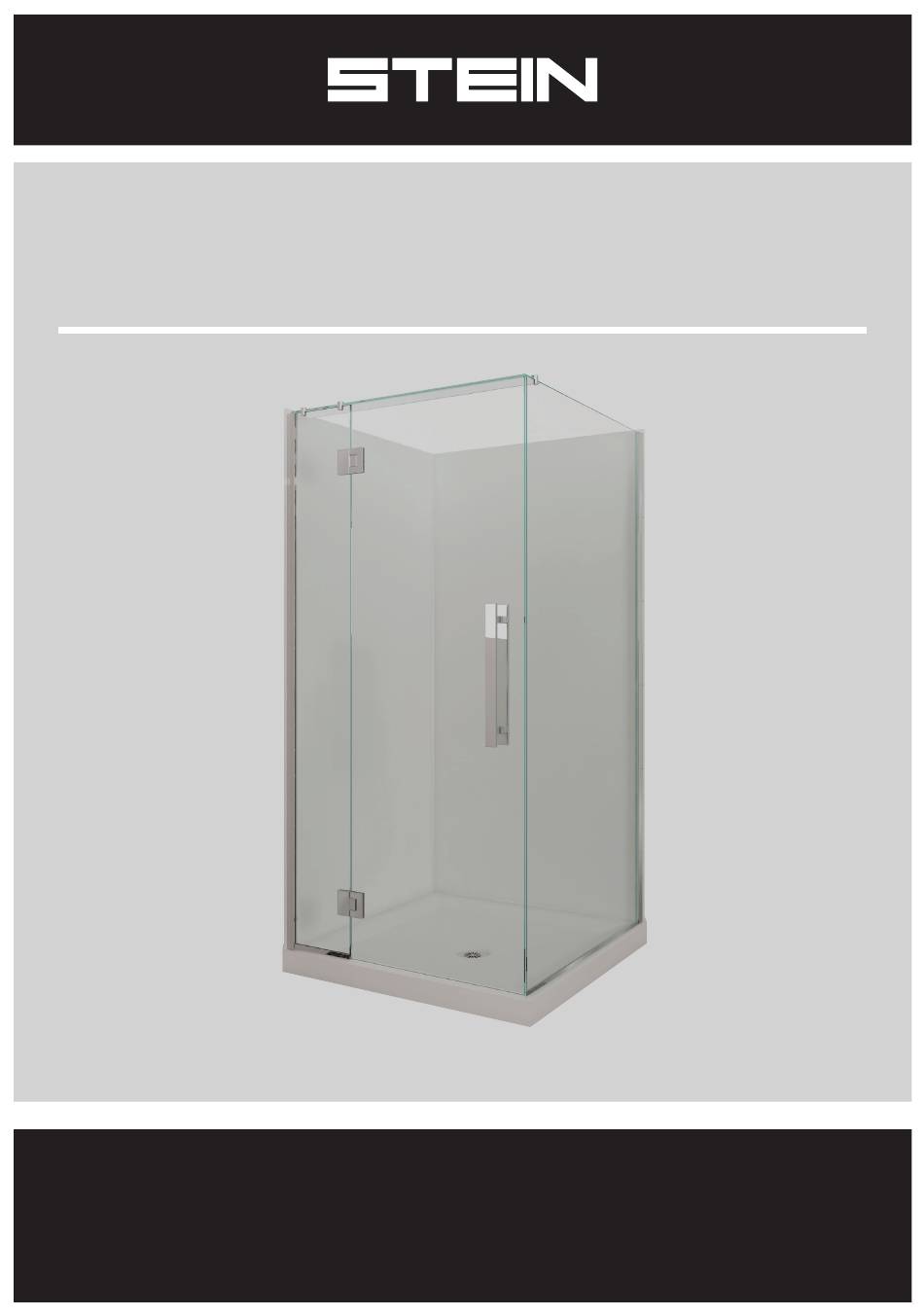

- Page 1 NOV 2020 IMPORTANT! 1. When you receive your Project Shower package please check for any freight damage. 2. If damage has occurred advise your supplier within 8 hours. 3. Do not install any faulty product as this will invalidate later claims.
-
Page 2: Warranty
PROJECT FRAMELESS SHOWER 2-SIDED WARRANTY • This covers faulty product. Check www.stein.co.nz for full details of warranty. • Any breakage on site will not be covered. • The installation must conform to the instructions for the warranty to apply. HEALTH & SAFETY •... -
Page 3: Assembly Diagram
ASSEMBLY DIAGRAM Before commencing installation, please ensure you have the following components in your package to complete installation. [18] REF DESCRIPTION PART NO. QTY REF DESCRIPTION PART NO. Screws M4x35 PAR1036 Threshold Waterbar with 3M Tape PAR1217 Wall Channels PAR1027 Water Deflector PAR1214 Return Panel... - Page 4 2-SIDED ACRYLIC INSTALLATION STEP 1 BEFORE YOU START: Decide on the two Door-Set Layout options offered. OPTION 1: Standard version is outlined in these instructions from page 4 to 9. OPTION 2: This varies from standard option using vertical seals either side of the door. The door gaps will be 4mm wider than standard version.
- Page 5 FLOOR CHANNELS INSTALLATION STEP 2 1. Floor channel line is 1mm in from wall channel. 2. Temporally place the return panel floor channel in position, cut waterbar to 605mm to mark out panel hinge panel floor channel outer point (Diagram B). DIAGRAM B Self adhesive blocks Outer Floor...
-
Page 6: Installation
FIXED GLASS PANEL FITTING DETAILING INSTALLATION Check you have glass panels up the right way (refer Diagram F). The specifications for glass vertical aluminium profile is 4mm below the glass. Standard packing under the glass is 2mm but analyse your requirements. Height Adjustment at wall To reduce height from 2mm packing also needs trimming the bottom of vertical profile this amount (Standard past glass is 4mm). - Page 7 FINAL PLACEMENT OF FIXED GLASS PANELS TO CHANNELS INSTALLATION STEP 4 1. Apply silicone along the inside of the floor channel (Diagram G2). Ensure the build is enough to seal and bond the glass to the inside of channel with a moderate excess. Do not overfill. 2.
-
Page 8: Door Installation
GLASS TOP SUPPORT PANEL INSTALLATION STEP 6 Glass Support Panel Fitting 1. Position the three glass clamps as in Diagram I. 2. The clamp on the return glass must be positioned back for door clearance. 3. Ensure these are tight and adjusted to door opening measurement. DIAGRAM INSTALLATION STEP 7 DOOR INSTALLATION... - Page 9 1. Silicone seal boundary joints as indicated including detailing of corners. SCREENS THAT ARE SEALED ON THE INSIDE WILL VOID WARRANTY UNLESS INDICATED OTHERWISE IN THIS MANUAL. DIAGRAM K Seal detail for both wall/corners CONTACT Freephone: 0800 002 299 Phone: 07 928 9990 Email: info@stein.co.nz www.stein.co.nz...
- Page 10 VERTICAL DOOR SEALS APPENDAGE PAGE Variation to standard installation: If surrounds adjacent to shower enclosure are not designated a ‘”Wet Area”, we have provided vertical seals for each side of the door (Regulating authorities will dictate requirements in your region). This required change must be understood and applied at the outset.
