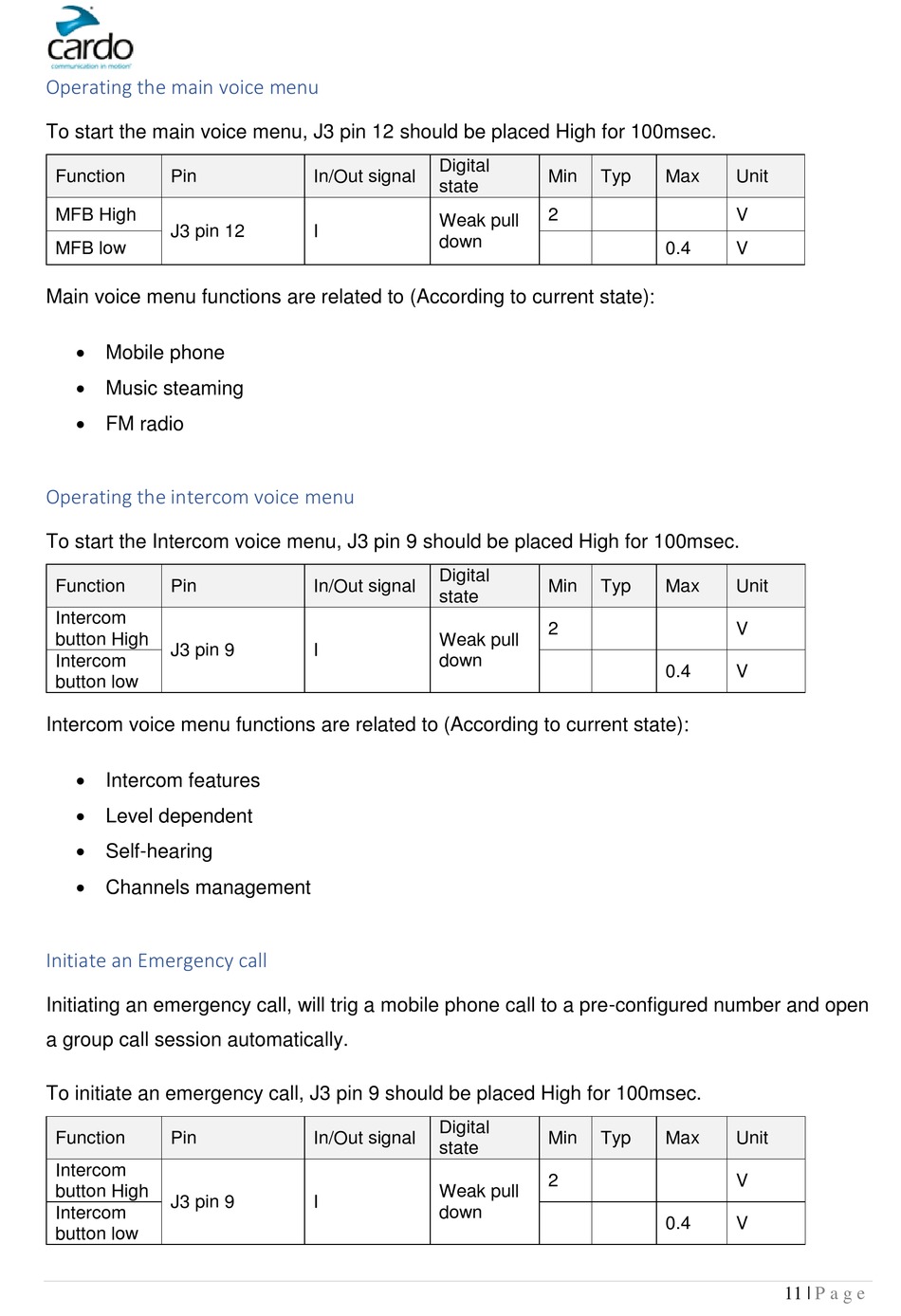

Operating the main voice menu

To start the main voice menu, J3 pin 12 should be placed High for 100msec.
Function Pin
MFB High
J3 pin 12
MFB low
Main voice menu functions are related to (According to current state):
 Mobile phone
 Music steaming
 FM radio

Operating the intercom voice menu

To start the Intercom voice menu, J3 pin 9 should be placed High for 100msec.
Function Pin
Intercom
button High
J3 pin 9
Intercom
button low
Intercom voice menu functions are related to (According to current state):
 Intercom features
 Level dependent
 Self-hearing
 Channels management

Initiate an Emergency call

Initiating an emergency call, will trig a mobile phone call to a pre-configured number and open
a group call session automatically.
To initiate an emergency call, J3 pin 9 should be placed High for 100msec.
Function Pin
Intercom
button High
J3 pin 9
Intercom
button low
Digital
In/Out signal
state
Weak pull
I
down
Digital
In/Out signal
state
Weak pull
I
down
Digital
In/Out signal
state
Weak pull
I
down
Min Typ Max
2
0.4
Min Typ Max
2
0.4
Min Typ Max
2
0.4
Unit
V
V
Unit
V
V
Unit
V
V
11 | P a g e
