Stenner Pumps S Series Quick Start Manual

S SERIES PERISTALTIC METERING PUMP
IMPORTANT SAFETY INSTRUCTIONS
When installing and using this electrical equipment, basic safety precautions should always be followed, including the following:
READ AND FOLLOW ALL INSTRUCTIONS
W RNING
TO BE INSTALLED AND MAINTAINED BY PROPERLY TRAINED PROFESSIONAL INSTALLER ONLY. READ MANUAL &
LABELS FOR ALL SAFETY INFORMATION & INSTRUCTIONS.
W RNING Warns about hazards that CAN cause death, serious personal injury, or property damage if ignored.
W RNING ELECTRIC SHOCK HAZARD
W RNING RISK OF ELECTRIC SHOCK
Connect only to a branch circuit protected by a ground-fault circuit-interrupter (GFCI). Contact a qualified electrician if you cannot verify
that the receptacle is protected by a GFCI.
RISQUE DE CHOC ELECTRIQUE
Brancher seulement à un réseau électrique protégé par un DDFT. Contactez un électricien certifié si vous ne pouvez pas vérifier que la
prise est protégé par un DDFT.
PELIGRO PELIGRO DE DESCARGA ELECTRICA
Conecte a un circuito en derivación protegido por un interruptor de descarga a tierra (GFCI). Contacte a un electricista certificado si no
puede verificar que su receptáculo esté protegido por dicho interruptor (GFCI).
W RNING
To reduce the risk of electric shock, replace damaged cord immediately. Contact the factory or an authorized service facility
for repair.
W RNING
DO NOT alter the power cord or plug end. DO NOT use receptacle adapters.
W RNING DO NOT use pump with a damaged or altered power cord or plug. Contact the factory or authorized service facility
for repair.
W RNING
After installation, the power supply plug must be accessible during use.
W RNING To reduce the risk of injury, do not permit children to use this product. This appliance is not to be used by persons with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
W RNING
This pump has not been investigated for use in marine areas.
La pompe n'a pas été vérifiée et approuvée pour utilisation sur des applications de installation marine.
PELIGRO
Este dosificador no ha sido investigado para uso en áreas marinas.
W RNING
EXPLOSION HAZARD
This equipment IS NOT explosion proof. DO NOT install in an explosive environment.
W RNING
RISK OF CHEMICAL EXPOSURE AND OVERDOSE
Potential for chemical burns, fire, explosion, personal injury, or property damage. To reduce risk of exposure, the use of proper personal
protective equipment is mandatory. To reduce risk of overdosing, follow proper installation methods and recommendations. Check your
local codes for additional guidelines.
W RNING
RISK OF FIRE HAZARD
DO NOT install or operate on any flammable surface.
W RNING
Pump is not recommended for installation in areas where leakage can cause personal injury or property damage.
C UTION Warns about hazards that WILL or CAN cause minor personal injury or property damage if ignored.
C UTION To reduce risk of electric shock, pull plug before servicing this pump.
C UTION
This pump has been evaluated for use with water only.
C UTION
Non-submersible pump. Suitable for indoor and outdoor use.
TTENTION Pompe non submersible. Adaptée à une utilisation aussi bien à l'intérieur qu'à l'extérieur.
CUID DO
Dosificador no sumergible. Adecuado para el uso interior y exterior.
C UTION PLUMBING
Chemical feed pump installation must always adhere to your local plumbing codes and requirements. Be sure installation does not
constitute a cross connection. Check local plumbing codes for guidelines.
C UTION Electrical installation should adhere to all national and local codes. Consult licensed professional for assistance with proper
electrical installation.
C UTION
Pump uses a class 2 switching power supply.
SAVE THESE INSTRUCTIONS
NOTICE: Indicates special instructions or general mandatory action.
This metering pump is portable and designed to be removable from the plumbing system without damage to the connections.
This metering pump and its components have been tested for use with the following chemicals; Sodium Hypochlorite (10-15%),
Muriatic Acid (20-22 Baume, 31.5% Hcl), and Soda Ash.
Cette a pompe de dosage et ses composants ont été testés pour utilisation avec les produits chimiques suivants; Hypochlorite de Sodium
(solution de 10-15%); Acide Muriatique (20-22 Baume, 31.5% Hcl); Cendre de Soude.
Before installing or servicing the pump, read the pump manual for all safety information and complete instructions. The pump is designed
for installation and service by properly trained personnel.
No user replaceable parts inside.
Do not install at altitudes over 2000 meters.
Read all safety hazards before installing or servicing the pump.The pump is designed for installation and service by properly trained personnel.
Use all required personal protective equipment when working on or near a chemical metering pump.
Install the pump so that it is in compliance with all national and local plumbing and electrical codes.
Use the proper product to treat potable water systems, use only chemicals listed or approved for use.
Inspect tube frequently for leakage, deterioration, or wear. Schedule a regular pump tube maintenance change to prevent chemical
damage to pump and/or spillage.
Recommended mounting is vertical with pump head pointed downward.
This information is not intended for specific application purposes. Stenner Pump Company reserves the right to make changes to prices, products, and specifications at any time without prior notice.
S T E N N E R P U M P C O M P A N Y
GENERAL INFORMATION

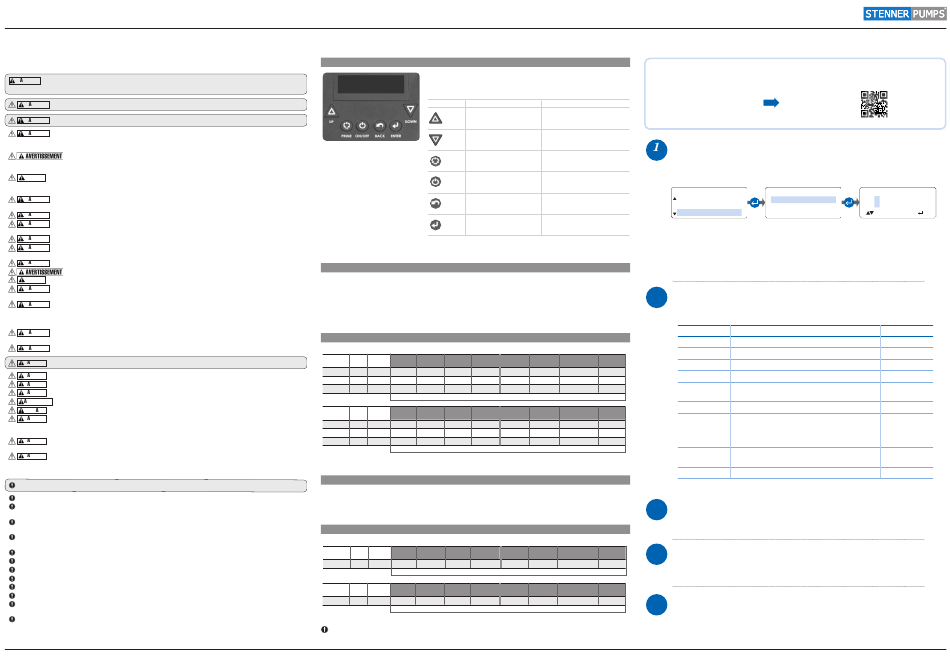

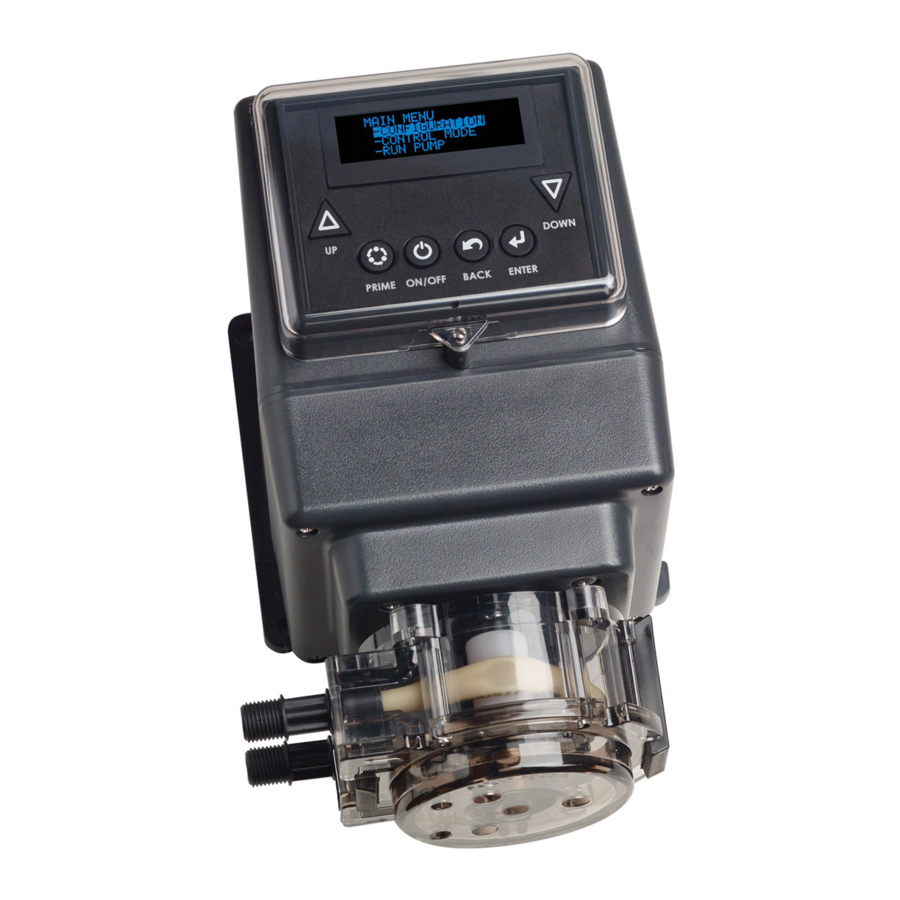

CONTROL PANEL

NAVIGATION BUTTONS

MAIN MENU

- CO NFIGURAT ION
The pump is controlled with 6 buttons. The chart indicates the function of each button on the
- CO NTROL MOD E
control panel.
- RU N PUMP
BUTTON GENERAL FUNCTION
• Moves up in a menu
UP • Toggles between menu options
• Increases a value
• Moves down in a menu
DOWN • Toggles between options
• Decreases a value
PRIME N/A
ON/OFF N/A
Moves one step back in a menu
BACK
when permitted
ENTER Sets a value
S SERIES PUMP S30 Models
ACCESSORIES
3 Connecting nuts 1/4" or 3/8" 1 Additional pump tube
3 Ferrules 1/4" or 6 mm Europe 2 Additional latches
1 Injection fitting 25 psi (1.7 bar) max. 1 Mounting bracket
or Injection check valve 100 psi (6.9 bar) max.
1 Quick Start Guide
1 Weighted suction line strainer 1/4", 3/8" or 6 mm Europe
Download complete S Series Manual www.stenner.com
1 20' Roll suction/discharge tubing
1/4" or 3/8", white, UV black or 6 mm white Europe

FLOW RATE OUTPUTS

25 psi (1.7 bar) maximum
Item Number Pump Turndown Gallons Gallons Ounces Ounces
Prefix Tube Ratio per Day per Hour per Hour per Minute
S3003 3 100:1 0.40–40.0 0.017–1.67 2.13–213.0 0.036–3.56 1.51–151.0 0.063–6.31
S3004 4 100:1 0.60–60.0 0.025–2.50 3.20–320.0 0.053–5.33 2.27–227.0 0.095–9.46
S3005 5 100:1 0.85–85.0 0.035–3.54 4.53–453.0 0.076–7.56 3.22–322.0 0.134–13.41 134.07–13407.0 2.23–223.0
Approximate Outputs @ 50/60Hz
100 psi (6.9 bar) maximum
Item Number Pump Turndown Gallons Gallons Ounces Ounces
Prefix Tube Ratio per Day per Hour per Hour per Minute
S3001 1 100:1 0.05–5.0 0.002–0.21 0.27–27.0 0.004–0.44
S3002 2 100:1 0.17–17.0 0.007–0.71 0.91–91.0 0.015–1.51
S3007 7 100:1 0.40–40.0 0.017–1.67 2.13–213.0 0.036–3.56 1.51–151.0
Approximate Outputs @ 50/60Hz
S SERIES PUMP S40 Models
ACCESSORIES
3 Connecting nuts 3/8" 1 Additional pump tube
1 Injection ball check valve 1 Mounting bracket
1 Weighted suction line strainer 3/8" 1 Quick Start Guide
1 20' Roll suction/discharge tubing 3/8", white or UV black
Download complete S Series Manual www.stenner.com
FLOW RATE OUTPUTS
25 psi (1.7 bar) maximum
Item Number Pump Turndown Gallons Gallons Ounces Ounces
Prefix Tube Ratio per Day per Hour per Hour per Minute
S405X 5X 100:1 1.5–150.0 0.06–6.25 8.0–800.0 0.13-13.33
Approximate Outputs @ 50/60Hz
100 psi (6.9 bar) maximum
Item Number Pump Turndown Gallons Gallons Ounces Ounces
Prefix Tube Ratio per Day per Hour per Hour per Minute
S407X 7X 100:1 0.6–60.0 0.03–2.50 3.2–320.0 0.053–5.34
Approximate Outputs @ 50/60Hz
NOTICE: The information within this chart is solely intended for use as a guide.The output data is an approximation based on pumping water under a controlled testing environment. Many
variables can affect the output of the pump. Stenner Pump Company recommends that all metering pumps undergo field calibration by means of analytical testing to confirm their outputs.
QUICK START GUIDE
IMPORTANT!
Refer to the S Series Manual for wiring & programming required for your specific application.
OPERATING MODE FUNCTION
Increases the speed percent
in the MANUAL mode
Decreases the speed percent
in the MANUAL mode
Mandatory Calibration
Runs pump at 100% speed
From the Configuration menu, select GPD/LPD Calibration, and enter your
while button is pressed
pump's ACTUAL maximum flow rate output. Refer to illustration below.
Turns pump control ON or OFF
WARNING: DOES NOT remove power

Configuration

Cycles the display through
- Units
the units of output and
- Clock
the control mode specific parameters

- Calibration

Press and hold for 2 seconds
to go to the MAIN MENU
IMPORTANT!
The pump's ACTUAL maximum flow rate entry:
・
Affects flow rate output displayed on the screen during operation in all modes.
・
Contributes to overall calculation of flow rate output in the PPM modes.
2
Program Applicable Pump Parameters
In Configuration menu, program applicable pump parameters, refer to chart below.

Pump Parameters

Display Brightness
Units
Liters Liters Milliliters Milliliters
per Day per Hour per Hour per Minute Clock
63.09–6309.0 1.05–105.0
Leak Detect
94.64–9464.0 1.58–158.0
Tube Timer
Password
Liters Liters Milliliters Milliliters
per Day per Hour per Hour per Minute

Relay Outputs

0.19–19.0 0.008–0.79 7.89–789.0 0.13–13.0
0.64–64.0 0.027–2.68 26.81–2681.0 0.45–45.0
0.063–6.31 63.09–6309.0 1.05–105.0

Signal Calibration

Reset Totalizer
3
Select Mode of Operation
In Control Modes menu, select your mode of operation.
4
Liters Liters Milliliters Milliliters
Program the Options
per Day per Hour per Hour per Minute
5.7–567.0 0.24–23.66 236.59–23659.0 3.94–394.0
In your selected control mode, program the options relevant to your application.
Liters Liters Milliliters Milliliters
per Day per Hour per Hour per Minute
5
2.3–227.0 0.09–9.46 94.64–9464.0 1.58–158.0 Run the Pump
For assistance, contact
The Quick Start Guide is a summarized overview for the initial set-up.
S Series Manual www.stenner.com or
Calibration Enter max pump flow

- GPD/LPD Calibration

_ _ 0.0 GPD
- Signal Calibration
- GO TO CONFIG MENU
adjust
Description
Optimal setting is < 50% for extended periods.
Default is Gallons; enter Liters, if preferred.
24-hr format. Enter current time of day and day of the week.
Calibrate sensitivity to distinguish between water & your chemical.
Enter number of hours you want pump to run before display
shows TUBE CHANGE.
Program a password to prevent unauthorized changes to pump settings. All
Three individual relays available; rated for 24VDC @ 50mA max.
Program communication for:
• S Series to back-up S Series
• S Series to another device
If factory settings are not sufficient, calibrate the pump using a
process meter or powered transmitter.
Option to reset the total tallied amount of water treated.
techsupport@stenner.com or 904.641.1666
Jacksonville, Florida USA www.stenner.com
© Stenner Pump Company All Rights Reserved
set

Control Mode

All
All
All
All
All
All
4-20mA, 0-10VDC
Pulse, Hall Effect, PPM
or 800.683.2378.
INSSQS 080119a
