Summary of Contents for Milwaukee REDLITHIUM L4 3PL

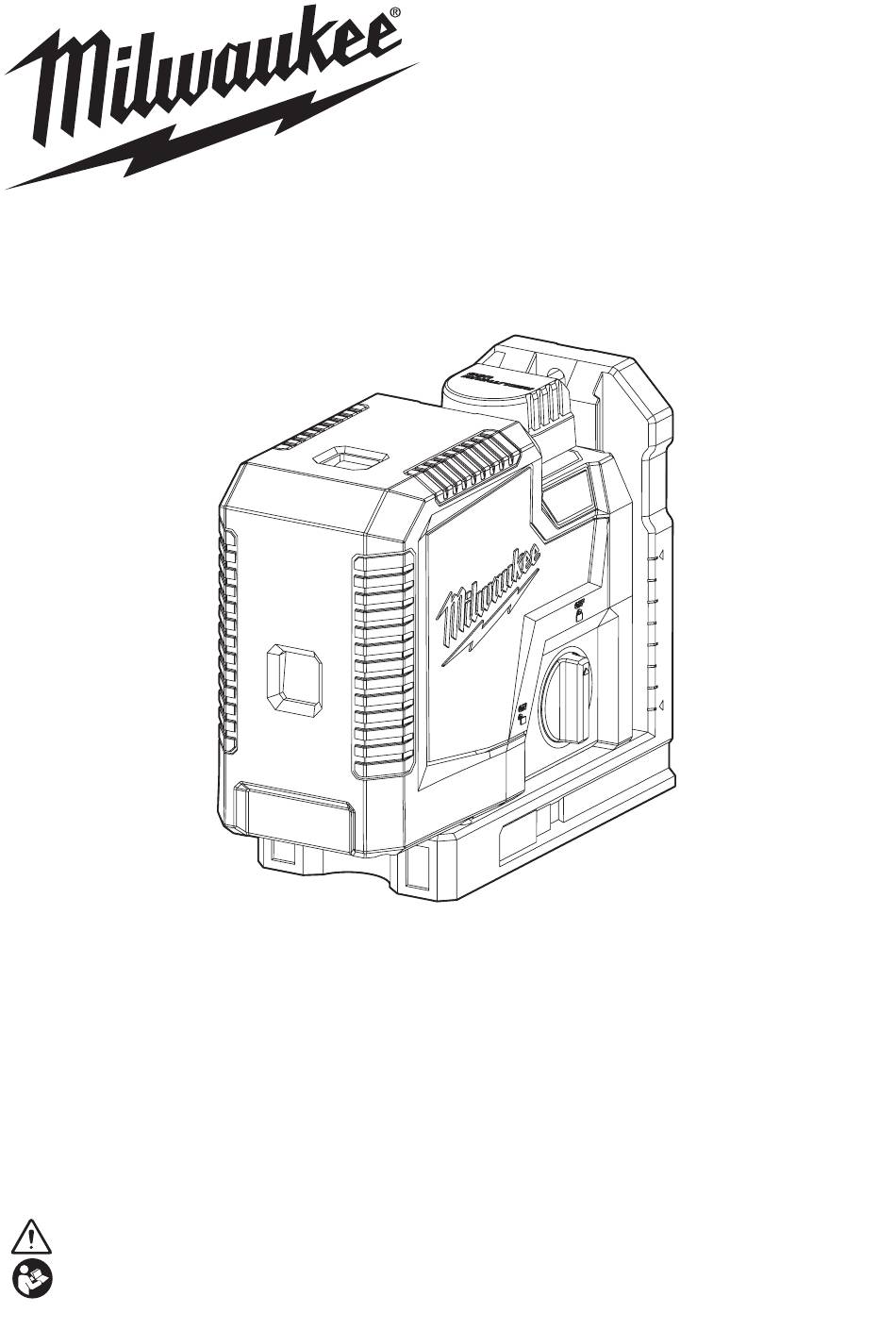

- Page 1 OPERATOR'S MANUAL Cat. No. L4 3PL REDLITHIUM USB 3 POINT LASER ® WARNING To reduce the risk of injury, user must read and understand operator's manual.
-
Page 2: General Power Tool Safety Warnings
DO NOT DISASSEMBLE. Incorrect reassembly • GENERAL POWER TOOL SAFETY may result in the risk of electric shock, fire or WARNINGS exposure to battery chemicals. If it is damaged, take it to a MILWAUKEE Read and understand all instruc- service facility. ® WARNING BATTERY... -
Page 3: Functional Description
FUNCTIONAL DESCRIPTION SPECIFICATIONS Cat. No ............L4 3PL 1. Laser apertures USB Input Volts ........... 5V DC 6. USB power inlet USB Input Amps ........0.1 - 2.1 A Output Volts ..........4V DC Output Amps ............2.1 A REDLITHIUM USB Batteries ®... -
Page 4: Operation
Allow the battery to cool down pletely discharged. When burned, toxic fumes or warm up (as appropriate) and then reinsert. If and materials are created. the problem persists, contact a MILWAUKEE ® service facility. Disposing of MILWAUKEE Li-Ion ®... -
Page 5: Troubleshooting
If stored in excessive heat or cold, allow at least 2 hours to an appropriate ambient temperature between -10°C to 40°C before turning on the tool. If problem persists, please contact a MILWAUKEE ® service facility for support. ACCURACY FIELD CHECK Perform the Accuracy Field Check Move the tool within 30cm of wall B. - Page 6 Vertical Leveling Accuracy A free measuring distance of approximately 5m between floor and ceiling on a firm surface is required for this check. Draw a straight line on the ceiling to use as a reference line. Securely mount the tool within 30cm of the floor. 3.
-
Page 7: Maintenance
MAINTENANCE reduce risk of injury, always WARNING remove battery before perform ing any maintenance. Never disassemble the tool. Maintain Laser Level Maintain tools. If damaged, have the tool repaired before use. Accidents may be caused by poorly maintained tools. To reduce the risk of personal in- WARNING jury and damage, never immerse them. - Page 8 Australia and New Zealand. SERVICE - AUSTRALIA and NEW ZEALAND MILWAUKEE ® prides itself in producing a premium quality product that is Nothing But Heavy Duty Your satisfaction with our products is very important to us! If you encounter any problems with the operation of this tool, please contact your authorised MILWAUKEE ®...
