Takara Belmont LEGEND Installation Manual

Be sure to store this manual in a secure location together with the operation manual as it
describes items that must be understood by the customer.

Installation Procedures

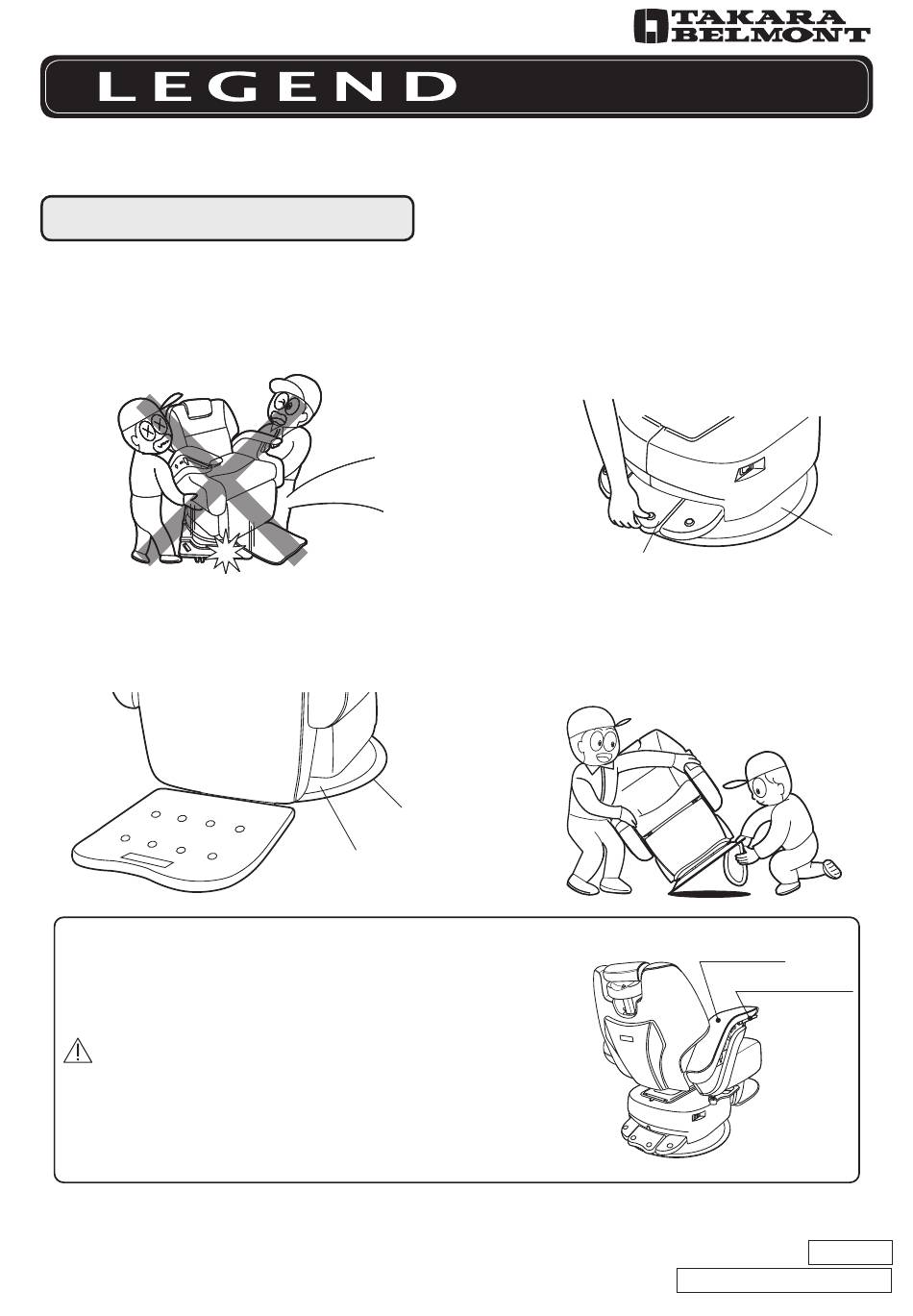

1 Move the chair to the installation location.
• Move the chair by holding the skid.
(Carrying the chair by the upper part is dan-
gerous because the base could come off and
drop.)
2 Attach the rubber ring to the base.
Determine the installation location. Lift the base off the floor and attach the rubber ring
to the rim of the base.
When it is difficult to carry the chair,
attach the rubber ring or align the position
while holding the base and foot switch,
hold the armrest instead and perform the
work. When doing so, pay attention to
CAUTION
deformation of the cape holder, wrinkles
and dirt of the leather, and coming-off of
the base. Even if the armrest is held, the
product may be damaged when excessive
force is applied.
Installation Manual
• Remove the chair from the skid. Raise the
chair off the floor by holding up the metal
plate under the foot switch. Move the chair
by holding the base.
Bang!
• It's easier to lift it up one side at a time.
Rubber ring
Base
1
Foot switches
Armrest
Cape holder
BOOK NO. 1E01JYAE
Base
2016-04
