Greystone Energy Systems NTRC Networking Series Installation Instructions Manual

during installation and do not exceed the device ratings.

MOUNTING

The room type sensor installs directly on a standard electrical box and should be mounted five feet from
the floor of the area to be controlled. Do not mount the sensor near doors, opening windows, supply air
diffusers or other known air disturbances. Avoid areas where the detector is exposed to vibrations or rapid
temperature changes.

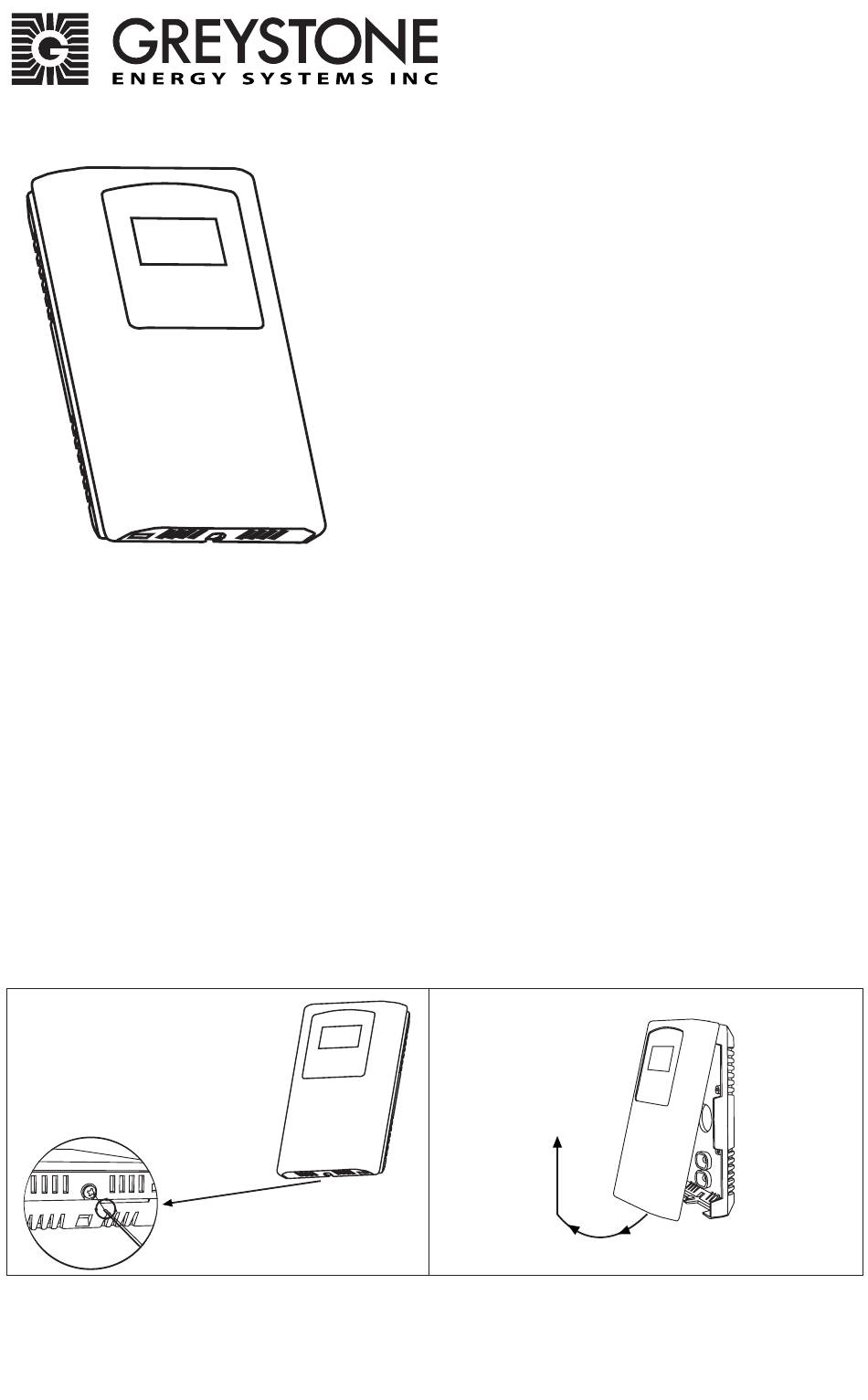

The cover is hooked to the base at the top edge and must be removed from the bottom edge first. Use
a small Phillips screwdriver to loosen the security screw as shown in Figure 1. (Complete removal is not
required). Use a screw driver to carefully pry each bottom corner if necessary. Tip the cover away from the
base and sit it aside as shown in Figure 2.
Figure 1
IN-GE-NTRCXXX-01-02 03/19

INTRODUCTION

The network sensor is designed for use in environmental
monitoring and control systems where high performance and
stability are demanded. It's state-of-the-art design combines
digital linearization and temperature compensation with a highly
accurate and reliable thermoset polymer based capacitance
humidity sensor and curve-matched NTC thermistor temperature
sensor for reliability and accuracy in the most critical applications.

BEFORE INSTALLATION

Read these instructions carefully before installing and
commissioning the device. Failure to follow these instructions
may result in product damage. Do not use in an explosive or
hazardous environment, with combustible for flammable
gases, as a safety or emergency stop device or in any other
application where failure of the product could result in
personal injury. Take electrostatic discharge precautions
Copyright © Greystone Energy Systems, Inc. All Rights Reserved Phone: +1 506 853 3057 Web: www.greystoneenergy.com
NTRC Networking Series - Installation Instructions
Figure 2
Network Sensor
Page 1
