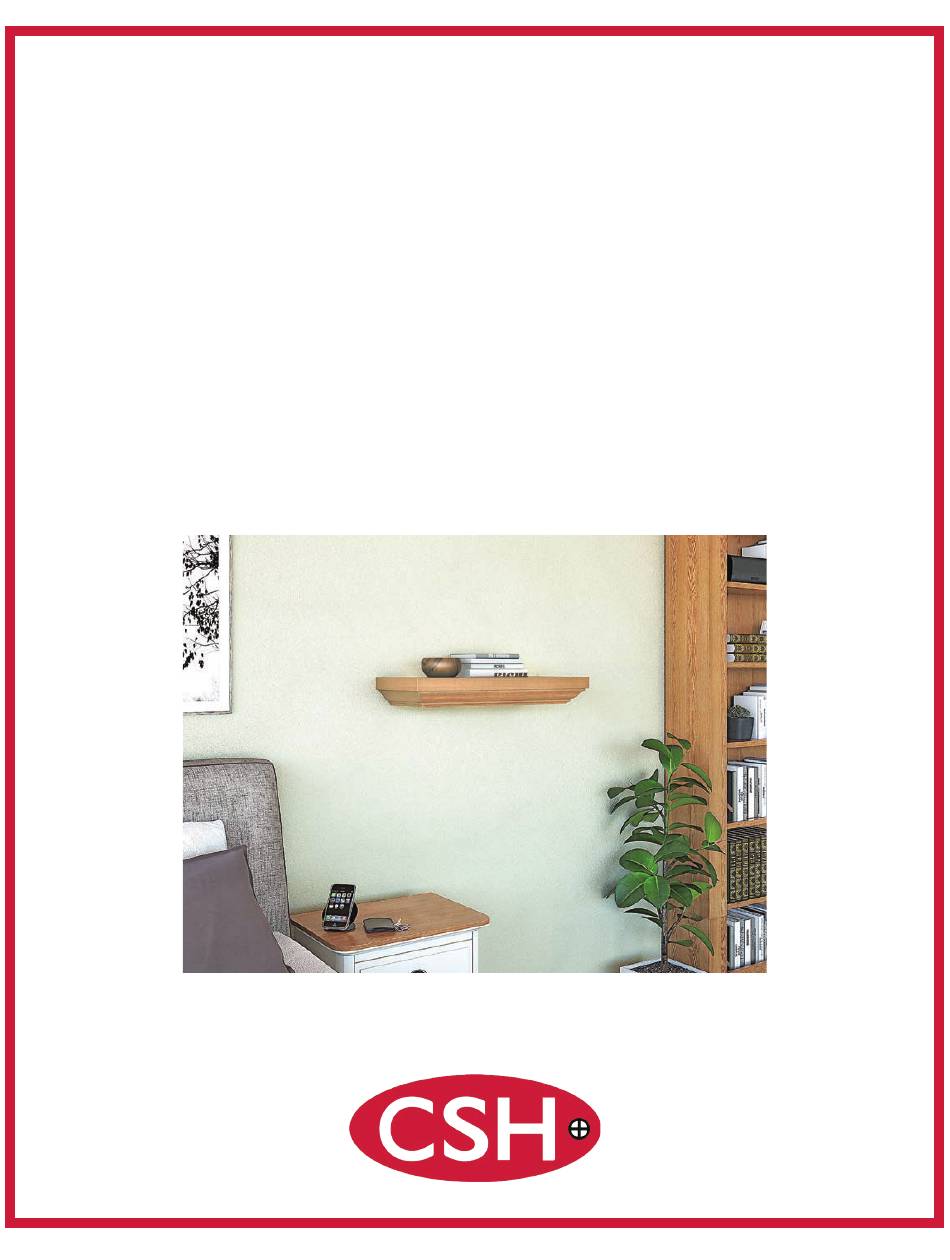

- Page 1 INSTRUCTION MANUAL for Installing INVISISHELF ID.CS28.01 Series...
- Page 2 Instruction Manual for InvisiShelf Installation Hardware Included: InvisiShelf Kaizen Foam Insert w/ Tape Backing (4) #10x3” Lock Instructions, Key Wall Screws Card/FOB, and Battery LED Light Instructions and USB Charging Cord Installation Tools Needed: FastCap Third Eyeglass Hand(or help from Screwdriver another person) Stud Finder...
- Page 3 Step 1: Setting Up 1. Remove InvisiShelf from carton. Open InvisiShelf and locate the installed light under the top shelf. Remove light by sliding it towards the front of the shelf. It should separate from installed bracket. Take it out and charge it using provided USB charging cord found inside Shelf.
- Page 4 4. Once the Kaizen Foam insert has been customized for storage, apply the foam insert (if desired) into the InvisiShelf. Peel off the paper backing to the adhesive and align the foam with even clearance side to side between the strut on the left and the wood partition on the right.
- Page 5 8. Making sure the shelf is still fully supported by support tool or person, move to the opposite side of the shelf to install a #10 Wall screw in the opposite upper outer slot hole into the center of the wall stud. Make sure shelf is level again.
- Page 6 InvisiShelf Dimensions...
- Page 7 NOTES...
- Page 8 Also available from CSH: Mini Barn Door Hardware Rolling Barn Door Hardware Rolling Library Ladders 1170 Wauwatosa Rd. Cedarburg, WI 53012 (262) 365-7960 cshardware.com REV. 4.01.21...
