Summary of Contents for Harman Infinity Alpha 6520
- Page 1 INSTALLATION MANUAL Alpha 6520 Alpha 6530 Alpha 4020 Alpha 6930 Alpha 650C...

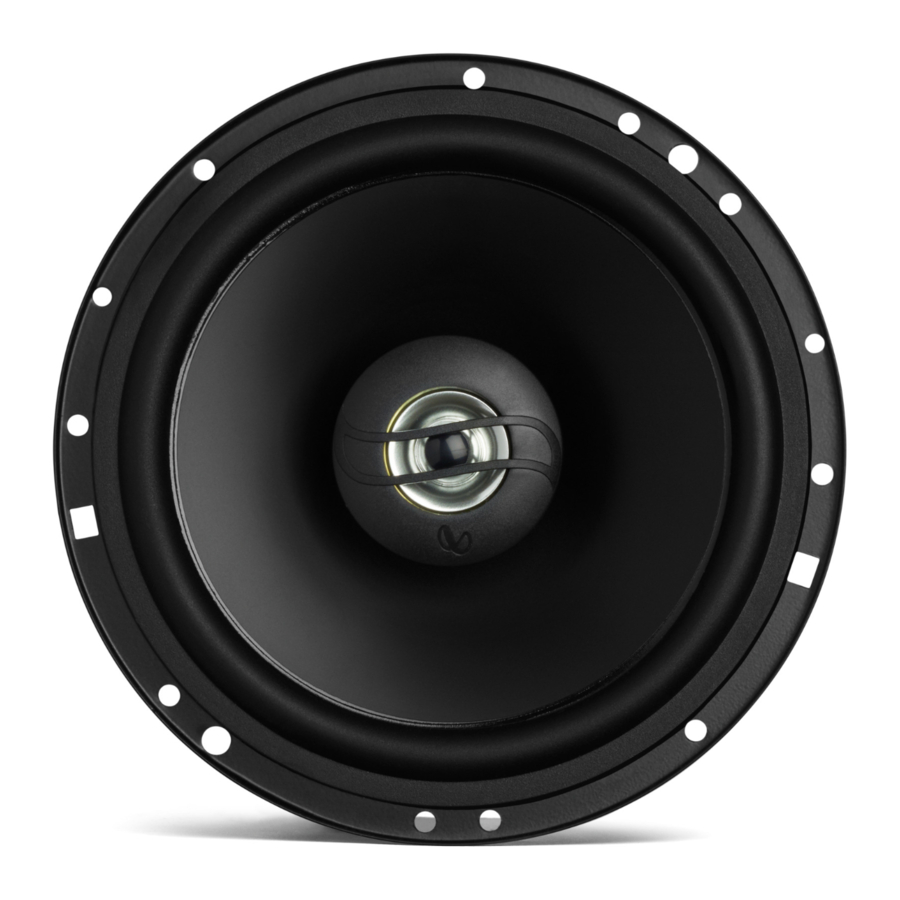

- Page 2 Alpha 6520...
-
Page 4: Specifications
Specifications Thiele-Small Parameters • BL (Tm): 3.241 • Type: 6-1/2” (160mm) 2-way coaxial car speaker • DCR (ohm): 3.2 • Power Handling: 40Wrms, 280W peak • Mms (g): 8.031 • Sensitivity (@ 2.83V): 91dB • Sd (cm2): 128.68 • Frequency Response: 55Hz – 20kHz •... - Page 5 Alpha 6930...
- Page 7 Specifications Thiele-Small Parameters • BL (Tm): 3.496 • Type: 6” x 9”(152mm x 230mm) 3way coaxial car speaker • DCR (ohm): 2.3 • Power Handling: 70Wrms, 490W peak • Mms (g): 17.755 • Sensitivity (@ 2.83V): 92dB • Sd (cm2): 213.565 •...
- Page 8 Alpha 6530...
- Page 10 Specifications Thiele-Small Parameters • BL (Tm): 3.241 • Type: 6-1/2” (160mm) 3way coaxial car speaker • DCR (ohm): 3.2 • Power Handling: 40Wrms, 290W peak • Mms (g): 8.031 • Sensitivity (@ 2.83V): 91dB • Sd (cm2): 128.68 • Frequency Response: 55Hz – 20kHz •...
- Page 11 Alpha 650C...
- Page 14 Specifications Thiele-Small Parameters • BL (Tm): 3.588 • Type: 6-1/2” (165mm) 2way component system car speaker • DCR (ohm): 3.2 • Power Handling: 45Wrms, 315W peak • Mms (g): 11.01 • Sensitivity (@ 2.83V): 91dB • Sd (cm2): 128.68 • Frequency Response: 55Hz – 20kHz •...
- Page 15 Alpha 4020...
- Page 17 Specifications Thiele-Small Parameters • BL (Tm): 2.965 • Type: 4” (100mm) 2way coaxial car speaker • DCR (ohm): 3.2 • Power Handling: 25W RMS, 175W peak • Mms (g): 4.629 • Sensitivity (@ 2.83V): 88dB • Sd (cm2): 55.389 • Frequency Response: 75Hz – 20kHz •...
- Page 18 Incorporated, 8500 Balboa Boulevard, Northridge, CA 91329 © 2019 HARMAN International Industries, Incorporated. All rights reserved. INFINITY is a trademark of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. Features, specifications and appearance are subject to change...
