Summary of Contents for DTE Lux E
-
Page 2: Table Of Contents
content 1. Introduction ..............1 2. Principle and Application ..........1 3. Product Performance Structure and Components ..1 4. Basic Technical Specifications ........3 5. Installation and Demounting ........3 6. Operation ................4 7. Light intensity measurement .........5 8. Precaution ...............6 9. Contraindication ............6 10. -
Page 3: Introduction

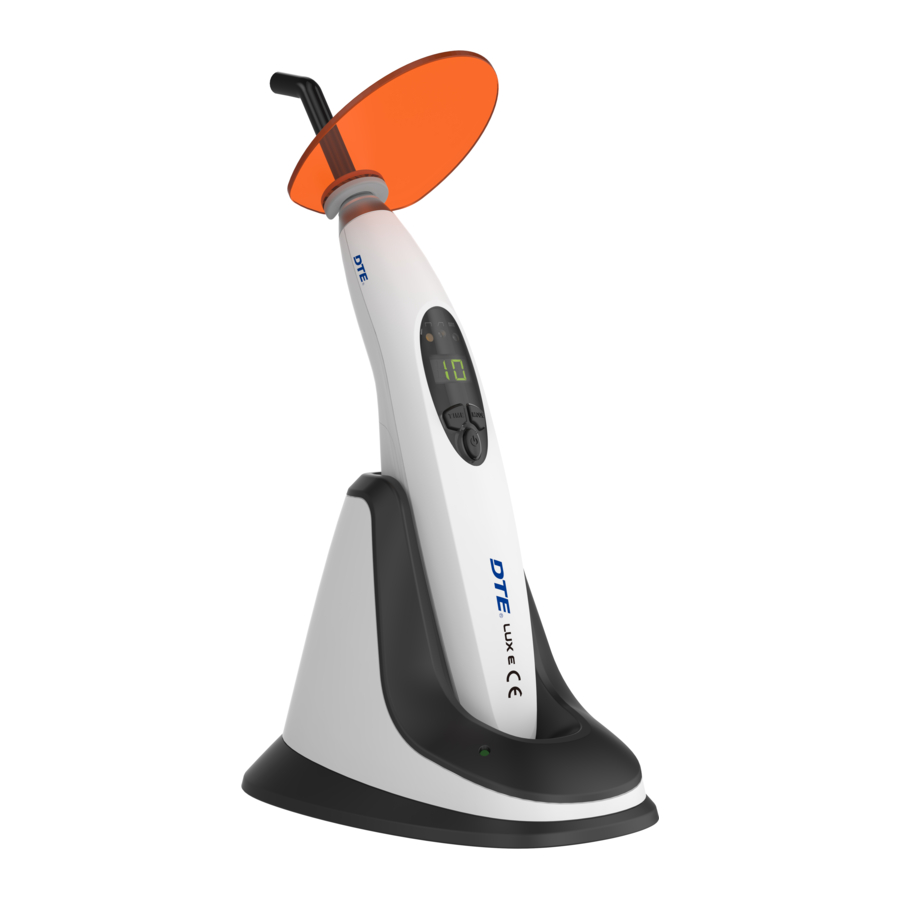

2. Principle and Application 2.1 LUX E adopts the principle of ray radiation to solidify the light- sensitive resin by shooting at it in a short time. 2.2 This product is used for dentistry. It has the function of accelerating dental restoration and solidifying the material of dental whitening. -
Page 5: Basic Technical Specifications
4. Basic Technical Specifications 4.1 Adapter: a) Rechargeable Lithium battery: Battery voltage and capacity: 3.7V, 1400mAh Battery model: ICR18490 b) Adapter input: AC100~240V 50Hz/60Hz Output: DC5V 1A 4.2 Applied part: Optical fiber 4.3 Light source: a) 5W high power blue light LED b) Wave length: 420nm~480nm c) Light intensity: 1600mW/cm²... -
Page 6: Operation
5.2 Fix the light hood on the bottom of the optical fiber. 5.3 Uninstall the LED, just reverse the procedure above. 5.4 Battery replacement method: open the battery cover of the main unit, take the battery out, than disconnect the plug slightly. Connect the plug of the new battery correctly, put the new battery in, and then fix the battery cover. -
Page 7: Light Intensity Measurement
unit into the charge device, the yellow indicator will enlightened, when charge finish, the green indicator will enlightened and the yellow one will off. The green light is the power indicator of the charging finish. If a battery error is detected, the indicator of the charge device will wink. 6.7 When operating finish, please clean the optical fiber with calico to avoid infecting the light intensity. -
Page 8: Precaution
8. Precaution 8.1 Please recharge the battery at least 4 hours before first time usage. 8.2 During operation, the light should be aimed straightly at the resin to ensure the effect of solidification. 8.3 Avoid aiming the blue light at eyes directly. 8.4 Only the original pedestal charger, adapter and Lithium battery could be used, because other brand pedestal charger, adapter and Lithium battery are likely to damage the circuit. -
Page 9: Troubleshooting
2.0bar~2.3bar (0.20MPa~0.23MPa) before each use, other parts should be cleaned by clean water or neutral sterilized liquid, but do not soak the equipment in the water. Do not clean by volatile or soluble liquid, otherwise the marks of the control panel will fade. 10.2 Please clean the optical fiber to avoid the remaining resin on the surface and infect the life-span and the effectiveness of solidification. -
Page 10: Packing List
Faults Possible causes Solutions Effective duration The capacity of the Change a new battery. o f t h e b a t t e r y battery decreased. become short. T h e m o d e 1. low voltage. 1. -
Page 11: After Service
14.3 This equipment should be stored in the environment where the humidity is 10%~93%, the atmosphere pressure is 70kPa~106kPa and the temperature is -20 ℃ ~55 ℃ . 14.4 Excess impact or shake should be prevented during transportation. Handle with care. Do not place upside down. 14.5 Don't put it together with dangerous articles during transportation. -
Page 12: Environmental Protection
Temperature limitation for storage Recovery Humidity limitation for storage Keep dry Atmospheric pressure for storage Handle with care for storage Appliance compliance WEEE directive Consult the accompanying documents A u t h o r i s e d R e p r e s e n t a t i v e i n t h e E U R O P E A N COMMUNITY 18. - Page 13 LUX E LUX E LUX E LUX E LUX E LUX E...
-
Page 15: Statement
20. Statement All rights of modifying the product are reserved to the manufacturer without further notice. The pictures are only for reference. The final interpretation rights belong to GUILIN WOODPECKER MEDICAL INSTRUMENT CO., LTD. The industrial design, inner structure, etc, have claimed for several patents by WOODPECKER, any copy or fake product must take legal responsibilities. - Page 16 ZMN/WI-09-132 V1.0-20181120...
