- Page 1 OPERATION AND MAINTENANCE MANUAL BLC-8010 ITEM NO.: BLC-8020 ITEM NO.: BLC-8030 ITEM NO.: BRUSHLESS FULL AUTO SHUT-OFF CORDLESS SCREWDRIVER...
- Page 2 Before you use the Cordless Screwdriver for the first time, it is essential to read and understand the manual completely (including the spare parts view). The term “Cordless Screwdriver” in all of the warning listed below refers to your main operated appliance. Icon Instructions 1.
-
Page 3: Function Of Cordless Protection
10. To protect parts in gearbox from damage, replace the grease at least once every year. 11. It is necessary for the operators to read and follow up on all of the operating instructions in this manual. ASG is not responsible for any personal injury that may be caused due to disobeying these instructions. -
Page 4: Do Not Attempt To Repair Or Disassemble This Cordless Screwdriver, The Warranty Will Be Considered Void
2. Do not attempt to disassemble or reassemble the device, as it may result in poor performance or danger or injury. 3. Do not repair the device with other than genuine ASG replacement parts. Failure to do so may result in poor performance or danger of injury. The warranty will be considered void. - Page 5 (2.1) The below illustration shows the process of correctly installing & disassembling the rechargeable battery. The audible beep sound and flash indicates the screwdriver’s battery is installed correctly and the tool can be operated. Insert Battery Steps (1) Insert the rechargeable battery into the device as shown by the arrow. (2) Assembled completely.

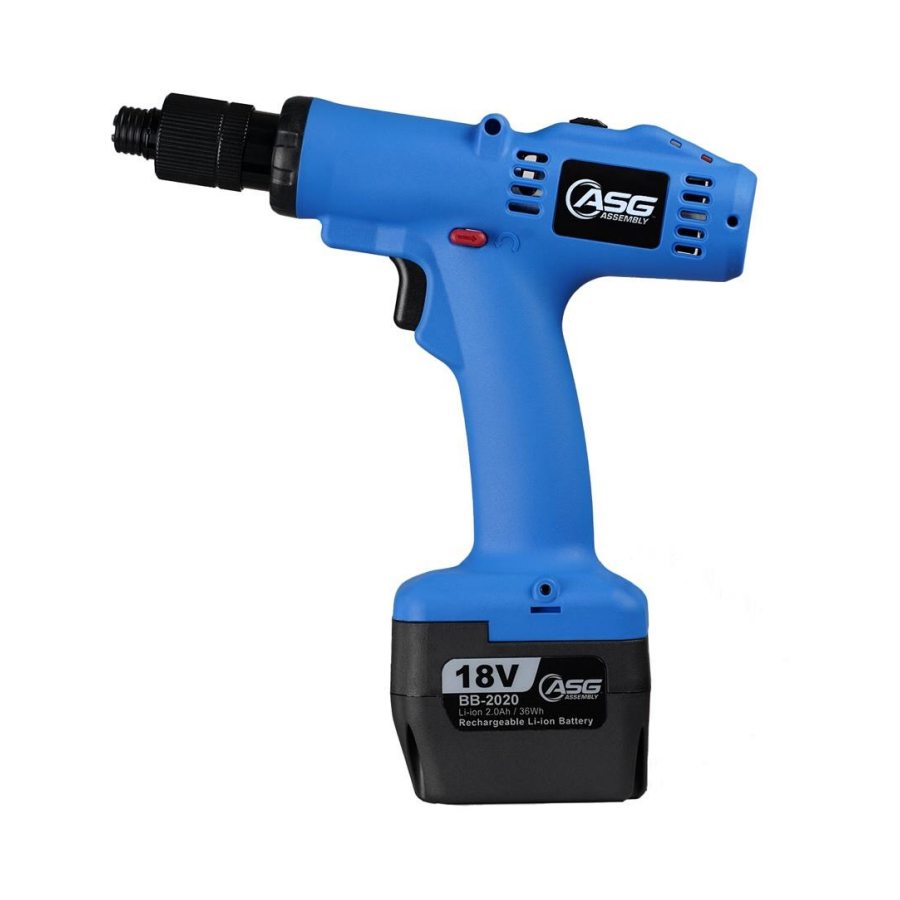

- Page 6 Functions Function Name Table Description Description Trigger Switch S waist hook Forward/Reverse Lever Indication light LED Light Torque wrench Bit Sleeve (10) Speed adjustment Torque Ring (11) Wrist strap hole Driver Hook Hole...
-
Page 7: Full Auto Shut-Off Screwdriver
Operation 1. Full auto shut-off screwdriver The screwdriver stops automatically when the screw has been tightened to the set-up torque level. (1) Trigger switch The LED lights are on when the trigger switch has been pressed approximately one-third down, and then the screwdriver starts functioning when the switch trigger has been pressed half way down;... - Page 8 (5) Torque ring (a) Use the color torque rings to identify tools set to the same target torque. (b) Coupler: Fix housing and clutch. (6) Driver Hook It is convenient that the production lines are able to have spring balancers work together with the tools to be more efficiently. (7) Waist hook The waist hook allows users to carry the device easily by attaching it to their work belt.
-
Page 9: Other Cautions
2. Choose the charger for your battery: A. BB-2020 battery uses the BC-1020 charger 3. The use of other than genuine ASG batteries or screwdrivers cannot activate the tool due to the build- in protection system which enforces no charging without the certified part. -
Page 10: Specifications
Specifications BLC-8010 BLC-8020 BLC-8030 MODEL INPUT VOLTAGE(DC) INPUT VOLTAGE(DC) 1.0 ~ 3.5 3.0 ~ 9.0 6.0 ~ 12 Torque Range Torque adjustment Torque adjustment Unloaded 2000 1000 Speed n0 1300 (r/min)±10% Machine 4.0~5.0 5.0~6.0 ≤6 Screw size (mm) screw 0.79kg (w/o battery) Weight (Kg) 217mm ＊...
