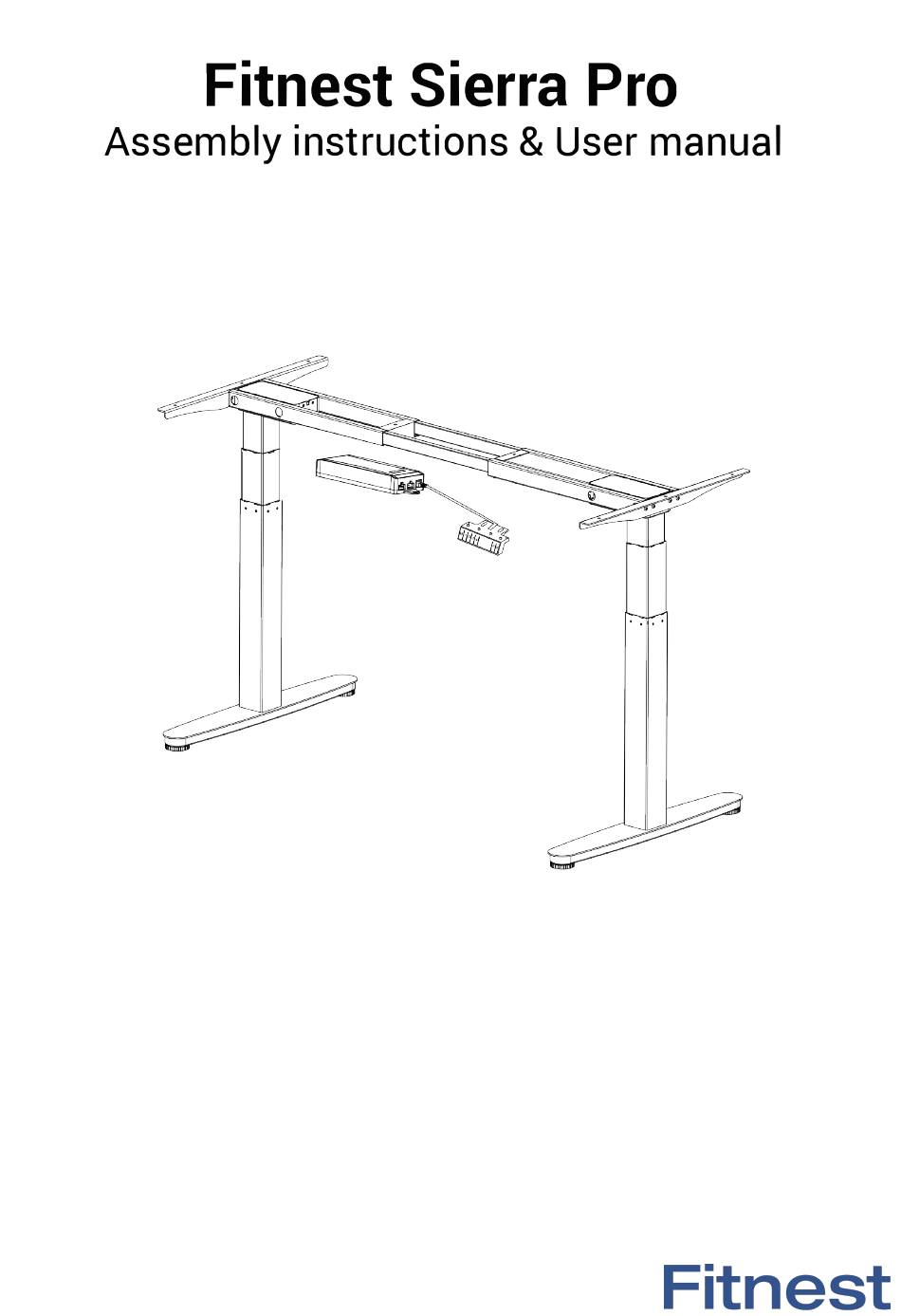

Summary of Contents for Fitnest Sierra Pro
- Page 2 Tools Required For Assembly b. Press and hold the "M" Key for 3s until the numbers on the display started flashing. c. Press memory position Key 1 to save the desk position in memory. d. The display will read "P 1" the memory position number you saved. •...
-
Page 3: Caution / Information
CAUTION / INFORMATION IMPORTANT: Please read this manual carefully. 1. This height adjustable desk has electric motors and is designed for use in dry work areas only. 2. Make sure no obstacles are in the desk’s path. Make sure the desktop is not touching any walls. Make sure all cords are appropriate length to accommodate the change in height. - Page 4 SAFETY INSTRUCTIONS 1. Keep all electrical components away from liquids. There is a risk of injury and electric shock. 2. Keep children away from electric height adjustable desks, control units and memory controller. There is a risk of injury and electric shock. 3.
-
Page 5: Exploded Drawing
EXPLODED DRAWING: PARTS: ×3 • 2 ×10 ×4 ×9 ×10 ×18 ×1 ×4 ×10 ×1 ×1 Control box Memory controller... - Page 6 ×1 ×2 ×2 ×8 NOTE： Please loosen the screws. NOTE： Please expand both sides until the hole is exposed.
- Page 7 ×4 NOTE： Please tighten screws. ×4 ×4 NOTE： Please tighten screws. ×4...
- Page 8 ×8 ×3 ×3 ×8 ×3 NOTE： Please do not fully tighten screws NOTE until all screws are in place. Please do not fully tighten screws until all screws are in place. ×2 ×4 ×4 ×2 ×2 NOTE： Please do not fully tighten screws until all screws are in place.
- Page 9 ×8 ×8 NOTE： Please do not fully tighten screws until all screws are in place.
- Page 10 ×4 ×3 NOTE： NOTE： ×3 ×3 Shorten the distance between Shorten the distance between the two legs. the two legs. NOTE： NOTE： Please do not fully tighten screws Please do not fully tighten screws ×3 ×3 until all screws are in place. until all screws are in place.
- Page 12 ×8 ×3 ×4 ×8 ×3 NOTE： Please do not fully tighten screws NOTE until all screws are in place. Please do not fully tighten screws until all screws are in place. ×2 ×4 ×2 ×2 NOTE： Please do not fully tighten screws until all screws are in place.
- Page 13 Control box ×1 ×2 ×2 NOTE： Please do not fully tighten screws until all screws are in place. NOTE： Part H can be installed at any position as your desired. ×2 NOTE e9 x 2 Memory controller ×1 Part I can be installed at any position as your NOTE desired.
- Page 14 ×1 ×2 ×2 ×8 NOTE： Please loosen the screws. NOTE： Please expand both sides until the hole is exposed.
-
Page 16: Safety Instructions
SAFETY INSTRUCTIONS 1. Keep all electrical components away from liquids. There is a risk of injury and electric shock. 2. Keep children away from electric height adjustable desks, control units and memory controller. There is a risk of injury and electric shock. 3. -
Page 17: Reset Procedure
Digital Memory Controller 1. Reset Procedure IMPORTANT: You must reset the desk prior the use. Make sure no obstacles are in the desk’s path. Make sure the desktop is not touching any walls. Make sure all cords are appropriate length to accommodate the change in height. a. - Page 18 Tools Required For Assembly b. Press and hold the "M" Key for 3s until the numbers on the display started flashing. c. Press memory position Key 1 to save the desk position in memory. d. The display will read "P 1" the memory position number you saved. •...
-
Page 19: Specifications
a. Press and hold the DOWN button (about 5 seconds) until the LED displays the flashing starting height. b. Press the UP or DOWN button to increase or decrease the height (1unit / click). c. Then press "M" and stop flashing, your desk is now ready to use. Note: the LED display has a 0.1 tolerance. - Page 20 7. Trouble Shooting Below are the possible errors which can be displayed. The errors will only be dis- played when a button is pressed. Description Error code Resolve Lifting speed of two legs are not Confirm that all wired connections are secure (legs to able to sync or HALL signal failure cables, cables to control box).
