SOR 1600 Series Manual

Liquid level controller
Hide thumbs

Advertisement

Quick Links

Download this manual

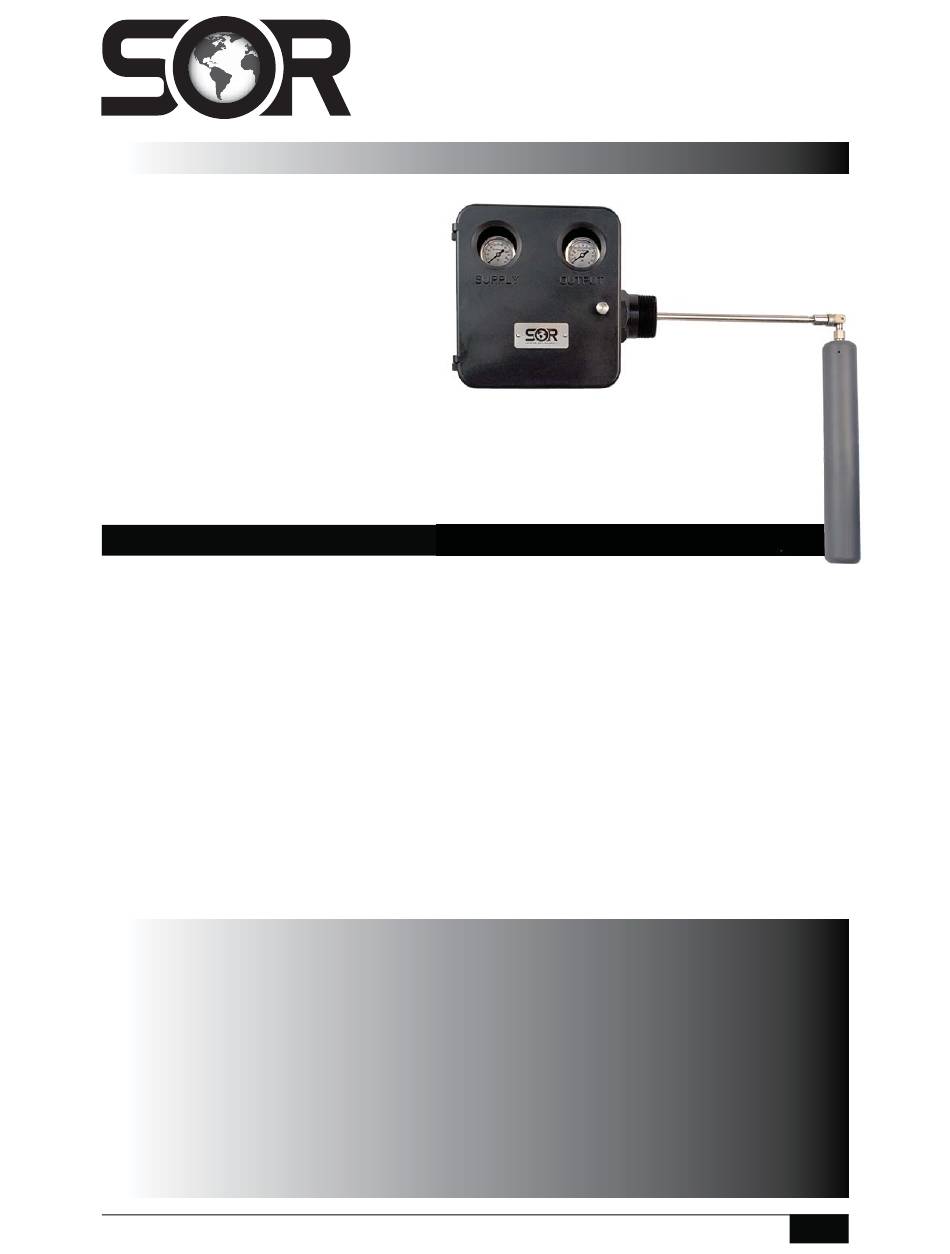

The SOR
®
1600 Series Level Controllers
are designed for use in liquid level
and interface level applications with
pneumatic instrumentation. For
assistance with the calibration and
maintenance procedures found in these
General Instructions, please visit the
SOR Inc. Youtube channel for video
walkthroughs.
NOTE: If you suspect that a product is defective, contact the factory or the SOR
Representative in your area for a Return Material Authorization number (RMA). This
product should only be installed by trained and authorized personnel.

Installation

 Before beginning installation, inspect the level controller for damage that may have
occurred during shipment and remove all cardboard packing material.
 The 1600 Series Level Controllers normally ship unassembled as 3 separate parts:
- The level controller body assembly.
- The displacer with swivel.
- The displacer arm.
 Thoroughly clean the vessel connection surface to remove any accumulated debris.
Threaded and gasketed surfaces on the controller's process connection should also be
cleaned before installing the level controller.
 When installing the level controller, apply PTFE tape or pipe thread sealant for units
with NPT connections. For units with flanged connections, install with a suitable gasket
between the flange faces.
Design and
specifications are
subject to change
without notice.
For latest revision, go to
SORInc.com
Form 1636 (03.19) ©SOR Inc.
Liquid Level Controllers
h l
l
ll f d
Installation ...................................... 1
Reference Diagram ............................ 4
Maintenance .................................... 4
Parts List ........................................ 8
Repair Kits ..................................... 12
Dimensions .................................... 13
Troubleshooting ............................... 15
Registered Quality System to ISO 9001
1600 Series
General Instructions
h
h

Table of Contents

1/16

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1600 Series and is the answer not in the manual?

Questions and answers

Related Manuals for SOR 1600 Series

Summary of Contents for SOR 1600 Series

  • Page 1: Table Of Contents

    SOR Inc. Youtube channel for video walkthroughs. NOTE: If you suspect that a product is defective, contact the factory or the SOR Representative in your area for a Return Material Authorization number (RMA). This product should only be installed by trained and authorized personnel.
  • Page 2 Connect the device the pneumatic signal is being output to with the connection point labelled “OUTPUT”. Electric Pilot If the 1600 Series level controller was supplied with an electronic switch rather than a pneumatic pilot, the switch will carry the following ratings: Electrical power must be disconnected before cover is removed.
  • Page 3 Slowly rotate the adjusting knob counterclockwise to reduce spring tension until the level controller stops sending an output pressure signal. 3/16 Form 1636 (03.19) ©SOR Inc.

  • Page 4: Reference Diagram

    Torque Bar Displacer Torque Arm Torque Arm Upper Spring Retainer Adjusting Screw Balance Spring Adjusting Knob Shaft Supply Connection Output Connection Output Supply Connection Connection Displacer Displacer Body Body Case Case 1600 Sealed 1601 Non-Sealed 4/16 Form 1636 (03.19) ©SOR Inc.

  • Page 5: Maintenance

    Slide the torque bar back onto the shaft. With the round tip of the torque arm adjusting screw touching the torque bar, adjust the torque arm until the torque bar is parallel with the displacer arm. 5/16 Form 1636 (03.19) ©SOR Inc.
  • Page 6 The torque arm, torque arm adjusting screw, sensitivity fulcrum, torque bar, flapper bar, balance spring and stud bolt should all be re-assembled into the opposite side of the controller case. 6/16 Form 1636 (03.19) ©SOR Inc.
  • Page 7 For best performance with your 1600 series Liquid Level Controller, only genuine SOR replacement parts and repair kits should be used.

  • Page 8: Parts List

    Parts List 1600 SEALED LEVEL CONTROLLER 8/16 Form 1636 (03.19) ©SOR Inc.
  • Page 9 1600 SEALED LEVEL CONTROLLER Linear = mm/inches Drawing 5678301 9/16 Form 1636 (03.19) ©SOR Inc.
  • Page 10 1601 NON-SEALED LEVEL CONTROLLER 10/16 Form 1636 (03.19) ©SOR Inc.
  • Page 11 1601 NON-SEALED LEVEL CONTROLLER Linear = mm/inches Drawing 5678300 11/16 Form 1636 (03.19) ©SOR Inc.

  • Page 12: Repair Kits

    With Plugs 5678390P 5678292P Non-Sealed (1601) Brass 5678388P 5678393P Vibration Resistant Brass 5678386P 5678395P 316SS 5678389P 5678394P Vibration Resistant 316SS 5678387P 5678396P Without Plugs 5678392P 5678123P Mounting Reference Drawings LEFT HAND MOUNT RIGHT HAND MOUNT 12/16 Form 1636 (03.19) ©SOR Inc.

  • Page 13: Dimensions

    Contact 13-27/64 1-21/32 the factory for certified 645.6 42.2 1.66 X 24 316SST 25-27/64 1-21/32 drawings for a particular model number. NOTES: 1. DIMENSION APPROXIMATE AND BASED ON A FIVE THREAD ENGAGEMENT. 13/16 Form 1636 (03.19) ©SOR Inc.
  • Page 14 1.66 X 12 316SST 13-27/64 1-21/32 the factory for certified 645.6 42.2 1.66 X 24 316SST 25-27/64 1-21/32 drawings for a particular model number. NOTES: 1. DIMENSION APPROXIMATE AND BASED ON A FIVE THREAD ENGAGEMENT. 14/16 Form 1636 (03.19) ©SOR Inc.

  • Page 15: Troubleshooting

    —If the torque arm moves too easily, this indicates the displacer is no longer connected to the displacer arm. —Adjust the displacer arm so it’s centered in the vessel connection. 15/16 Form 1636 (03.19) ©SOR Inc.
  • Page 16 API gravities for both the upper  Sometimes the temperature change is and lower liquid of the interface. SOR vessel overfills or causing them to vary and engineering will determine appropriate drains completely...

This manual is also suitable for:

16011600
