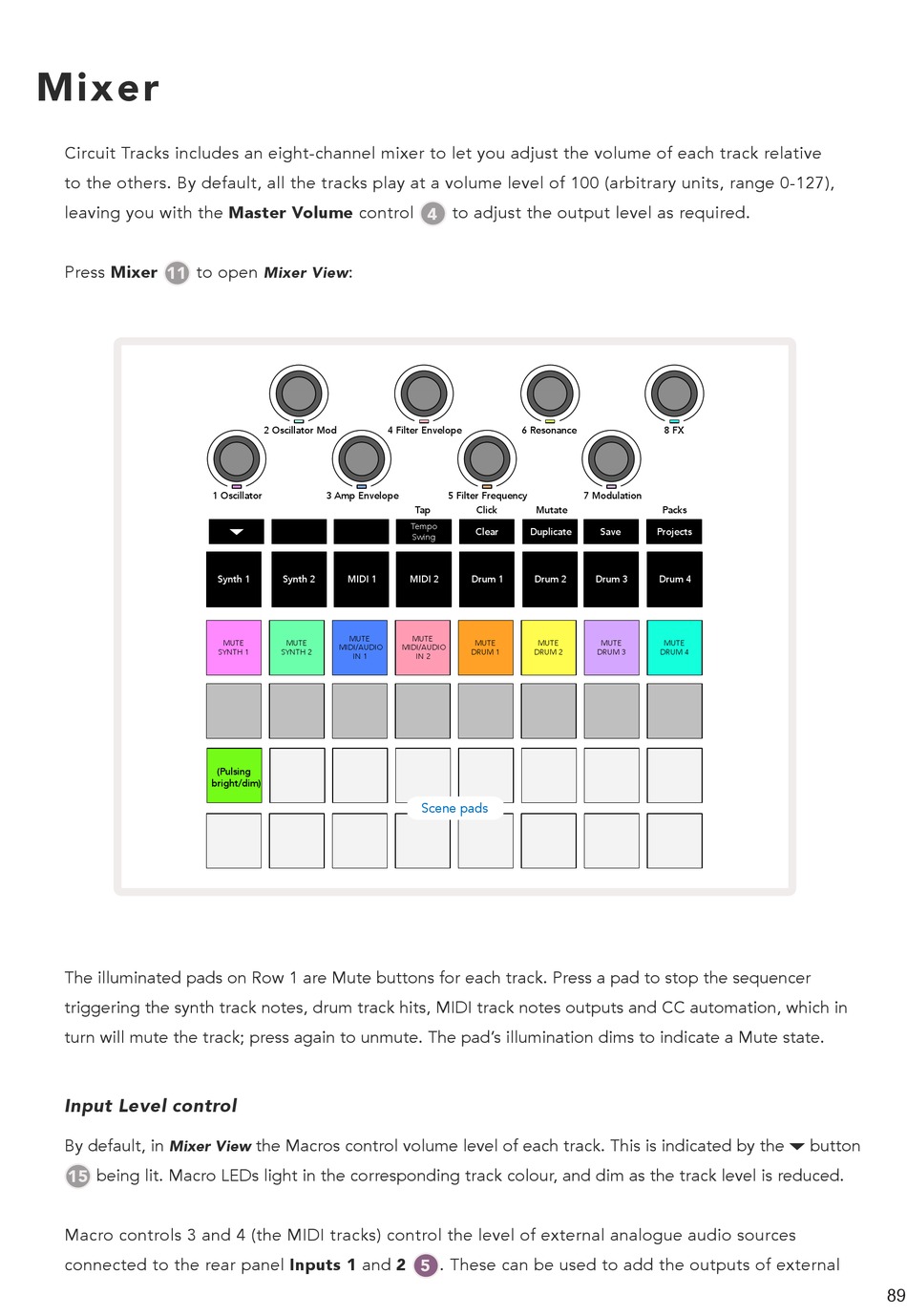

Mixer

Circuit Tracks includes an eight-channel mixer to let you adjust the volume of each track relative
to the others. By default, all the tracks play at a volume level of 100 (arbitrary units, range 0-127),
leaving you with the Master Volume control
Press Mixer
11 to open
The illuminated pads on Row 1 are Mute buttons for each track. Press a pad to stop the sequencer
triggering the synth track notes, drum track hits, MIDI track notes outputs and CC automation, which in
turn will mute the track; press again to unmute. The pad's illumination dims to indicate a Mute state.
Input Level control
By default, in
Mixer View
being lit. Macro LEDs light in the corresponding track colour, and dim as the track level is reduced.
15
Macro controls 3 and 4 (the MIDI tracks) control the level of external analogue audio sources
connected to the rear panel Inputs 1 and 2
:
Mixer View
2 Oscillator Mod
1 Oscillator 3 Amp Envelope
J
Synth 1 Synth 2 MIDI 1
MUTE
MUTE MUTE
MIDI/AUDIO
SYNTH 1 SYNTH 2
IN 1
(Pulsing
bright/dim)
the Macros control volume level of each track. This is indicated by the J button
4 to adjust the output level as required.
4 Filter Envelope 6 Resonance
5 Filter Frequency
Tap Click Mutate
Tempo
Clear Duplicate
Swing
MIDI 2 Drum 1 Drum 2
MUTE
MUTE MUTE
MIDI/AUDIO
DRUM 1 DRUM 2
IN 2
Scene pads
5 . These can be used to add the outputs of external
8 FX
7 Modulation
Packs
Save Projects
Drum 3 Drum 4
MUTE MUTE
DRUM 3 DRUM 4
