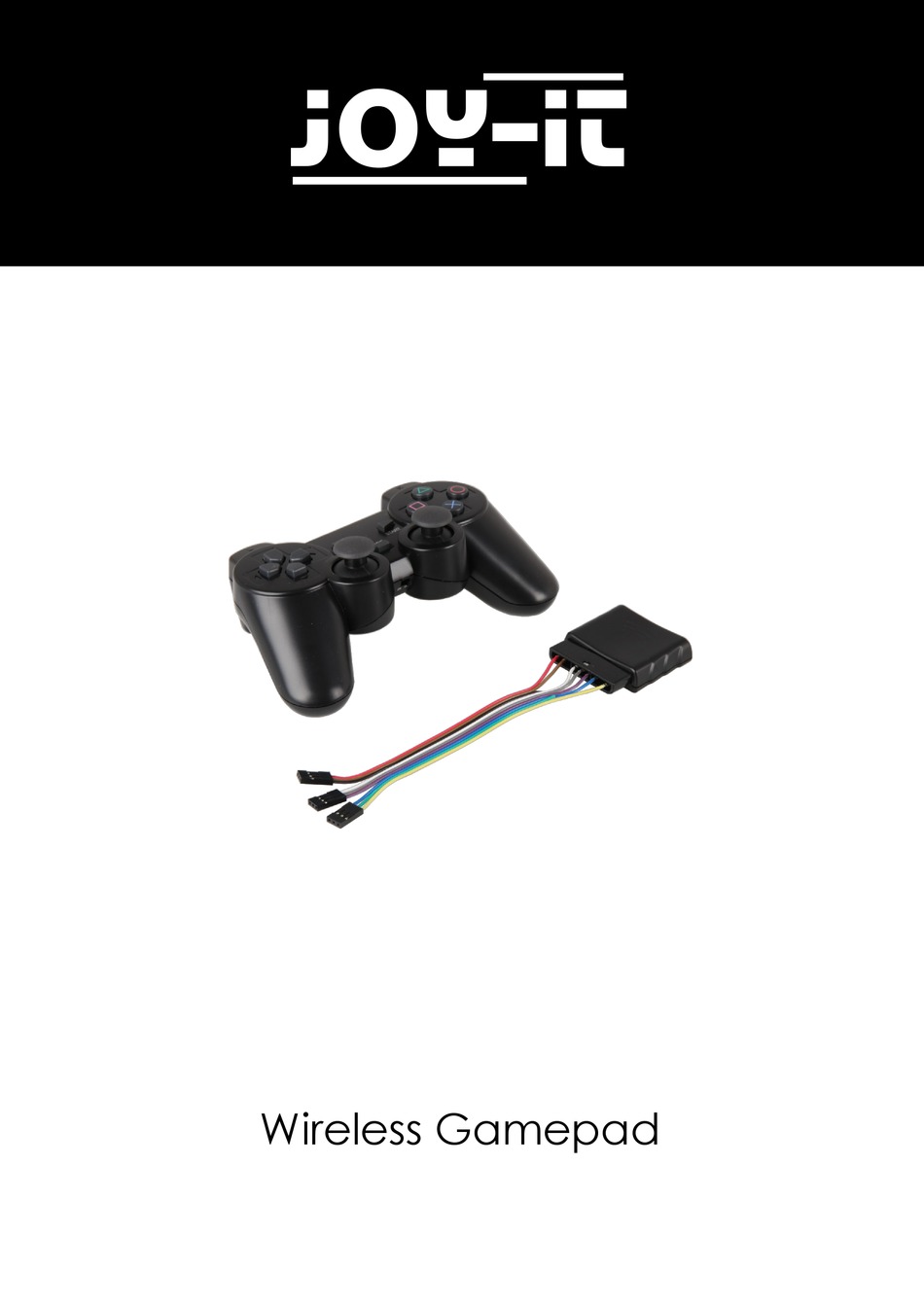

- Page 1 Wireless Gamepad...
- Page 2 Wireless Gamepad TABLE OF CONTENTS Introduction Connection Installing the library Usage Additional informations Support Published: 18.10.2018 Copyright by Joy-IT...
- Page 3 Wireless Gamepad INTRODUCTION Dear customer, Thank you for choosing our product. In the following we will show you what has to be considered during the installation and use. CONNECTION First connect the receiver to your Arduino as follows. Attention! The cable colours may differ! If necessary, use the table on the next page to check the correct cable connection.
- Page 4 Wireless Gamepad Arduino Wireless Gamepad 5 (Power, 3,3V) 4 (GND) Pin 10 6 (Attention) Pin 11 2 (Command) Pin 12 1 (Data) Pin 13 7 (Clock) INSTALLING THE LIBRARY For use with your Arduino, an additional library is required first.
- Page 5 Possibility of return in your area: We will send you a parcel stamp with which you can return the device to us free of charge. Please contact us by e-mail at Service@joy-it.net or by telephone. Information on packaging: If you do not have suitable packaging material or do not wish to use your own, please contact us and we will send you suitable packaging.
- Page 6 Wireless Gamepad SUPPORT We also support you after your purchase. If you still have questions or problems, we are also available by e-mail, telephone and ticket support system. E-Mail: service@joy-it.net Ticket-System: http://support.joy-it.net Telephone: +49 (0)2845 98469 – 66 (11- 18 o‘clock) For further information please visit our website: www.joy-it.net...
