- Page 1 R 1 H I GH -F I D ELI TY ST ER EO R E VER B INS TRUCTION MANUAL...
- Page 2 The R1 is an extremely powerful and versatile multi- function reverb with six customized, studio-quality programs - Spring, Hall, Plate, BFR, RFRCT (Refract), and Air. Every program has the option to be tuned and tweaked from short and subtle room sounds to massive washes of experimental euphoria.
- Page 3 Input Left Output Left (mono) (mono) Output Right Input Right Preset LED Bypass LED Bypass Switch Sustain/Latch Switch *The use of an isolated power supply is recommended for powering all Walrus Audio Pedals. Daisy chain power supplies are not recommended.
- Page 4 REVERB PROGRAMS Spring - The Spring program emulates an excited spring reverb commonly found in tube amps with loads of bouncy drip. Easily go from subtle to full-on surf rock and beyond. Experiment with the decay knob to get more than normal amounts of reverb not found in traditional amp spring reverb tanks. X knob adds a gentle, warm overdrive to the reverb input simulating overdriving the spring tank.

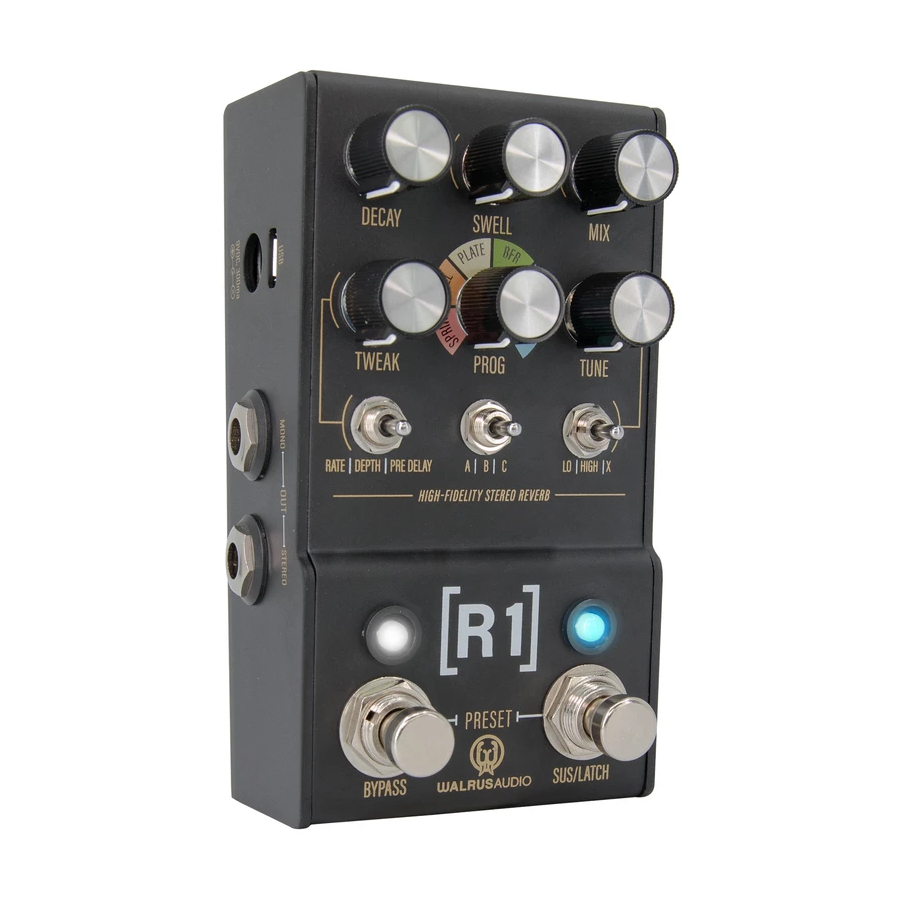

- Page 5 CONTROLS Decay - The Decay knob sets the length of the reverb decay. Set this control low for short natural sounding decays or higher for longer more ethereal sounding reverbs. Swell - The Swell knob engages a volume envelope applied to your wet and dry guitar signal as it passes through the R1 creating a gentle volume swell.
- Page 6 CONTROLS Prog (Program) - The Prog knob selects the desired R1 delay program. See the Program section for more details about each reverb program. Tune - The Tune knob and switch offer creative control over three additional parameters that allow further shaping of each reverb program.
- Page 7 Bypass LED - Indicates if the pedal is on or off by illuminating solid when on, and off when the pedal is off. Sus/Latch Switch - The Sus/Latch switch allows you to momentarily sustain the current reverb sound by pressing and holding on the switch. You can also latch the sound by clicking this switch on and click again to unlatch.
- Page 8 o To recall a preset: 1. First, select the bank of presets you want to access with the A|B|C switch. The pedal will automatically recall the red preset in that bank. 2. Next, scroll through the presets in that bank by pressing both stomp switches at the same time.
- Page 9 MIDI The R1 is able to be controlled via standard MIDI messages. Simply connect your MIDI controller to the R1 MIDI “IN”. Downstream MIDI devices can be connected to the MIDI “THRU” which simply lets all incoming MIDI messages pass through to your other devices.
- Page 10 MIDI PRESET MIDI PROGRAM CHANGE (PC) Bank A (Red) Bank A (Green) Bank A (Blue) Bank B (Red) Bank B (Green) Bank B (Blue) Bank C (Red) Bank C (Green) Bank C (Blue) Accessible via MIDI 0-127 o MIDI CC – Most parameters on the R1 can be controlled via MIDI CC messages. The list below shows all applicable MIDI CC numbers and their associated parameters and control values.
- Page 11 UPDATES We occasionally may have new features and updates for the R1. These will be made available through: walrusaudio.io Scan the code below to be the first to know when any firmware updates are available.
- Page 12 WALRUSAUDIO.COM Got questions? customerservice@walrusaudio.com. Need a repair? repairs@walrusaudio.com All our pedals come with a limited lifetime warranty. Visit walrusaudio.com/pages/warranty-and-repair for more info.
