PurePower PP2100R Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PP2100R | PP3000R | PP3500R
OPERATOR'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PP2100R and is the answer not in the manual?

Questions and answers

Related Manuals for PurePower PP2100R

Summary of Contents for PurePower PP2100R

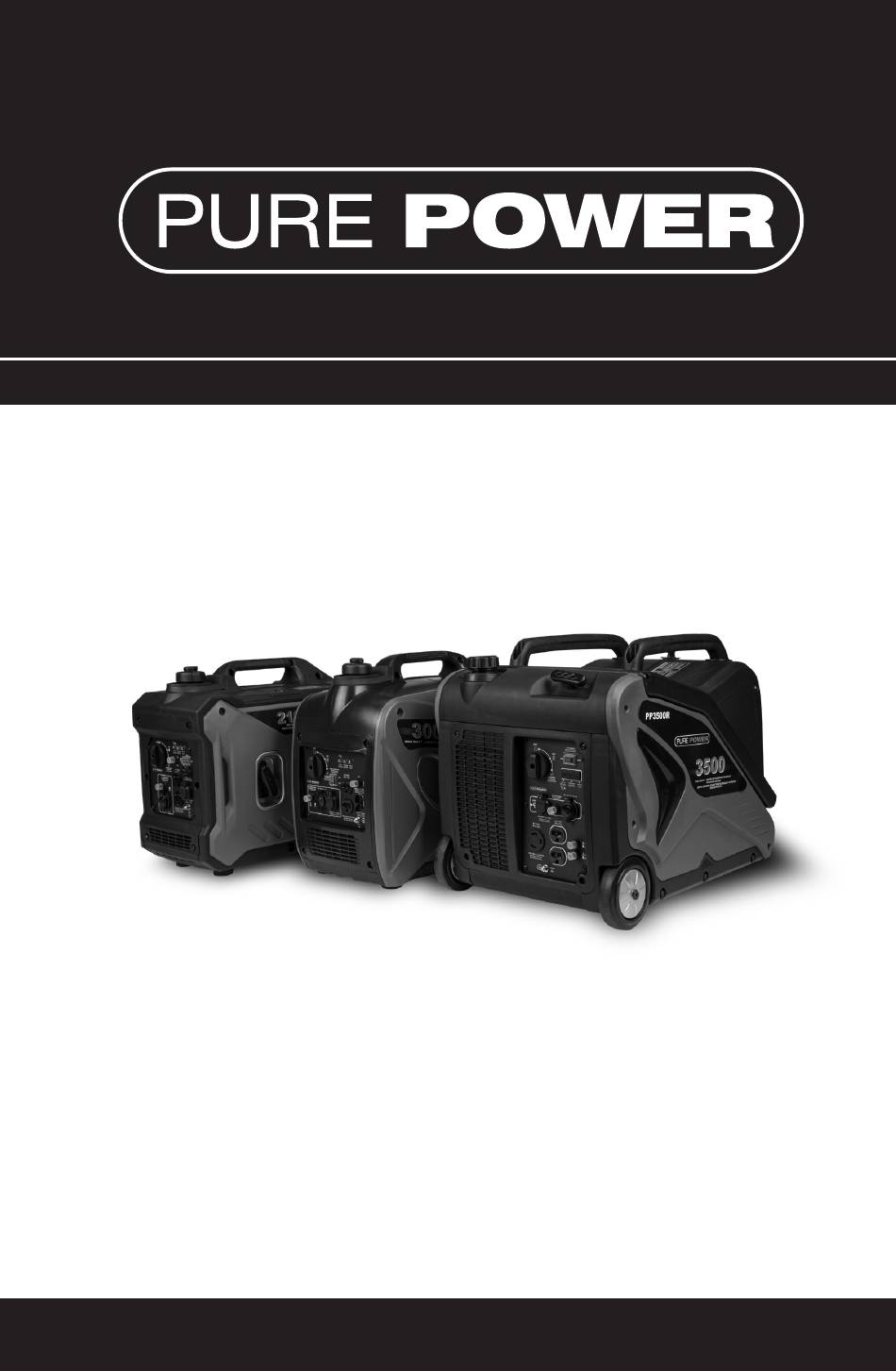

  • Page 1 PP2100R | PP3000R | PP3500R OPERATOR’S MANUAL...

  • Page 2: Table Of Contents

    Using The Operator’s Manual Identification Numbers SAFETY Safety Warnings Hazard Symbols Safety Information PRODUCT BREAKDOWN 11 PP2100R 12 PP3000R 13 PP3500R CONTROL FUNCTION 15 3-In-1 Switch Knob 15 Oil Warning Light (Red) 16 Overload Indicator Light (Red) 16 AC Pilot Light (Green)
  • Page 3 TABLE OF CONTENTS MAINTENANCE 29 Maintenance Schedule 31 Spark Plug Inspection 32 Carburetor Adjustment 32 Engine Oil Replacement 33 Air Filter 34 Muffler Screen And Spark Arrester 35 Fuel Tank Filter 35 Fuel Filter STORAGE 36 Drain The Fuel 37 Engine TROUBLESHOOTING 37 Engine Won’t Start 37 Generator Won’t Produce Power...

  • Page 4: Introduction

    INTRODUCTION Attention: Read through the complete manual prior to the initial use of your generator. USING THE OPERATOR’S MANUAL The operating manual is an important part of your generator. It should be read thoroughly before initial use, and referred to often to make sure adequate safety and service concerns are being addressed.

  • Page 5: Safety

    SAFETY SAFETY WARNINGS This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. The safety alert symbol ( ) is used with a signal word (DANGER, CAUTION, WARNING), a pictorial and/or a safety message to alert you to hazards.

  • Page 6: Safety Information

    SAFETY SAFETY INFORMATION Read and understand this owner’s manual before operating your generator. It will help you avoid accidents if you get familiar with your generator’s safe operation procedures. WARNING Generator exhaust contains carbon monoxide, a poisonous gas that can kill you. You CANNOT smell or see this gas.
  • Page 7 SAFETY WARNING Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. WHEN ADDING OR DRAINING FUEL • Observe all safety regulations for the safe handling of fuel. Handle fuel in safety containers. If the container does not have a spout, use a funnel.
  • Page 8 SAFETY WARNING THERE IS A PERMANENT CONDUCTOR BETWEEN THE GENERATOR (STATOR WINDING) AND THE FRAME. If the generator should malfunction, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. • This generator is equipped with a grounding terminal for added protection.
  • Page 9 SAFETY WARNING • Turn the generator “OFF” when adding fuel. • Keep children and pets away from the area of operation. Do not place flammable objects close to the exhaust when generator operation. Keep it at least 3 feet away from inflammables. •...
  • Page 10 SAFETY • Pay attention to the wiring or extension cords from the generator to the connected device. If the wire is under the generator or in contact with vibrating part, it may break and possibly cause a fire, generator burnout, or electric shock hazard. Replace damaged or worn cords immediately.

  • Page 11: Product Breakdown

    PRODUCT BREAKDOWN PP2100R 1. Carrying Handle 6. Oil Filler Cap 2. Fuel Tank Cap Air Vent Knob 7. Louver 3. Fuel Tank Cap 8. Muffler 4. Control Panel 9. Spark Plug Maintenance Cover 5. Recoil Starter LOW OIL OVERLOAD OUTPUT...

  • Page 12: Pp3000R

    PRODUCT BREAKDOWN PP3000R 1. Carrying Handle 6. Oil Filler Cap 2. Fuel Tank Cap Air Vent Knob 7. Louver 3. Fuel Tank Cap 8. Muffler 4. Control Panel 9. Spark Plug Maintenance Cover 5. Recoil Starter ESC SWITCH CEV INTERRUPTEUR CEV INTERRUPTOR AC 120V MAX.

  • Page 13: Pp3500R

    PRODUCT BREAKDOWN PP3500R SW ITC ES C INTE INTE 12 0V 26 A Ma x. 1. Carrying Handle 5. Control panel 2. Fuel Tank Cap 6. Handle Relase Knob 3. Recoil Starter 7. Carry Handle 4. Oil Filler Cap (Remove Panel) 8.
  • Page 14 PRODUCT BREAKDOWN PP3500R ESC SWITCH CEV INTERRUPTEUR CEV INTERRUPTOR AC 120V Max. 26A...

  • Page 15: Control Function

    AC 120V CEV INTERRUPTEUR MAX. 20A CEV INTERRUPTOR CHOKE AC 120V STARTER ESTÁRTER MAX. 15A PARALLEL CONNECT PP2100R PP3000R PP3500R CONNEXION PARALLÈLE DC BREAKER CONEXIÓN PARALELA DISJONCTEUR DC DISYUNTOR DC (1) Engine switch\fuel valve “OFF” Ignition circuit and Fuel is currently switched OFF. The engine will not run.

  • Page 16: Overload Indicator Light (Red)

    MAX. 15A PARALLEL CONNECT CONNEXION PARALLÈLE DC BREAKER CONEXIÓN PARALELA DISJONCTEUR DC DISYUNTOR DC PP2100R PP3000R PP3500R The overload indicator light (2) comes on when an overload of a SYSTEM FLOATING SYSTÈME FLOTTANT SISTEMA FLOTANTE connected electrical device is detected, the inverter control unit NEUTRAL FLOATING overheats, or the AC output voltage rises.

  • Page 17: Dc Protector

    ESC SWITCH CEV INTERRUPTEUR CEV INTERRUPTOR AC 120V MAX. 20A AC 120V PP2100R PP3000R PP3500R Max. 26A CAUTION Reduce the load of the connected electric device below the specified rated output of the generator if the DC protector turns off. If the DC protector turns off again, stop using the device immediately and consult our company authorized dealer.

  • Page 18: Fuel Tank Cap

    CEV INTERRUPTOR AC 120V MAX. 20A GROUND TERMINAL AC 120V Max. 26A PP2100R PP3000R PP3500R Ground terminal (1) connects the earth line to reduce the risk of elec- tric shock. When the electric device is grounded, always ground the generator.

  • Page 19: Preparation

    PREPARATION GROUNDING INSTRUCTIONS DANGER Improper connection of the equipment grounding conductor can result in a risk of electrocution. Check with a qualified electrician if you are in doubt as to whether the unit is properly grounded for your local regulations. The ground terminal on the frame can be used to connect the generator to a suitable ground source.

  • Page 20: Fueling

    Remove the fuel tank cap and fill the fuel into the tank up to the red level. (1) Red line (2) Fuel level Recommended fuel: Unleaded gasoline Fuel tank capacity: Total: 4.0L / 1.06 US gal (PP2100R, PP3000R) Total: 7.0L / 1.84 US gal (PP3500R)

  • Page 21: Engine Oil

    5. Install the cover and tighten the screws. Recommended engine oil: SAE 10 or low-30 Recommended engine oil grade: API Service SE type or higher Engine oil quantity: 350mL (PP2100R) 450mL (PP3000R) 500mL (PP3500R)

  • Page 22: Pre-Operation Check

    PREPARATION PRE-OPERATION CHECK WARNING • If any item in the Pre-operation check is not working properly, have it inspected and repaired before operating the generator. • The condition of a generator is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpectedly, even if the generator unused.

  • Page 23: Operation

    PTEUR PTOR INTERRU 120V Max. PP2100R PP3000R PP3500R TIP: Grasp the carrying handle (5) firmly to prevent the generator from falling over when pulling the recoil starter. 5. After the engine starts, warm up the engine for 30 seconds, then turn choke (6) to ON.

  • Page 24: Stopping The Engine

    OPERATION STOPPING THE ENGINE TIP: Turn off any electric devices. 1. Turn the ESC to “OFF” (Page 17). 2. Disconnect any electric devices. 3. Turn the 3-in-1 switch to “OFF” (2) a. Ignition circuit is switched off. b. Fuel is switched off. LOW OIL OVERLOAD OUTPUT...

  • Page 25: Alternating Current (Ac) Connection

    OPERATION ALTERNATING CURRENT (AC) CONNECTION WARNING Be sure any electric devices are turned off before plugging them in. NOTICE • Be sure all electric devices including the lines and plug connections are in good condition before connection to the generator. •...
  • Page 26 OPERATION NOTICE • Be sure the ESC is turned OFF while charging the battery. • Be sure to connect the red battery charger lead to the positive (+) battery terminal, and connect the black lead to the negative (-) battery terminal. Do not reverse these positions. •...

  • Page 27: Application Range

    CHOKE AC 120V STARTER ESTÁRTER MAX. 15A PARALLEL CONNECT CONNEXION PARALLÈLE DC BREAKER CONEXIÓN PARALELA DISJONCTEUR DC DISYUNTOR DC PP2100R PP3000R PP3500R SYSTEM FLOATING SYSTÈME FLOTTANT SISTEMA FLOTANTE NEUTRAL FLOATING NEUTRE FLOTTANT NEUTRO FLOTANTE GROUND DC 12V MAX 8.3A SOL / TIERRA AC 120V Max.
  • Page 28 OPERATION NOTICE • Do not overload. The total load of all electrical appliances must not exceed the supply range of the generator. Overloading will damage the generator. • When supplying precision equipment, electronic controllers, PCs, Electronic computers, microcomputer based equipment or battery chargers, keep the generator a sufficient distance away to prevent electrical interference from the engine.

  • Page 29: Maintenance

    MAINTENANCE MAINTENANCE SCHEDULE The engine must be properly maintained to ensure its operation is safe, economical and trouble-free, as well as eco-friendly. In order to keep your gasoline engine in good working condition, it must be periodically serviced. The following maintenance schedule and routine inspection procedures must be carefully followed: Thereafter, Every year...
  • Page 30 MAINTENANCE NOTICE • If the gasoline engine frequently works under high temperature or heavy load, change the oil every 25 hours. • If the engine frequently works under dusty or other severe circumstances, clean the air filter element every 10 hours; If necessary, change the air filter element every 25 hours.

  • Page 31: Spark Plug Inspection

    The spark plug is an important engine component, which should be checked periodically. 1. Remove the cap (1) Use the tool (3) remove the spark plug cap (2), and Insert the tool through the hole from the outside of the cover. PP2100R PP3000R PP3500R PP2100R PP3000R 2.

  • Page 32: Carburetor Adjustment

    Stop the engine and turn the 3-in-1 switch knob, fuel tank cap air vent knob to “OFF”. 2. Remove the screws (1) and then remove the cover (2). PP2100R PP3000R PP3500R 3. Remove the oil filler cap (3).

  • Page 33: Air Filter

    8. Install the oil filler cap. 9. Install the cover and tighten the screws. AIR FILTER 1. Remove the screws (1), and then remove the cover (2). PP2100R PP3000R PP3500R 2. Remove the screw (3) and then remove the air filter case cover (4).

  • Page 34: Muffler Screen And Spark Arrester

    MAINTENANCE The engine should never run without the foam element; excessive piston and cylinder wear may result. 7. Install the air filter case cover in its original position and tighten the screw. 8. Install the cover and tighten the screws. MUFFLER SCREEN AND SPARK ARRESTER WARNING The engine and muffler will be very hot after the engine has been...

  • Page 35: Fuel Tank Filter

    MAINTENANCE TIP: Align the spark arrester projection (7) with the hole (8) in the muffler pipe. 6. Install the muffler screen and the muffler cap. 7. Install the cover and tighten the screws. FUEL TANK FILTER WARNING • Never use the gasoline while smoking or in the vicinity of an open flame.

  • Page 36: Storage

    STORAGE Long term storage of your machine will require some preventive procedures to guard against deterioration. DRAIN THE FUEL 1. Turn the 3-in-1 switch to “OFF” . LOW OIL OVERLOAD OUTPUT 2. Remove the fuel tank cap, remove the HUILE FAIBLE SURCHARGE SORTIE ACEITE BAJO...

  • Page 37: Engine

    TROUBLESHOOTING ENGINE Perform the following steps to protect the cylinder, piston ring, etc. from corrosion. 1. Remove the spark plug, pour about one tablespoon of SAE 10W-30 oil into the spark plug hole and reinstall the spark plug. Recoil start the engine by turning over several times (with 3-in-1 switch knob off) to coat the cylinder walls with oil.

  • Page 38: Specifications

    SPECIFICATIONS SPECIFICATIONS DESCRIPTION PP2100R PP3000R PP3500R Peak Starting 2100 3000 3500 Running Watts 1600 2300 2800 Volts Frequency 60HZ 60HZ 60HZ Noise Level 68DB 67DB 69DB Parallel Capability DC Operation Voltmeter Automatic Voltage Regulation Battery Start Type PULL/RECOIL PULL/RECOIL PULL/RECOIL...

  • Page 39: Parallel Function

    PARALLEL FUNCTION PARALLEL FUNCTION INSTRUCTIONS PP2100R LOW OIL OVERLOAD OUTPUT LOW OIL OVERLOAD OUTPUT HUILE FAIBLE SURCHARGE SORTIE HUILE FAIBLE SURCHARGE SORTIE ACEITE BAJO SOBRECARGA SALIDA ACEITE BAJO SOBRECARGA SALIDA ESC SWITCH ESC SWITCH CEV INTERRUPTEUR CEV INTERRUPTEUR CEV INTERRUPTOR...

  • Page 40: Warranty

    WARRANTY CALIFORNIA AND FEDERAL EXHAUST AND EVAPORATIVE EMISSIONS CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS The California Air Resources Board, the United States Environmental Protection Agency and Chongqing Rato Technology Co., Ltd. (Rato), are pleased to explain the exhaust and evaporative (“emissions”) control system warranty on your small off-road engine/equipment.
  • Page 41 WARRANTY You are responsible for presenting your small off-road engine/equipment to a Rato distribution center or service center as soon as the problem exists. The warranty repairs shall be completed in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding your warranty rights and responsibilities, you should contact BE POWER EQUIPMENT at 1-800-663-8331 (free phone) or Email at info@bepressure.com...
  • Page 42 WARRANTY 5. Notwithstanding the provisions of Subsection (4) above, warranty services or repairs must be provided at distribution centers that are franchised to service the subject engine/equipment. 6. The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective, provided that such diagnostic work is performed at a warranty station.
  • Page 43 WARRANTY 6. Catalyst or Thermal Reactor System • Catalytic converter. • Thermal reactor. • Exhaust manifold. 7. Particulate Controls • Traps, filters, precipitators, and any other device used to capture particulate vemissions. 8. Miscellaneous Items Used in Above Systems • Electronic controls. •...
  • Page 44 If you need assistance with the assembly or operation of your Inverter Generator please email info@purepowerequipment.ca WWW.PUREPOWEREQUIPMENT.COM 2020/06...
