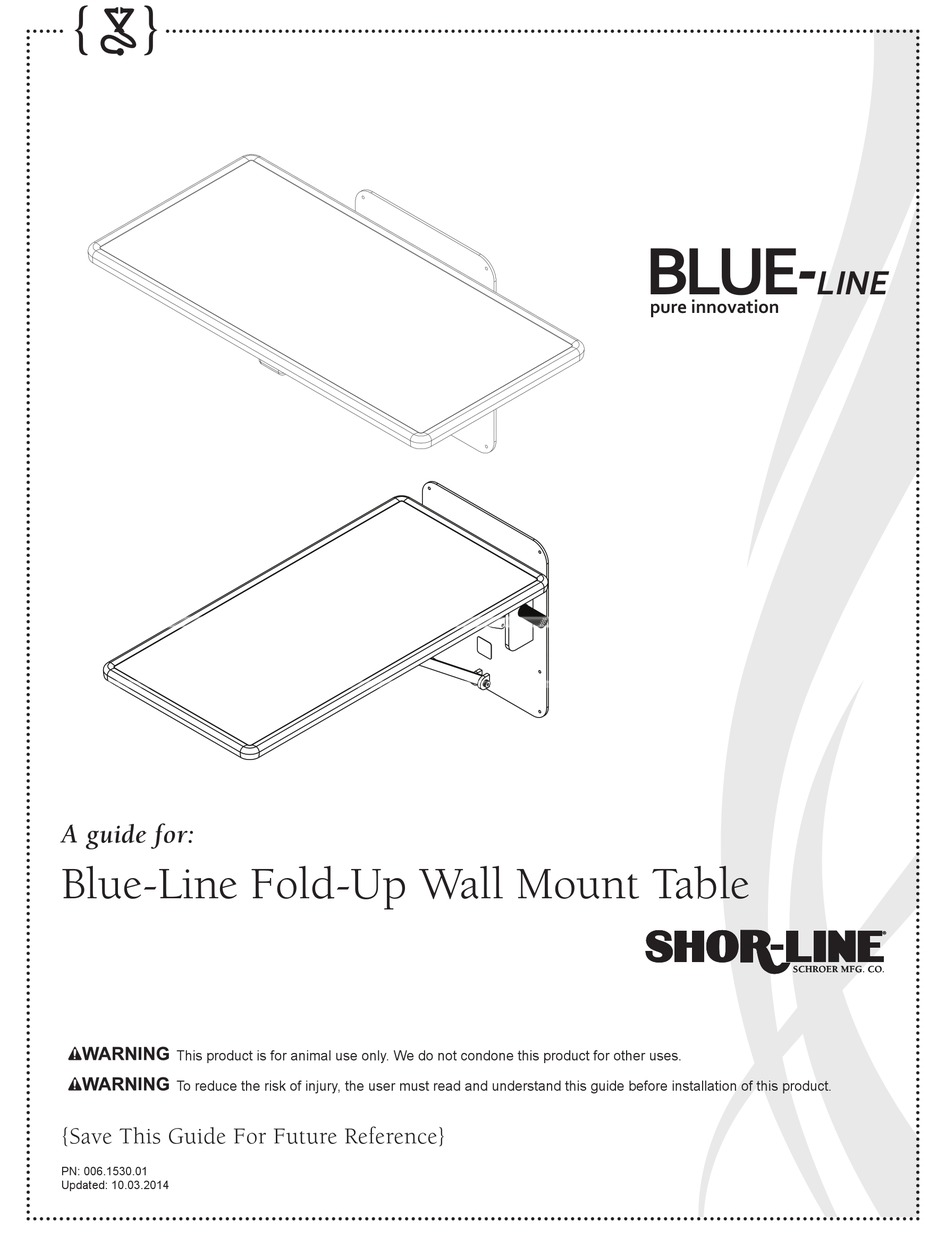

- Page 1 BLUE - LINE pure innovation A guide for: Blue-Line Fold-Up Wall Mount Table This product is for animal use only. We do not condone this product for other uses. To reduce the risk of injury, the user must read and understand this guide before installation of this product. {Save This Guide For Future Reference} PN: 006.1530.01 Updated: 10.03.2014...
- Page 2 Introduction Thank you for purchasing Shor-Line products. As a leader in animal care equipment, our commitment to you is exactly the same as it was in 1927. We hope this guide answers any questions you might have in regards to use, care or installation. If you can’t find the answers to your questions, have further questions or would like to purchase additional products, please contact us at 800.444.1579 or 913.281.1500.
-
Page 3: Table Of Contents
• Blue-Line Fold-Up Wall Mount Table, Peninsula - Jade Item # 903.1531.05 • Blue-Line Fold-Up Wall Mount Table, Peninsula - Taupe Gray Item # 903.1531.06 • Blue-Line Fold-Up Wall Mount Table, Peninsula - Black Item # 903.1531.07 Shor-Line 800.444.1579 www.shor-line.com... -
Page 4: Section 1: Unpacking & Inspecting Shipment
Step 1 Locate the Packing Slip that describes the parts and quantities shipped. Your Blue-Line Fold-Up Wall Mount Table should be carefully examined upon arrival for possible damage in shipment. If any damage is found, notify Shor-Line immediately. Your Blue-Line Fold-Up Wall Mount Table comes fully assembled. -
Page 5: Features Of The Blue-Line Fold-Up Wall Mount Table, Lateral
5.5" from the wall when folded up. Table is easily mounted to any standard 2" x 4" reinforced wooden stud wall with 16” stud centers. Also compatible with our Stainless Steel Utility Chase. Table mounting template included (not shown). 006.1130.04.01 Shor-Line 800.444.1579 www.shor-line.com... -
Page 6: Features Of The Blue-Line Fold-Up Wall Mount Table, Peninsula

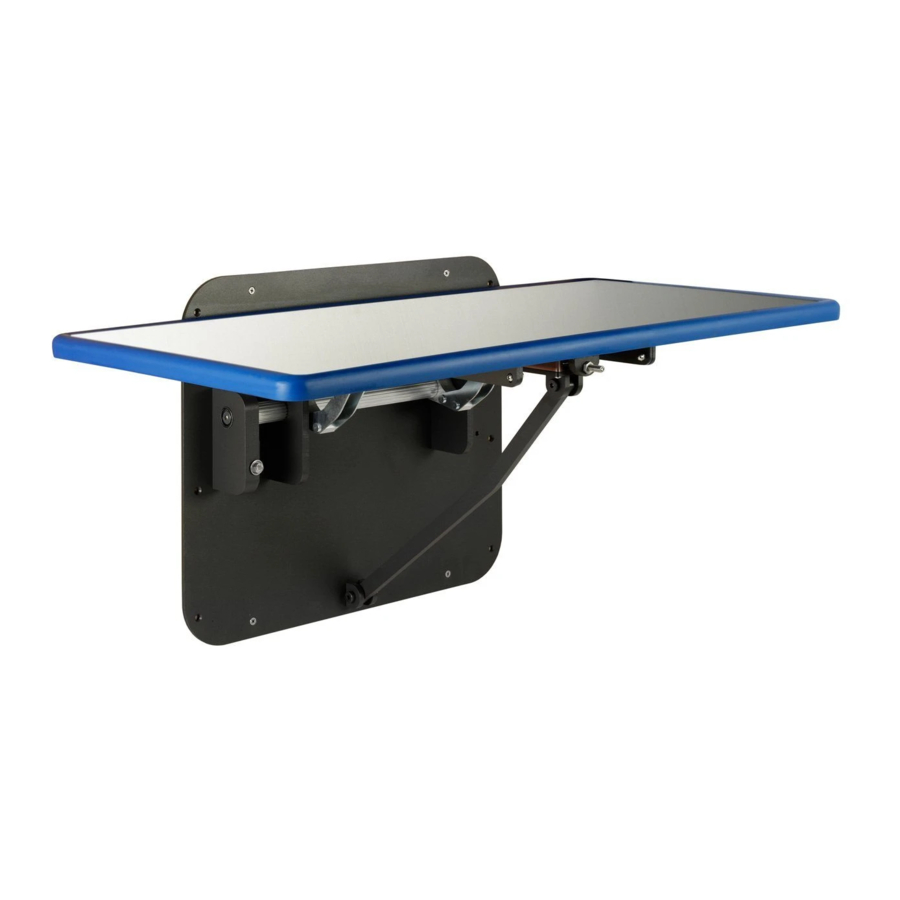

{Features of the Blue-Line Fold-Up Wall Mount Table, Peninsula} Blue-Line Fold-Up Wall Mount Table, Peninsula Items: 903.1531.04 - .07 Stainless Steel Blue-Line Table Top is 44”L x 22”W x 1”H. From wall to end of table is 46". Actual table is 44". Blue-Line Table Top with radius corners and laminated polyurethane edging holds up to one liter of fluid. -
Page 7: Section 2: Replacement Parts
Quantity Needed Description Part Number Trimmed Top, Blue 300.1701.01 Trimmed Top, Black 300.1701.02 Trimmed Top, Jade 300.1701.03 Trimmed Top, Taupe Gray 300.1701.04 Bottom Cover 181.1530.00 Cam Right & Left, Peninsula 193.1531.02 Cam Right & Left, Lateral 193.1530.02 Shor-Line 800.444.1579 www.shor-line.com... -
Page 8: Section 3: Installing The Blue-Line Fold-Up Wall Mount Table
DO NOT MOUNT THIS TABLE TO WALLS WITH METAL STUDS UNLESS SUFFICIENT WALL REINFORCEMENT HAS BEEN INSTALLED BY A QUALIFIED MECHANICAL CONTRACTOR. For assistance, contact Shor-Line with details of your installation. Step 2 Have a qualified technician locate the reinforced wooden wall studs using a stud finder. The table has mounting holes for 16"... - Page 9 FURTHER RELEASES AND AGREES TO INDEMNIFY, DEFEND AND HOLD HARMLESS SCHROER MANUFACTURING FOR, FROM AND AGAINST ANY AND ALL CLAIMS,DAMAGES,LOSSES,LIABILITIES, COSTS OR EXPENSES (INCLUDING ATTORNEYS' AND EXPERTS FEES) ARISING OUT OF OR RELATED TO SUCH MODIFICATIONS TO THE PROD 4/9/2012 5.5 MAX 18.0 VIEW FOLDED UP Shor-Line 800.444.1579 www.shor-line.com...
- Page 10 NOTE: CUSTOMER IS SUPPLIED WITH A FULL SCALE TEMPLATE TO ASSIST IN MOUNTING TABLE. TABLE CAN MOUNT TO 16" STUD CENTER WALLS. EIGHT LAG SCREWS (06.1425.02 #14 X 2-1/2") ARE PROVIDED WEIGHT CAPACITY = 200 LBS Fig. 3B 22.8 TABLE TOP 16.0 18.0 FLOOR...
-
Page 11: Adjustment Instructions
Step 4 While holding the set screw in place with the allen wrench, tighten the jam nut with the " Wrench. Shor-Line 800.444.1579 www.shor-line.com {11}... -
Page 12: Appearance & Life Of The Polyurethane Edge
IMPORTANT: Routine maintenance will ensure quality and life of your long-term investment and protect animals from transmittable disease and infection. IMPORTANT: To safeguard your investment and rights to the Shor-Line’s Warranty, it is important that you know factors that degrade the polyurethane edging. Permanent damage to the edge due to corrosion, pitting or discoloration can occur from: •... -
Page 13: Section 5: Stainless Steel Care & Cleaning
IMPORTANT: Routine maintenance will ensure quality and life of your long-term investment and protect animals from transmittable disease and infection IMPORTANT: To safeguard your investment and rights to the Shor-Line's Warranty, it is important that you know factors that degrade stainless steel. Corrosion, pitting, and discoloration can occur if: •... -
Page 14: Protecting Against Disease & Infection
{Protecting Against Disease & Infection} IMPORTANT: Shor-Line shares your commitment to health and safety. This information is intended help protect your animals, as well as, safeguard your investment. • Bleaches can be harmful to animals. Bleaches can react with acids and release chlorine gas that is highly toxic. -
Page 15: Section 6: Services, Terms & Conditions, Warranty
(15) days after receipt of the goods will not be allowed. No products will be taken back and credited or replaced unless arrangements for their return have been made in compliance with Seller’s Return Policy stated below. SEE SELLER’S CATALOG FOR INFORMATION ON HOW TO FILE A FREIGHT CLAIM. Shor-Line 800.444.1579 www.shor-line.com... -
Page 16: Product Satisfaction
PRODUCT SATISFACTION In the event Buyer is not fully satisfied with the quality or workmanship of a product purchased hereunder, Seller in its sole discretion may arrange either to credit Seller’s account (excluding shipping and handling costs) or replace the product. However, Buyer must notify Seller in writing of its dissatisfaction within fifteen (15) days of receipt of the product from Seller and immediately discontinue its use. -
Page 17: Return Policy
CONDITIONS found to be invalid, illegal or unenforceable, shall be considered inoperative and the remaining TERMS AND CONDITIONS shall be valid and enforceable as though such provisions are not included herein. Contact our Credit Department toll-free for questions: 800.444.1579 Shor-Line 800.444.1579 www.shor-line.com... - Page 18 444.1579 281.1500 281.5339 Shor-Line/Schroer Manufacturing Co. 511 Osage Avenue Kansas City, KS 66105 U.S.A. www.shor-line.com...
