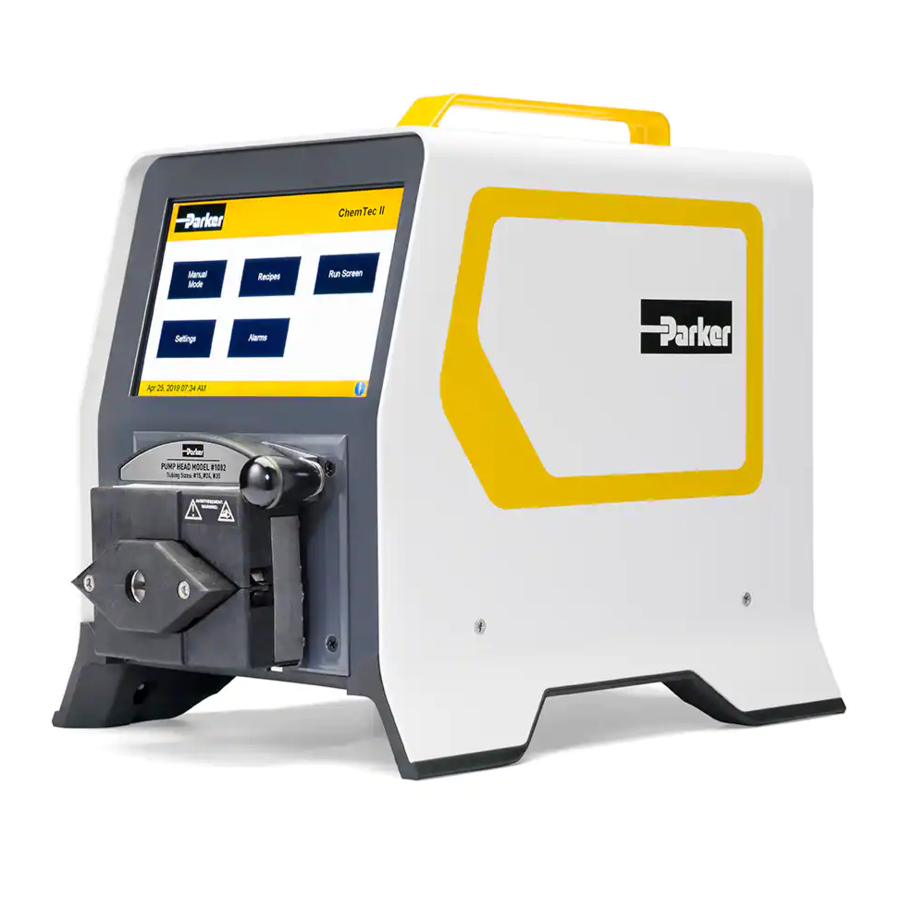

Parker ChemTec II Installation, Operating,  & Maintenance Instructions

Parker ChemTec II Installation, Operating, & Maintenance Instructions

Programmable metering pump

Advertisement

Quick Links

ChemTec II
Programmable Metering Pump
Installation, Operating & Maintenance Instructions
ENGINEERING
YOUR
SUCCESS.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ChemTec II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Parker ChemTec II

  • Page 1 ChemTec II Programmable Metering Pump Installation, Operating & Maintenance Instructions ENGINEERING YOUR SUCCESS.
  • Page 2 Parker Hannifin Corporation. Parker Hannifin Corporation has a continuous policy of product development and although the Company reserves the right to change specification, it attempts to keep customers informed of any alterations. This publication is for general information only and customers are requested to contact contact your local Parker Sales Representative for detailed information and advice on a product’s suitability for specific applications.
  • Page 3: Table Of Contents

    Start-up: Simple pH Maintenance of a “Base” reaction ............. 28 Front Display & Back Panel Interface ..................33 Settings ............................36 ChemTec II Manual Mode ......................41 ChemTec II Metering Applications ....................42 Bioreactor Feed Application - General Information ..............42 Linear, Volumetric Bioreactor Feed ....................
  • Page 4: Precautions

    ALWAYS DISCONNECT this equipment from the power source before cleaning or performing maintenance. CALL Parker Customer Service for parts, information and service. WARNING DISCONNECT ALL POWER TO THIS UNIT BEFORE INSTALLING, SERVICING, CLEANING OR REMOVING THE FUSE. FAILURE TO DO SO COULD RESULT IN BODILY HARM AND/OR PROPERTY DAMAGE.
  • Page 5 équipement. DÉBRANCHEZ TOUJOURS cet équipement de la source de courant avant de nettoyer ou d’exécuter l’entretien. APPELEZ PARKER pour pièces détachées, renseignements et entretien. ATTENTION DÉBRANCHEZ TOUT COURANT DE CETTE UNITÉ AVANT DE FAIRE L’INSTALLATION, D’EFFECTUER L’ENTRETIEN, LE NETTOYAGE OU AVANT DE RETIRER LE FUSIBLE.
  • Page 6: Standards

    To remove dust, dirt and stains, the outer surfaces of the ChemTec II may be wiped down using a soft, non- fluffing cloth moistened with water. If required, you may also use a mild detergent or Isopropanol.
  • Page 7: Warranty

    +44 (0)191 4105312 email: bioscience.na@parker.com email: bioscience.emea@parker.com www.parker.com/bioprocessing www.parker.com/bioprocessing Parker customer service will be able to serve you more efficiently if you have the following information: • Serial number and model name of the equipment • Installation procedure being used •...
  • Page 8: Chemtec Ii Specifications

    • Pressure Range: The default pressure range of the sensors is 0-60psi. Most peristaltic pumps generate pressures up to 30 psi. If you have need for higher pressures, contact Parker Technical Support (bioscienceNA.TS@parker.com) for assistance. ELECTRICAL •...
  • Page 9: Chemtec Ii Software

    Control: Provides control of pH Maintenance and/or End Point Titration via connection to pH meter with 4-20 ma output. The ChemTec II can be controlled also in Manual Mode by % of motor speed. Pump settings and Alarms can be configured by the end user.
  • Page 10: Installation Of Documentation Software (Scidoc Ii) For Pc

    • Plug in your ChemTec II to power and connect it to your PC via an RS232 to USB adapter cable (PN 080- USB). This will automatically create a USB Serial Port with an assigned COM Port on Windows 10 once the drivers are downloaded off the Internet.
  • Page 11 SAMPLE SciDoc II Screens...
  • Page 12 SAMPLE SciDoc II Exports...
  • Page 13 button saves .jpg images of the charts at that time. button exports the data and charts as both an .xls file and a .txt file. Files are saved at C:\Serial Data Loggers by type. All files can be readily turned into PDFs. NOTE: The charts do not adjust their range automatically.
  • Page 14: Start-Up: Volume Flow Metering Into A Bioreactor

    Unpack all the components, visually identify and inspect for damage. At the bench, place the Media reservoir to the far left. To the right of the bench, position ChemTec II, and then the Bioreactor or Fermentor. Leave space between these items to allow for cables and tubing.
  • Page 15 Volume Flow Programming From the main screen: • Choose SETTINGS • Select TUBING • Confirm Motor RPM and head in the Tube Settings • Select the TUBE SIZE from the drop down, press SET Steps to enter a Volume Flow Recipe: •...
  • Page 16 New Volume Flow Recipe screen: This screen allows you to add new steps and/or edit and delete existing steps; access process alarms for editing and settings; Exit without a save or save and exit for prompts to save the recipe name. (The recipe name is limited to upper- and lower-case letters, numbers and dashes).
  • Page 17 Set a time for the step: • Click in the RUN TIME field, then enter time in hours, minutes and seconds • Select SET to add your new Volume Flow Rate Step to the recipe • Click SAVE AND EXIT NOTE: The above recipe is incorrect as it does not start with a step flow rate.
  • Page 18 The following screen illustrates the setting of low and high Solution (pumping from) and Reactor (pumping to) weight alarms and interlocks if scales are connected to monitor them. The choice of flow rate units is also configured here, either mL/min (default) or L/min. If not used, disregard this screen. •...
  • Page 19: Start-Up: Mass Flow Metering Into A Bioreactor

    ChemTec II and Bioreactor. Leave space between these items to allow for cables and tubing. Connect the interface cable between the ChemTec II and the scale, connecting it to the “S1” connector on the rear panel of the ChemTec II.
  • Page 20 Mass Flow Programming From the main screen: • Choose SETTINGS • Select TUBING • Confirm Motor RPM and head in the Tube Settings • Select the TUBE SIZE from the drop down, press SET Steps to enter a Mass Flow Recipe: •...
  • Page 21 New Mass Flow Recipe screen: This screen allows you to add new steps and/or edit and delete existing steps; access process alarms for editing and settings; exit without a save or save and exit for prompts to save the recipe name. The recipe name is limited to upper- and lower-case letters, numbers and dashes.
  • Page 22 Set a time for the step: • Click in the RUN TIME field, then enter time in hours, minutes and seconds • Select SET to add your new Mass Flow Rate Step to the recipe • Highlight any step to edit & delete as needed •...
  • Page 23 The following screen allows the setting of low and high Solution (pumping from) and Reactor (pumping to) weight alarms and interlocks if scales are connected to monitor both. The choice of flow rate units is also configured here, either gm/min (default), Kg/min or oz/min. •...
  • Page 24: Start-Up: Diafiltration, Or Maintenance Of Vessel Weight

    Unpack all the components, visually identify and inspect for damage. At the bench, place the buffer reservoir to the far left. To the right on the bench, position ChemTec II, and the scale with Retentate Vessel on it. Leave space between these items to allow for cables and tubing.
  • Page 25 Diafiltration programming From the main screen: • Choose SETTINGS • Select TUBING • Confirm Motor RPM and head in the Tube Settings • Select the TUBE SIZE from the drop down, press SET Steps to enter a Diafiltration Recipe: • Return to the main screen •...
  • Page 26 New Diafiltration Recipe Screen: • Select EDIT DIAFILTRATION PARAMETERS • Choose the TARGET SCALE from the drop down • If MAINTAIN CURRENT MASS is chosen, the value on the scale is displayed, and that value will be the target maintained. •...
  • Page 27 To initiate the process: • Select the Recipe from the list • Choose EXECUTE to initiate the Run Screen The Diafiltration Run Screen shows the ongoing process. The PRIME button can be used to prime lines, once to start, and again to stop. To control the process: •...
  • Page 28: Start-Up: Simple Ph Maintenance Of A "Base" Reaction

    Unpack all the components, visually identify and inspect for damage. At the pH bench, place the reagent reservoir to the far left. To the right of the bench, position ChemTec II, the reaction vessel, and pH meter with probe. Leave space between these items to allow for cables and tubing.
  • Page 29 If all is working as expected for an “Acid” reaction, acid is the reagent being added to bring the solution back to a neutral Setpoint of 7.0 pH, when the pH exceeds 7.10 (Tolerance = 0.1) the ChemTec II will begin to slowly dispense the Acid Reagent.
  • Page 30 pH Control programming From the main screen: • Choose SETTINGS • Select TUBING • Confirm Motor RPM and head • Choose the TUBE SIZE from the drop down, press SET Steps to enter a pH Control Recipe: • Return to the main screen •...
  • Page 31 New pH Control Recipe screen: • Choose EDIT pH CONTROL PARAMETERS and the next screen is displayed. • Under Solution Input Channel, select the SCALE from the drop down for the reagent solution (if applicable). This scale will be monitored on the run screen and an alarm can be set if desired. •...
  • Page 32 To start the process: Select recipe from list, press EXECUTE. The pH Control Run Screen shows the ongoing process. The PRIME button can be used to prime lines, once to start, and again to stop. To control the process: • Select START to begin the process •...
  • Page 33: Front Display & Back Panel Interface

    ChemTec II back panel interfacing ports • Printer: ChemTec II can be connected to a PC for data collection or to a Parker purchased Printer via the female DB9 RS-232 port labeled “Printer” with the included RS-232 to USB Adapter. Alternatively, the Printer Kit (PN 080-095A) can be connected here.
  • Page 34 Analog Connector Pin Out AI8- AI7- AI6- AI5- AI4+ AI3+ AI2+ AI1+ AI8+ AI7+ AI6+ AI5+ AI4- AI3- AI2- AI1- ANALOG INPUTS AND OUTPUTS Analog Inputs must be loop powered from the connected source. Input Channel 1 is typically used for pH Input connection.
  • Page 35 RELAY CONNECTOR PIN OUT These provide upper connections for Relays 1 – 3, and lower connections for Relays 4 – 6. These are 250 V, 8 Amp max, Normally Open relays. The relays may be closed programmatically and in Manual Mode. There are also connections for 24 VDC on the 7 small pins at the bottom of each connector that can be turned on and off programmatically and in Manual Mode.
  • Page 36: Settings

    The following outlines the options for each of the settings. SCALES Select SCALES and set the type of scale to be used for Scale 1, 2 or 3. Most modes on the ChemTec II will use only one or two scales. Choose between Ohaus, Mettler or Sartorius Scales.
  • Page 37 PRINTER The communication settings for the printer are preset to the defaults of the Thermal Printer sold by Parker, and for use with a PC. These should not be modified under normal conditions. Set the Printer interval to the desired value with a maximum of 60 minutes, 59 seconds.
  • Page 38 ANALOG INPUTS The ChemTec II is equipped with up to 8 Analog Input channels. Channel 1 is typically reserved for pH input but can be changed by pressing the button in the upper right and choosing a different one. Connection settings is used to allow specification of where hardware is attached, please check the appropriate box(s) and tap Set.
  • Page 39 ALARMS Selecting the ALARMS button brings up the Alarms page and allows you to access the I/O Alarm Configuration pages, the Alarm States screen, and the Alarm Log screen. Alarm States Displays the state of all alarms, both global and Mode based alarms. Green is enabled and normal, red is triggered.
  • Page 40 Digital Alarm Configuration Alarms may be configured for the Digital Inputs if connected. Digital Alarm 1 This alarm may be enabled or disabled and set to trigger if low or high. These inputs default to a high input and will trigger immediately if set to high, enabled, and not pulled low by the attached device.
  • Page 41: Chemtec Ii Manual Mode

    ChemTec II Manual Mode Manual Mode allows you to run the pump manually based on % of motor speed. You can change that by using the slider or tapping on the box and entering the desired value. The Prime button is a toggle, tap it to start, and again to stop, it will run at the set rate.
  • Page 42: Chemtec Ii Metering Applications

    Thus, the lowest mass-flow rate achievable with high performance balances is 0.03 to 0.04 grams per minute. To implement such low mass-flow rates, a ChemTec II equipped with an 8 RPM pump motor and a 1081 TANDEM pump head using #13 PharMed tubing is recommended.
  • Page 43: Linear, Volumetric Bioreactor Feed

    15.0 97.65 A ChemTec II CP-120 with a TANDEM 1081 peristaltic pump head (160 RPM pump motor) was used for this feed application. PharMed pump tubing #16 was chosen since it can generate flow rates from 4.6 ml/min. to 120 ml/min.
  • Page 44: Exponential Feed - Mass Flow, Example

    Interpolate from 1.75 gm/min to 2.39 gm/min over 12 hours, 30 minutes When executing the above program, the ChemTec II will generate an initial pump rate of 0.37 g/m, which is ramped up to 0.50 g/m during the first 12.5-hour segment. As shown in Figure 2, the six linear segments provide an excellent fit.
  • Page 45 Figure 2 Mass Flow, Rate vs. Time Mass flow y = 0.2701e 0.3114x R² = 1 12.5 37.5 62.5 Time, hours...
  • Page 46: Tubing Chart

    With the TANDEM pump head completely opened, locate the mounting holes for the two 8-32 cap screws inside the lower pump channel. On the front panel of the ChemTec II, locate the mounting holes and the slotted pump head coupler.
  • Page 47 The pump tubing section located in the TANDEM pump head should be advanced at regular time intervals if the ChemTec II is heavily used. Only use high-quality Parker or Masterflex™ pump tubing. NOTE: When advancing pump tubing, the used pump tube section must be moved to the pump discharge side, i.e.
  • Page 48: Rh Series Pump Head Installation And Maintenance

    Remove the two screws (6-32 x ½ RH) from underneath the ChemTec II between and just behind the front feet. Remove the four screws (6-32 x 3/8” FH) from the face plate at the front of the ChemTec II. Carefully remove the pump/motor subassembly from the ChemTec II. Disconnect the motor cable from the pc board making note of how it was connected before completely removing it from the chassis.
  • Page 49 Set the knurled Adjustment Ring to the “400-450” range. The ChemTec II FM-200 together with either a RH0 or RH1 can handle fluid viscosities up to 2000 cps. Viscosities of up to 10,000 cps can be pumped when the fluid reservoir and /or feed line connected to...
  • Page 55: Magnetic Gear Pump Head Installation And Maintenance

    Magnetic Gear Pump Head Installation and Maintenance Magnetic Gear Pump Heads- General Information The ChemTec II MP-320 is equipped with a Magnetic Gear pump head and is recommended for metering applications requiring pulse-free flow. These are external gear type heads in which the spur gears rotate and intermesh inside the chamber, thereby creating a pressure differential between the inlet and outlet ports of the pump.
  • Page 56 Magnetic gear heads have self-priming capabilities when they are new. The ability to self-prime is dependent on the fluid being pumped, your operating system conditions, and the pump model being used, and how long the pump has been in service. If the pump self-priming capability of the magnetic gear pump heads in use has diminished or stopped due to wear, flooding the head will get the fluid moving again as this capability is greatly increased when the gears are wet.
  • Page 67: Notes

    Notes...
  • Page 68 Parker Hannifin Corporation Parker Hannifin Manufacturing Ltd © 2019 Parker Hannifin Corporation. Bioscience Filtration Bioscience Filtration All rights reserved. Durham Road 2340 Eastman Avenue Oxnard, California, USA 93030 Birtley, Co. Durham toll free: 877 784 2234 DH3 2SF, England IOMI-AE2-003-1B...
