Uniprise Solutions

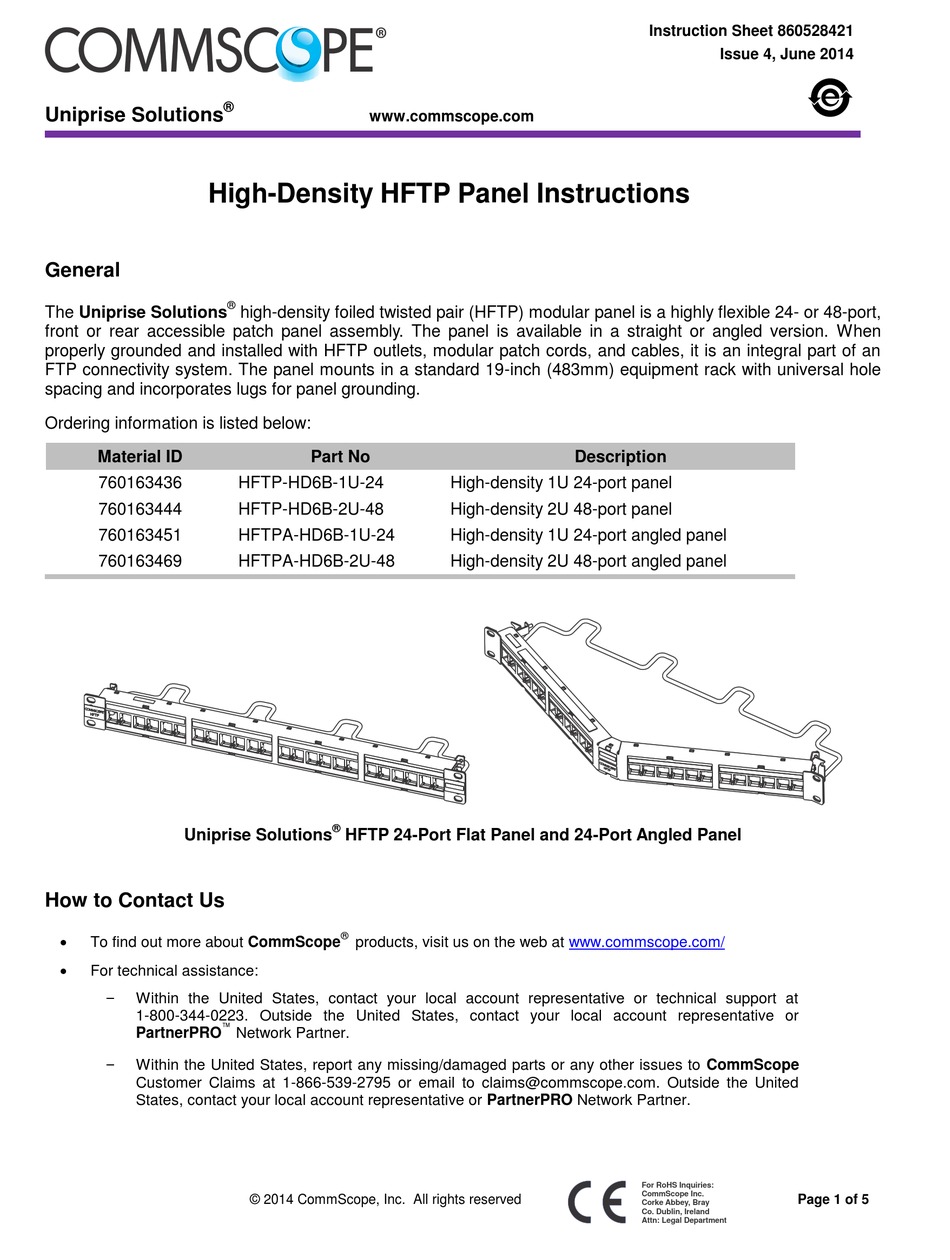

High-Density HFTP Panel Instructions
General
The Uniprise Solutions
front or rear accessible patch panel assembly. The panel is available in a straight or angled version. When
properly grounded and installed with HFTP outlets, modular patch cords, and cables, it is an integral part of an
FTP connectivity system. The panel mounts in a standard 19-inch (483mm) equipment rack with universal hole
spacing and incorporates lugs for panel grounding.
Ordering information is listed below:
Material ID
760163436
760163444
760163451
760163469
Uniprise Solutions
How to Contact Us
To find out more about CommScope
For technical assistance:
-
Within the United States, contact your local account representative or technical support at
1-800-344-0223. Outside the United States, contact your local account representative or
PartnerPRO
-
Within the United States, report any missing/damaged parts or any other issues to CommScope
Customer Claims at 1-866-539-2795 or email to claims@commscope.com. Outside the United
States, contact your local account representative or PartnerPRO Network Partner.
®
www.commscope.com
®
high-density foiled twisted pair (HFTP) modular panel is a highly flexible 24- or 48-port,
Part No
HFTP-HD6B-1U-24
HFTP-HD6B-2U-48
HFTPA-HD6B-1U-24
HFTPA-HD6B-2U-48
®
HFTP 24-Port Flat Panel and 24-Port Angled Panel
®
products, visit us on the web at
™
Network Partner.
© 2014 CommScope, Inc. All rights reserved
Description
High-density 1U 24-port panel
High-density 2U 48-port panel
High-density 1U 24-port angled panel
High-density 2U 48-port angled panel
www.commscope.com/
Instruction Sheet 860528421
Issue 4, June 2014
For RoHS Inquiries:
CommScope Inc.
Page 1 of 5
Corke Abbey, Bray
Co. Dublin, Ireland
Attn: Legal Department
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CommScope Uniprise Solutions HFTP-HD6B-1U-24
Summary of Contents for CommScope Uniprise Solutions HFTP-HD6B-1U-24
- Page 1 ™ PartnerPRO Network Partner. Within the United States, report any missing/damaged parts or any other issues to CommScope Customer Claims at 1-866-539-2795 or email to claims@commscope.com. Outside the United States, contact your local account representative or PartnerPRO Network Partner. For RoHS Inquiries: CommScope Inc.
-
Page 2: Tools Required
860528421 www.commscope.com Instruction Sheet Tools Required Phillips head screwdriver Parts List Verify parts against the parts list below: Quantity 24-Port Panel 48-Port Panel 24-Port Angled 48-Port Angled Description (1U) (2U) Panel (1U) Panel (2U) (760163436) (760163444) (760163451) (760163469) ―... - Page 3 860528421 Issue 4, June 2014 Step 2 –Install Rear Cable Manager 1. Attach cable bar to panel as shown. For 48-port panels, two cable bars are provided. Step 3 –Populate Panel with Outlets and Connect Ground 24-Port Panel Ground 1.
- Page 4 860528421 www.commscope.com Instruction Sheet 4. For 48-port panels, use two of the four grounding lug connections provided on rear of panel and hex nut with lock washer, as shown, to ground the panel per approved local practices. Tighten hex nut from 10 to 13 in-lbs (1.1 to 1.5 Nm).
- Page 5 860528421 Issue 4, June 2014 Step 5 –To Remove an Outlet from Panel Flat-blade screwdriver Locking tabs 1. Insert a small, flat-blade screwdriver or other small, blunt-end tool in between locking tab and side of outlet as shown to release it. Disengaging one tab will release outlet.
