Tyco Electronics PIDG Series Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended-use, production operations is available.
Die Assembly 2063030-1
(Replaceable Item)
PRODUCT
LINE
PIDG or PIDG or
PLASTI-GRIP
T Terminals i l
PIDG FASTON*
Terminals

1. INTRODUCTION

This instruction sheet provides application and
maintenance procedures for the Premium RBY Die
Set and Locator Assembly 2063030–1 for PIDG and
PLASTI–GRIP Red / Blue / Yellow Terminals. See
Figure 1.
E
2008 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
Premium RBY Die Set and Locator
Assembly for PIDG* and PLASTI-GRIP*
Red / Blue / Yellow Terminals
TERMINAL/STRIP LENGTH INFORMATION
WIRE SIZE INSULATION
RANGE, AWG DIAMETER (MAX.)
22-16 3.56 [.140]
16-14 4.32 [.170]
12-10 6.35 [.250]
22-18 Flag 3.56 [.140]
16-14 Flag 4.32 [.170]

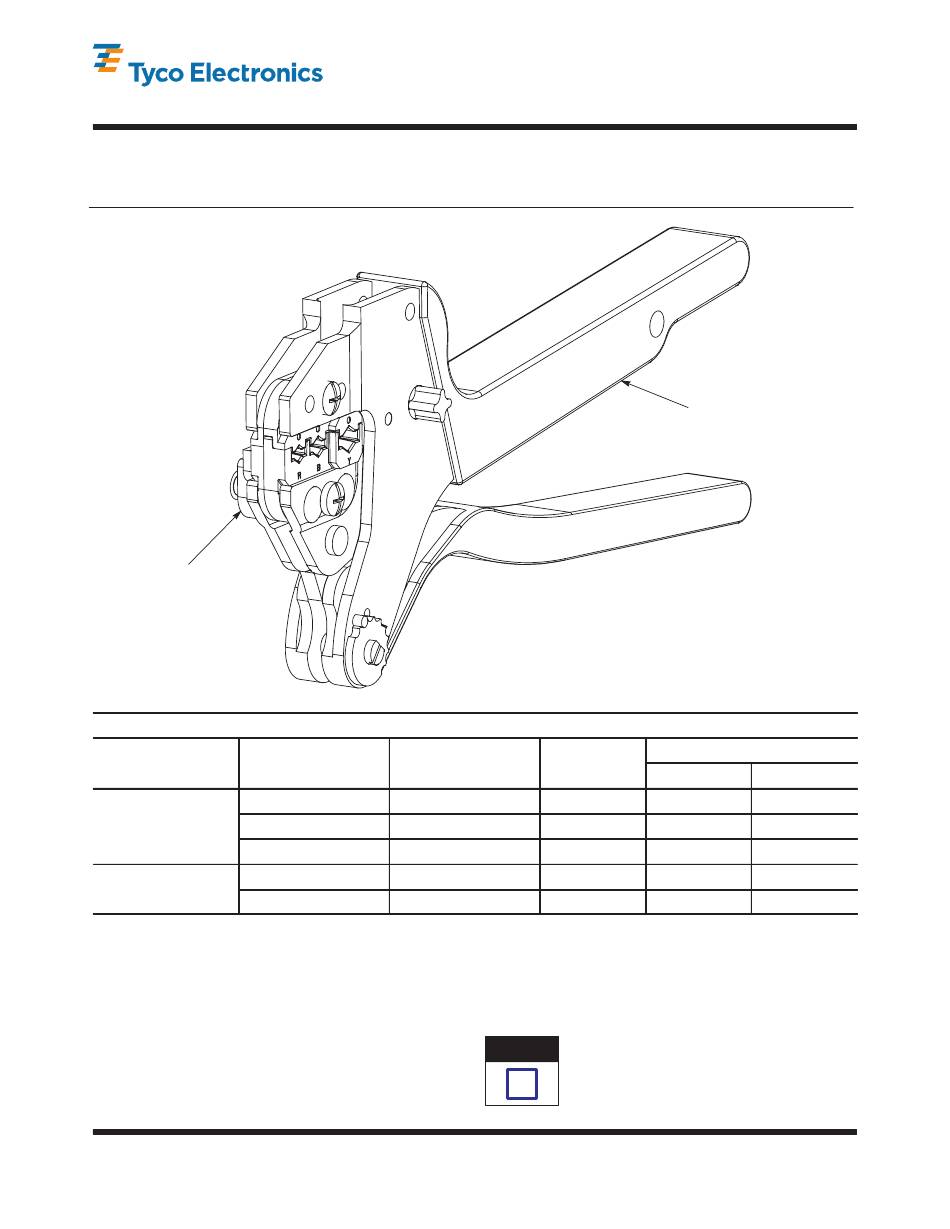

Figure 1
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
INSULATION
COLOR
Red
Blue
Yellow
Red
Blue
The die set is designed to crimp PIDG and
PLASTI–GRIP terminals onto pre–stripped wire.
Read these instructions thoroughly before crimping
any terminals.
NOTE All dimensions are in millimeters [with inches in
brackets]. Figures and illustrations are for
i
reference only and are not drawn to scale.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408-10256
27 OCT 08 Rev A
Hand Tool Frame Assembly
9-1478240-0 (Ref)
STRIP LENGTH
MINIMUM MAXIMUM
5.15 [.203] 5.95 [.234]
5.15 [.203] 5.95 [.234]
7.94 [.312] 8.73 [.344]
8.33 [.328] 9.14 [.360]
8.33 [.328] 9.14 [.360]
1 of 4
LOC B
