kleinmetall ROADMASTER DELUXE Mounting Instruction

Mounting Instruction
Product name
Product designation
Parts No.
Mounting
Usability
Type and design
Dimensions
Weight
Please read these instructions carefully and store them in a safe place.
Whenever the guard is used, make sure it is correctly mounted!
5
3 4
7
8
9
10
11
19
5er
20
3er
21

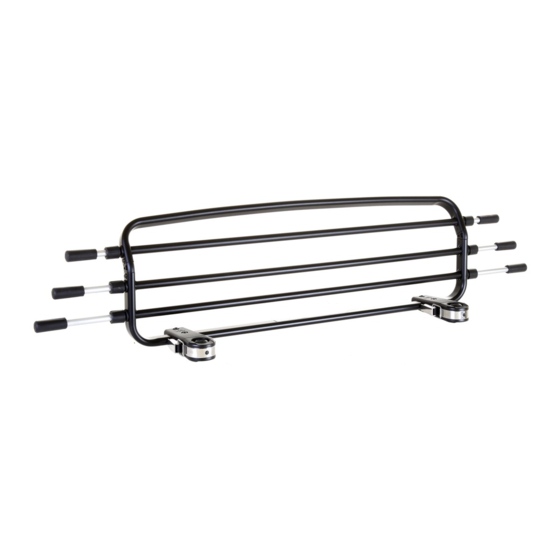

ROADMASTER DELUXE
Universal luggage and dog guard
10001413
to the headrest bars
protection of passengers during transport of cargo
anodised aluminium profiles, powder-coated steel, stainless steel
height: 25 cm, width: 95 to 145 cm (telescopic bars)
2 kg
6
17
18
12
13
14
1
2

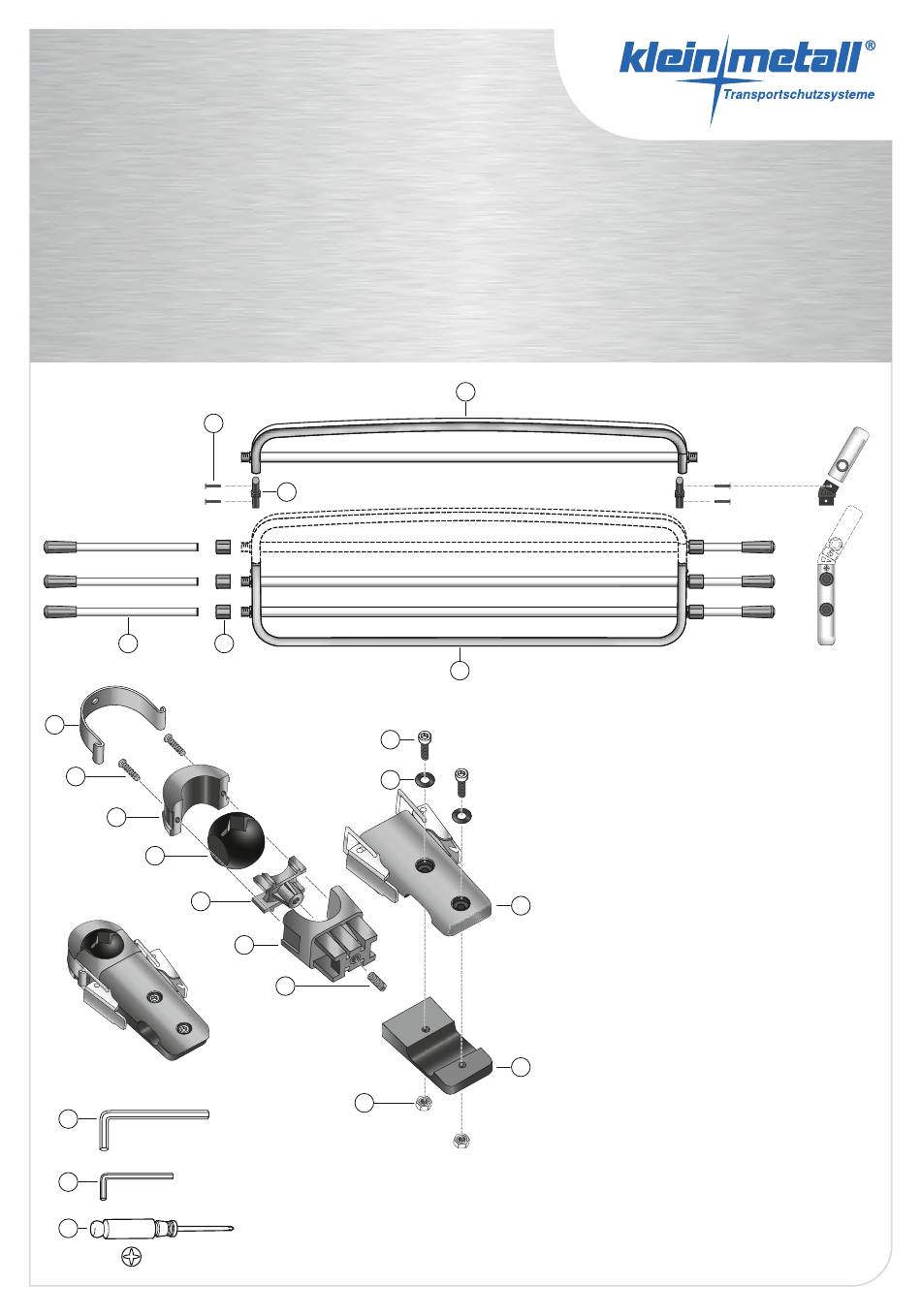

Partlist
1. Frame bracket _________________________ 1x
2. Lower frame part _______________________ 1x
3. Telescopic bar _________________________ 6x
4. Fixing sleeve ___________________________ 6x
5. Phillips screw "small" ___________________ 4x
6. Angle bracket __________________________ 2x
7. U-clamp ______________________________ 2x
16
8. Phillips screw "big" _____________________ 4x
9. Clamp shell ____________________________ 2x
10. Clamping ball __________________________ 2x
11. Pressure shell __________________________ 2x
12. Bearing element _______________________ 2x
13. Headless screw M6 _____________________ 2x
15
14. Hexagon nut M6 _______________________ 4x
15. Bearing segment with clamping bracket ____ 2x
16. Bearing segment without clamping bracket _ 2x
17. Allen screw M6 ________________________ 4x
18. Washer _______________________________ 4x
19. Allen key "big" _________________________ 1x
20. Allen key "small" _______________________ 1x
21. Phillips screwdriver _____________________ 1x
Continues on next page
kleinmetall GmbH
Hainstraße 52
63526 Erlensee
Telefon 06183.91120-0
Fax 06183.72152
E-Mail info@kleinmetall.de
www.kleinmetall.de
Page 1
