Summary of Contents for Silhouette Golden Gate Sun

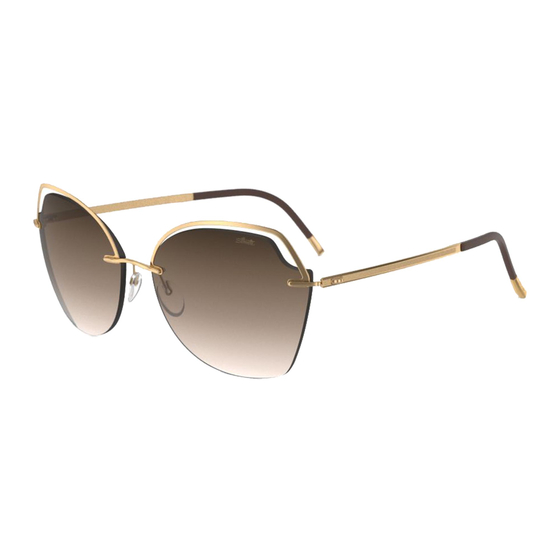

- Page 1 Golden Gate Sun Technical Instructions Model 8169, 8170...
- Page 2 Golden Gate Sun | Glazing with Silhouette Vision Sensation Lenses ® Silhouette now offers premium prescription lenses for all Silhouette Sun frames Expertly crafted in Austria using our exclusive Panorama ® lens designs and Silhouette Light Management sun tints, Silhouette Vision Sensation ®...
- Page 3 Golden Gate Sun | Glazing Frames are designed with a 6.0 base curve Other base curves are not recommended as upper titanium rim may not align with drill holes. Lens sizing should not be changed to ensure fit of upper rim.
- Page 4 Golden Gate Sun | Glazing Mount lenses using BLS 58 sleeve and Silhouette mounting plier with turquoise or blue tip.
- Page 5 Golden Gate Sun | Sleeve cutting with VGLH4 Spacer BLS sleeve must be cut to reflect the thickness of the metal trim to achieve proper lens retention. The VGLH4 spacer is used to simulate the thickness of the metal trim...
- Page 6 Golden Gate Sun | Sleeve cutting with VGLH4 Spacer With tool VGLH4 (shown by red line) placed against the surface of the lens, cut sleeve to length with AC392 sleeve cutter. Repeat procedure for all sleeves. Trimmed sleeves will extend beyond the front...
- Page 7 Golden Gate Sun | Glazing Place metal trim on protruding sleeves before placing frame parts in sleeves. Compress frame parts into sleeves until frame part contact metal trim...
- Page 8 Golden Gate Sun | Inclination Open temple Hold lens fixation firmly with mounting pliers Adjust inclination at the hinge in the required direction...
- Page 9 Golden Gate Sun | Temple exchange Construction of the high • precision hinge is not serviceable The spare part is the temple • and endpiece together...
- Page 10 Golden Gate Sun | Temple shortening 1. Straighten and remove temple cover 2. Cut to desired length using diagonal cutter 3. File sharp edges and burrs...
- Page 11 Golden Gate Sun | Temple shortening 4. Remove adhesive carefully with blade 5. Cut temple tip to desired length with sharp blade, using trimmed metal piece as sizing guide...
- Page 12 Golden Gate Sun | Temple gluing 6. Slide temple cover most of way back on temple 7. Apply small amount of adhesive as shown 8. Slide temple cover to final position...
- Page 13 Golden Gate Sun | Enlarge Temple Opening Hold lens fixation firmly with • mounting plier Press outward at endpiece to • enlarge the temple opening...
- Page 14 Golden Gate Sun | Reduce Temple Opening Hold lens fixation firmly with • mounting plier Press inward at endpiece to • reduce the temple opening...
- Page 15 Golden Gate Sun | Temple shortening 1. Straighten and remove temple cover 2. Cut to desired length using diagonal cutter 3. File sharp edges and burrs...
- Page 16 Golden Gate Sun | Temple shortening 4. Remove adhesive carefully with blade 5. Cut temple tip to desired length with sharp blade, using trimmed metal piece as sizing guide...
- Page 17 Golden Gate Sun | Temple gluing 6. Slide temple cover most of way back on temple 7. Apply small amount of adhesive as shown 8. Slide temple cover to final position...
- Page 18 Golden Gate Sun | Adjust temple end Adjust the temple to the ear shape with large curves. During temple-end adjusting do not put pressure on the temple tip (circled).
