Summary of Contents for Baumatic BIZ3SS

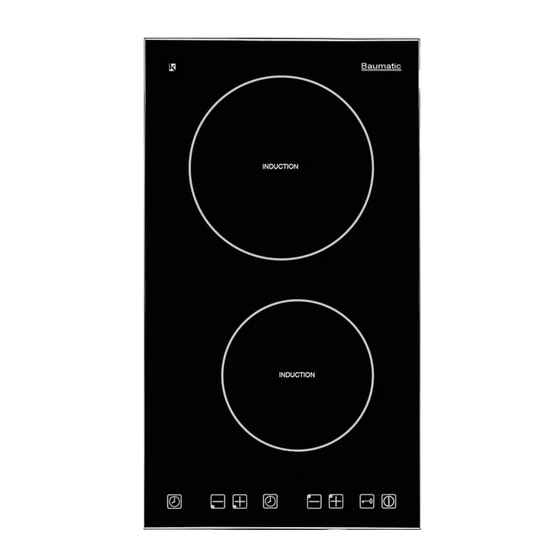

- Page 1 BIZ3SS Domino touch control induction zone...
- Page 2 User Manual for your Baumatic BIZ3SS 30 cm 2 induction zone domino hob NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Unpacking the appliance Installing the appliance Electrical connection Connecting the mains supply cable Replacing the mains supply cable My appliance isn’t working correctly Baumatic Ltd. Conditions of Guarantee Contact details 5 – 8 14 - 15 15 - 16 16 - 17 17 - 18 18 –... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
You should not use this appliance to store items on or as a work surface. o No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made from aluminium, plastic or plastic film should also be kept away from the appliance, as they may fuse to the surface. - Page 6 Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and should not be allowed to touch the appliance at any time. o If it is necessary for younger family members to be in the kitchen, please ensure that they are kept under close supervision at all times.
- Page 7 If in doubt, you should consult the manufacturer of your device or your Doctor. In this respect, Baumatic can only guarantee the conformity of our own product. o If an object made of metal, (e.g. saucepan lid, knife, fork or spoon) is placed on a cooking zone that is switched on, it can get hot.
-
Page 8: Declaration Of Conformity
This appliance complies with the following European Directives: -73/23/EEC dated 19/02/1973 Low Voltage Directive. -89/336/EEC dated 03/05/1989 EMC Directive inclusive of Amending Directive 92/31/EEC. -93/68/EEC dated 22/07/1993 CE Marking Directive. -89/109/EEC dated 25/01/1992 Materials that can touch food. o The manufacturer declares that the hob is built using certified materials and requires the appliance to be installed in accordance with the standards currently in force. -
Page 9: Specifications
Auto pan detection on induction zones o 2 Independent induction generators o 2 residual heat indicators o Timer o Safety lock Standard accessories o Ceramic hob scraper Optional extras o BTJS Joining strip for domino hobs Aperture dimensions Height: 496 mm Width: 275 mm... -
Page 10: Electrical Details
Rated Voltage: Supply Connection: Max Rated Inputs: Mains Supply Lead: For future reference please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. The rating plate of your hob is located on the underneath of the appliance. -
Page 11: Ceramic Hob Surface Layout
Control panel layout ON/OFF button Safety lock button Safety lock neon Minus button Plus button Cooking zone indicator/timer display Timer button (rear zone) Timer neon Timer button (front zone) -
Page 12: Using The Ceramic Hob
Using the ceramic hob Before first use IMPORTANT: You should clean the ceramic hob surface (see “Cleaning and maintenance” section). o You should switch on one cooking zone at a time, for 5 minutes at the maximum setting. This will help to eliminate any new smell that exists and evaporate any humidity that has formed on the heating elements during transit. -
Page 13: Turning On A Zone And Setting A Power Level
IMPORTANT: A zone must be selected within 10 seconds of turning the hob on. o Press the minus button (4) of the zone that you want to use. o The cooking zone indicator (6) will show a power level of 4 (this is the preset power level of the zone). -
Page 14: Turning Off A Zone Instantly
o Press the minus button (4) and the plus button (5) simultaneously. o The zone will switch off immediately. o An “H” will show in the cooking zone indicator (6), alternating with “0”. (See the section on the “residual heat indicator” on page 15). -
Page 15: Residual Heat Indicator
o After a zone is switched off, the corresponding cooking zone indicator (6) will show the letter “H”, This means that the temperature of the zone is over 60°C and is therefore high enough to cause injury. o When the temperature falls below 60°C, then the letter “H” and “0”... -
Page 16: Safety Cut-Off
o If one or more of the cooking zones are accidentally left on, a safety cut off will activate after a certain period of time. The length of time depends on the power level that a zone or zones have been set on. LEVEL o If the safety cut off has activated, the symbol “H”... -
Page 17: Increasing The Power Level During Automatic Pre-Heating
beep once and only the actual power level will show on the cooking zone indicator (6). o The period of time that a zone will automatically pre-heat for before dropping to the actual power level, is shown in the table below:- LEVEL Increasing the power level during automatic pre-heating... -
Page 18: Switching Off Automatic Pre-Heating
o IMPORTANT: Please note that switching off automatic pre-heating will not switch off the zone, it will still be necessary for you to do this manually. The hob timer (countdown mode) o Press the timer button (7) to activate the timer. o Adjust the time that you want the timer to countdown for, using the minus (4) and plus (5) buttons. -
Page 19: The Hob Timer
(7). o IMPORTANT: If a cooking zone or zones are in use during the countdown time, then they will not switch off when the end of the countdown time has completed. You will need to switch them off manually. The hob timer (switching a zone off) IMPORTANT: A zone must be selected within 10 seconds of turning the hob on. - Page 20 you have programmed and the zone that you have linked the countdown to. o The timer neon will stop flashing and remain lit, after a few seconds the timer will start to countdown. o Once the countdown period has completed, an acoustic signal will sound for 30 seconds.
-
Page 21: Hob Guidelines
A temperature sensor is situated in the middle of each cooking zone and is in contact with the glass. o In the event of a cooking zone overheating, this will be noted by the temperature sensor. o If the temperature sensor records a temperature that is above 235°C, it will reduce the power level of the cooking zone. -
Page 22: Cleaning And Maintenance
Especially if pointed or hard objects are allowed to fall on it with some force. o DO NOT USE THE HOB IF THE SURFACE BECOMES BROKEN OR CRACKED. YOU SHOULD CONTACT THE BAUMATIC SERVICE DEPARTMENT IMMEDIATELY. Cleaning and maintenance Cleaning operations must only be carried out when the oven is cool. -
Page 23: After Each Use
o Wipe the appliance over with a damp cloth. o Dry the appliance by rubbing the surface with a clean cloth. Cleaning table Type of deposit Remove immediately? Sugar or food/liquid containing sugar Tin foil or plastic Fat splashes Metallic discolorations Water splashes or water rings... -
Page 24: Using A Specialist Ceramic Hob Cleaner
It is possible to purchase specialist ceramic hob cleaner/conditioner. You should follow the instructions given by the manufacturer of the specialist ceramic hob cleaner. You should ensure that it is suitable for use on your appliance. Installation The installation must be carried out by a suitably qualified person, in accordance with the current version of the following. -
Page 25: Unpacking The Appliance
1 Baumatic hob 1 Ceramic hob scraper 1 Installation and instruction manual 1 Baumatic guarantee card 4 Fixing brackets 4 Fixing screws Installing the appliance o Cut a hole in the worktop that corresponds with the drawing... - Page 26 partition made of insulating material (e.g. wood). There must be a gap of at least 17 mm between the underneath of the appliance and this partition. o IMPORTANT: You must make sure that there is a 5mm gap below the underneath of the worktop at the front edge of the hob for ventilation purposes.
- Page 27 o Use the fixing bracket that is appropriate o Place a fixing bracket (B) over the hole in each corner of the underneath of the hob. Then place a screw (C) through the hole and fixing bracket (B). Tighten the screws partially, so that the fixing brackets stay in place.
-
Page 28: Electrical Connection
Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage. WARNING: THIS APPLIANCE MUST BE EARTHED. o This appliance should be wired into a 16 A double pole switched fused spur outlet, having 3 mm contact separation and placed in an easily accessible position adjacent to the appliance. -
Page 29: My Appliance Isn't Working Correctly
* IMPORTANT: If the cooking zone does appear to be hotter than 60°C and the residual heat indicator has not come on, you should call the Baumatic Service Department. o A humming sound is heard when a cooking zone is selected. - Page 30 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the...
- Page 31 (0118) 933 6933 E-mail: sales@baumatic.co.uk technical@baumatic.co.uk Website: www.baumatic.co.uk Republic of Ireland 01- 6266 798 Czech Republic Baumatic CR spol s.r.o. Amperova 495 46215, Librec Czech Republic +420 800 185 263 www.baumatic.cz Slovak Republic Baumatic Slovakia, s.r.o. Skultetyho 1 831 04 Bratislava 3...
