Bradley Verge Crestt Series Installation And Maintenance Manual
Individual automatic liquid or foam top-fill soap dispenser
Hide thumbs
Also See for Verge Crestt Series:
- Installation and maintenance manual (19 pages) ,
- Installation manual (9 pages) ,
- Parts & service (2 pages)
Table of Contents
Advertisement
Quick Links
Maintenance Manual
NOTE: Refer to the
Read the instructions in this manual before beginning installation. Save these
instructions and refer to them for inspection, maintenance, and troubleshooting
information.
For questions regarding the operation, installation or maintenance of this product, visit bradleycorp.com or call
800.BRADLEY (800.272.3539).
Product warranties and parts information may also be found under "Resources" on our website at
bradleycorp.com.
P20-224 Rev. A: ECO 19-15-015A
© 2020 Bradley
Page 1 of 11
2/10/2020

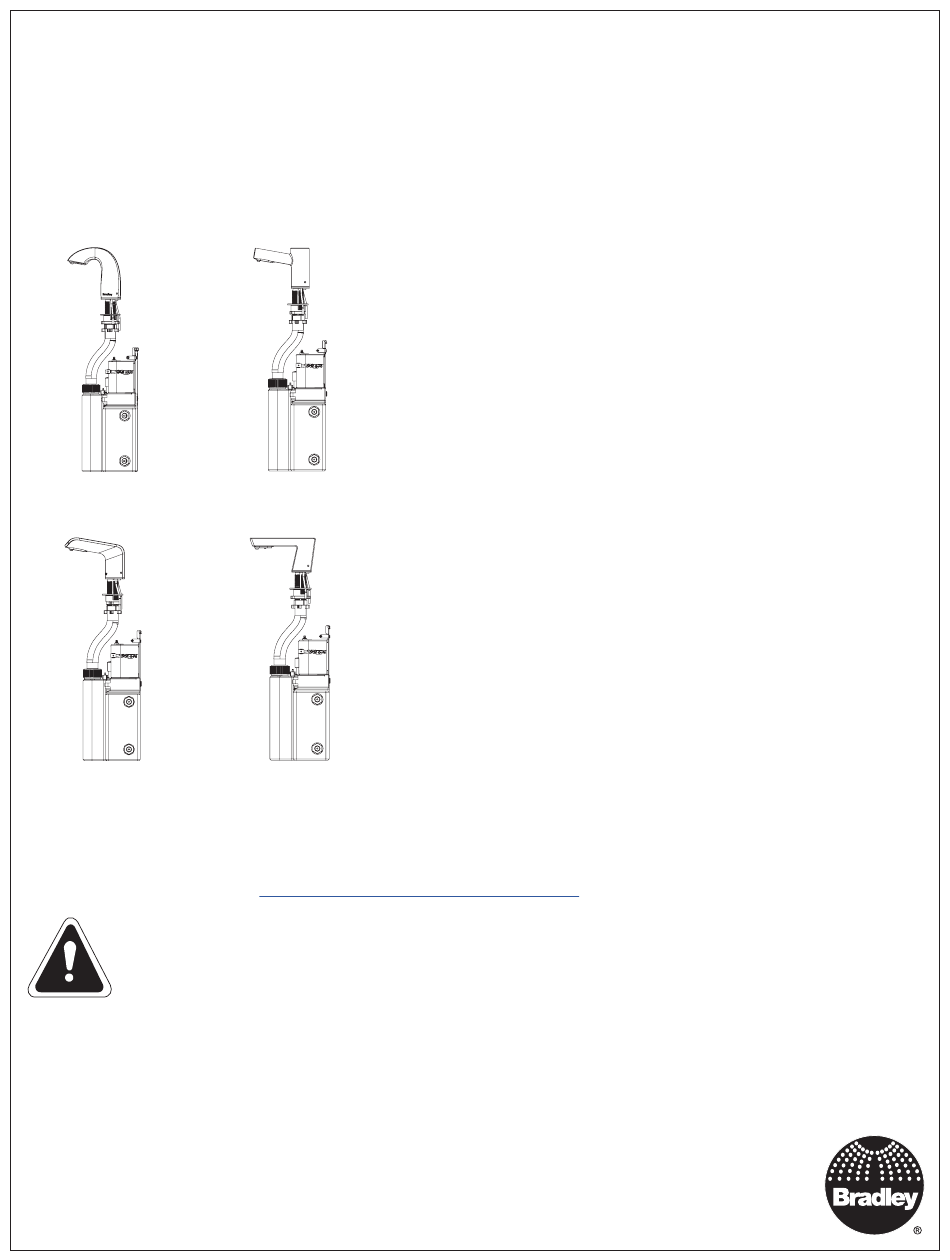

Installation and
Individual Automatic Liquid or
Foam Top-Fill Soap Dispenser
Installation and Maintenance Manual, P20-225
Verge
Soap Dispenser
®
Verge
Soap Dispenser - Metro Series (6-3300)
®
Verge
Soap Dispenser
®
Verge
Soap Dispenser
®
Table of Contents
Safety Information ............................................................... 2
Supplies Required ............................................................... 2
Components ........................................................................ 3
Dimensions .......................................................................... 4
Soap Spout Mounting .......................................................... 5
Control Box Mounting .......................................................... 6
Control Box Connections ..................................................... 7
Soap Fill Tube Connection ................................................... 7
Soap Pump & Vent Tube Connections ................................ 8
Power Source Connection ................................................... 8
Top Filling the Soap Dispenser............................................ 9
Operation Mode ................................................................. 10
Cleaning and Maintenance ................................................ 11
Liquid Soap Recommendations / Maintenance ................. 11
for Multi-Feed units.
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
-
Crestt Series (6-3100)
-
Linea Series (6-3500)
-
Zen Series (6-3700)
P.O. Box 309
+1 262 251 6000
bradleycorp.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bradley Verge Crestt Series
Summary of Contents for Bradley Verge Crestt Series
-
Page 1: Table Of Contents
Product warranties and parts information may also be found under “Resources” on our website at bradleycorp.com. P.O. Box 309 P20-224 Rev. A: ECO 19-15-015A Menomonee Falls, WI 53052 USA © 2020 Bradley 800 BRADLEY (800 272 3539) +1 262 251 6000 Page 1 of 11 2/10/2020 bradleycorp.com... -
Page 2: Safety Information
Caution A DC plug-in adapter (supplied by Bradley) should be used in conjunction with the Bradley soap dispenser products. The DC plug-in adapter supplied by Bradley is 6V DC regulated. Direct connection to 120V/22V 50/60Hz could result in personal injury and will damage the sensor. -
Page 3: Components
Locking Tab Battery Pack w/Batteries Wing Nut Soap Pump AC Adapter (Liquid w/Tube) Splitter Assembly Control Box Control Box Liquid or Foam Fill Tube Assembly Soap Pump (Foam w/Tube) Soap Tank Assembly Bradley • P20-224 Rev. A: ECO 19-15-015A 2/10/2020... -
Page 4: Dimensions
2¹¹⁄₁₆" (93) (100) (68) 6-3100 Crestt Series 6-3300 Metro Series 4³⁄₄" (120) 4⁷⁄₈" (123) 4¹⁄₈" (104) 3⁵⁄₁₆" 4³⁄₁₆" (84) 2¹³⁄₁₆" 2³⁄₁₆" 4³⁄₁₆" (106) (71) (55) (106) 6-3500 Linea Series 6-3700 Zen Series Bradley • P20-224 Rev. A: ECO 19-15-015A 2/10/2020... -
Page 5: Soap Spout Mounting
Feed the soap supply & vent tubes, and LED & sensor wires through the opening in the locking tab. Wing Nut Thread the wing nut onto the shank. Torque to 24 in/lb. Key Way Bradley • P20-224 Rev. A: ECO 19-15-015A 2/10/2020... -
Page 6: Control Box Mounting
Use the supplied mounting screws (or Screws suitable mounting hardware) to attach the control box assembly in place. Appropriate fastener anchors and mounting hardware must be used when mounting the control box assembly in the desired surface. Bradley • P20-224 Rev. A: ECO 19-15-015A 2/10/2020... -
Page 7: Control Box Connections
Soap Tank Thread the soap tank nut clockwise onto Slip Joint the soap tank. Fasten hand tight. Washer Soap Tank The slip joint connector has up to 5” Opening of vertical adjustment. Bradley • P20-224 Rev. A: ECO 19-15-015A 2/10/2020... -
Page 8: Soap Pump & Vent Tube Connections
The power source is located on the right hand side of the control box. The power supply can be a Bradley supplied battery pack, a single AC adaptor, or an AC adapter splitter assembly kit, depending on the selection made at time of purchase. -
Page 9: Top Filling The Soap Dispenser
Assistance with the tethered coil sensor wire may be needed to properly place the spout assembly onto the shank. Use the Allen wrench to tighten the cap screw, securing the spout assembly to the shank. Bradley • P20-224 Rev. A: ECO 19-15-015A 2/10/2020... -
Page 10: Operation Mode
LED flashes red Low soap Soap dispensing is enabled intermittently LED becomes steady red 2.5 seconds Overfill protection with audible indicator LED flashes green 0.5 seconds First time dispensing (priming the system) Bradley • P20-224 Rev. A: ECO 19-15-015A 2/10/2020... -
Page 11: Cleaning And Maintenance
Generally, any quality soap meeting the viscosity and pH guidelines above will work well with Bradley soap dispensers. PCMX or Isopropanol based antibacterial soaps (within viscosity and pH limits) will also work with Bradley dispensers. Soaps satisfying these basic guidelines will provide consistent flow and reduce clogs.
