Chapter3 Mounting and Precautions

3.1 Mounting

・Take care to act on the following points when the CPU link module is mounted.
(1) Confirm the following two points when mounting or dismounting the CPU link
module.
(i) Check the connections of the CPU link module's connector in basic base side.
(ii) Check the connections of the CPU link module contacting with the base.

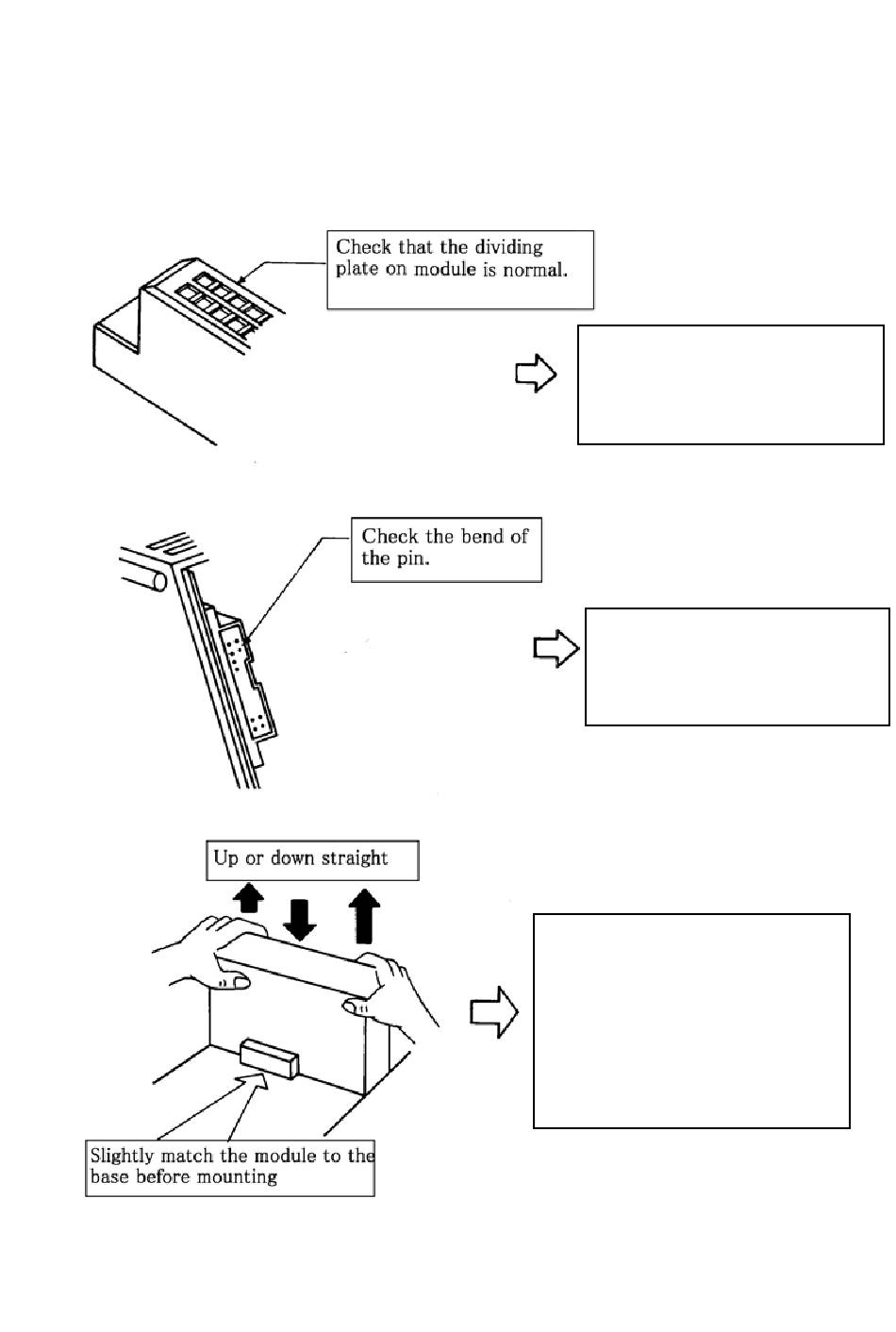

(2) Mount or dismount the CPU link module straight as shown in the figure below.
To mount the module, slightly and straight match each connector together and push the
top of the case by means of hand so that the connectors are set closely.
If there are any problems,
contact nearest after-sales
service station or your dealer.
Do not set the CPU link
module forcibly when the
connectors cannot be inserted
easily. Check that there is no
defect such as described in (ii)
above.
19
If there are any problems,
contact nearest after-sales
service station or your
