Control

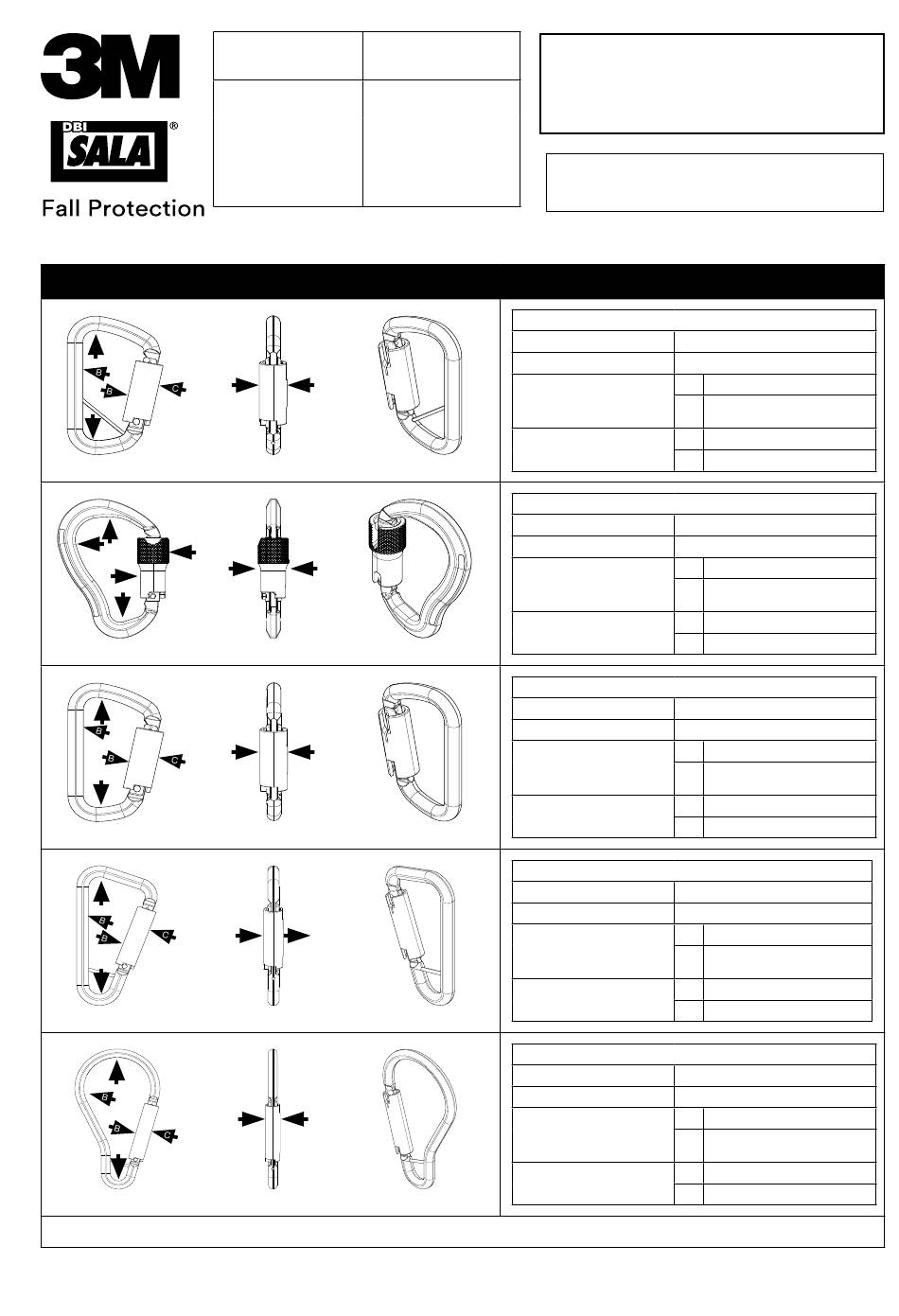

Model Numbers: (See Figure 1.)
BSI
Knowlhill
User Instruction Manual
MK5 8PP
1
Material:
Throat Size:
Minimum
Breaking
Strength:
Gate Strength:
Material:
Throat Size:
Minimum
Breaking
Strength:
Gate Strength:
Material:
Throat Size:
Minimum
Breaking
Strength:
Gate Strength:
Material:
Throat Size:
Minimum
Breaking
Strength:
Gate Strength:
Material:
Throat Size:
Minimum
Breaking
Strength:
Gate Strength:

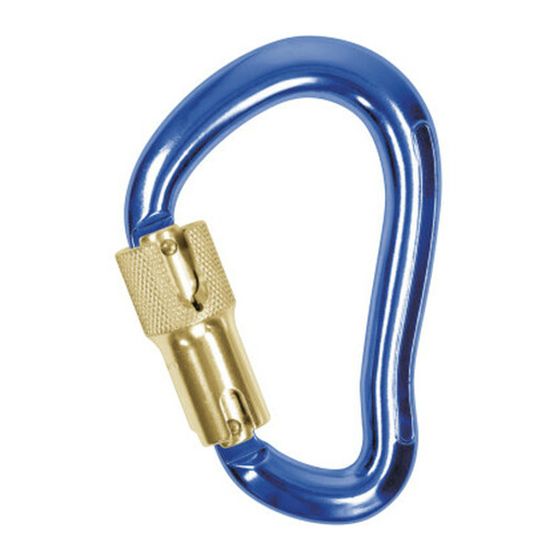

SELF-LOCKING
CARABINERS
2000005
Alloy Steel
3/4 in (19 mm)
A. 5,000 lbs (22.2 kN)
B. 3,600 lbs (16 kN)
C. 3,600 lbs (16 kN)
D. 3,600 lbs (16 kN)
2000025
Aluminum Alloy
3/4 in (19 mm)
A. 5,000 lbs (22.2 kN)
B. 3,600 lbs (16 kN)
C. 3,600 lbs (16 kN)
D. 3,600 lbs (16 kN)
2000112
Alloy Steel
11/16 in (17 mm)
A. 5,000 lbs (22.2 kN)
B. 3,600 lbs (16 kN)
C. 3,600 lbs (16 kN)
D. 3,600 lbs (16 kN)
2000113
Alloy Steel
1-3/16 in (30 mm)
A. 5,000 lbs (22.2 kN)
B. 3,600 lbs (16 kN)
C. 3,600 lbs (16 kN)
D. 3,600 lbs (16 kN)
2000114
Alloy Steel
2-3/16 in (56 mm)
A. 5,000 lbs (22.2 kN)
B. 3,600 lbs (16 kN)
C. 3,600 lbs (16 kN)
D. 3,600 lbs (16 kN)
Continued...
© 3M 2016
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for 3M DBI SALA 2000005
Summary of Contents for 3M DBI SALA 2000005
- Page 1 Throat Size: 2-3/16 in (56 mm) Minimum A. 5,000 lbs (22.2 kN) Breaking B. 3,600 lbs (16 kN) Strength: Gate Strength: C. 3,600 lbs (16 kN) D. 3,600 lbs (16 kN) Continued... FORM NO: 5908026 © 3M 2016 REV: A...
- Page 2 2000117 Material: Alloy Steel Throat Size: 11/16 in (17 mm) Minimum A. 5,000 lbs (22.2 kN) Breaking B. 3,600 lbs (16 kN) Strength: Gate Strength: C. 3,600 lbs (16 kN) D. 3,600 lbs (16 kN) 2000127 Material: Stainless Steel Throat Size: 11/16 in (17 mm) Minimum A.
- Page 3 2000188 Material: Aluminum Alloy Throat Size: 2 in (52 mm) Minimum A. 5,000 lbs (22.2 kN) Breaking B. 3,600 lbs (16 kN) Strength: Gate Strength: C. 3,600 lbs (16 kN) D. 3,600 lbs (16 kN) 2000300 Material: Alloy Steel Throat Size: 2 in (52 mm) Minimum A.
- Page 4 IMPORTANT: If you have questions on the use, care, or suitability of this equipment for your application, contact 3M Fall Protection. IMPORTANT: Before using this equipment, record the product identifi...
- Page 5 APPLICATIONS PURPOSE: Capital Safety Self-Locking Carabiners can be used as Anchorage Connectors or Connectors in Fall Arrest, Restraint, Work Positioning, Suspension, and Rescue systems. STANDARDS: Capital Safety Carabiners conform to the national or regional standard(s) identifi ed on the front cover of these instructions. TRAINING: This equipment is intended to be used by persons trained in its correct application and use.
- Page 6 INSPECTION FREQUENCY: Carabiners shall be inspected by the authorized person or rescuer before each use (See Section 4). Additionally, inspections shall be conducted by a competent person other than the user. Extreme working conditions (harsh environment, prolonged use, etc.) may necessitate more frequent competent person inspections.
- Page 7 NOTE: Large throat snap hooks should not be connected to standard size D-rings or similar objects which will result in a load on the gate if the hook or D-ring twists or rotates, unless the snap hook complies with CE EN362:2004. Check the marking on your snap hook to verify that it is appropriate for your application.
- Page 8 WARNING: Do not alter or intentionally misuse this equipment. Consult 3M when using this equipment in combination with components or subsystems other than those described in this manual. Some subsystem and component combinations may interfere with the operation of this equipment.
- Page 9 CONNECT TRIPLE ACTION CARABINER: Connect the carabiner to the connection point, rotate the gate clockwise, then pull gate up and push to the center of the carabiner. Position around a connection point, then release gate to close and lock. See Figure 6. Step 1 Step 2 Step 3...
-
Page 10: Inspection And Maintenance Log
4.0 INSPECTION AND MAINTENANCE LOG Serial Numbers: Model Numbers: Inspection Date: Inspected By: Inspection: (See Section 2.2 for Inspection Frequency) User Competent Person Inspect the snap hook or carabiner for damage. Look carefully for cracks, sharp edges, burrs, dents, or deformities. Check for bending or distortion. Inspect the snap hook or carabiner for excessive corrosion. - Page 11 Corrective Action/Maintenance: Approved By: Date: Corrective Action/Maintenance: Approved By: Date: Corrective Action/Maintenance: Approved By: Date: Corrective Action/Maintenance: Approved By: Date: Corrective Action/Maintenance: Approved By: Date: Corrective Action/Maintenance: Approved By: Date: Corrective Action/Maintenance: Approved By: Date: Corrective Action/Maintenance: Approved By: Date: Corrective Action/Maintenance: Approved By: Date:...
- Page 12 LIMITED LIFETIME WARRANTY Warranty to End User: CAPITAL SAFETY warrants to the original end user (“End User”) that its products are free from defects in materials and workmanship under normal use and service. This warranty extends for the lifetime of the product from the date the product is purchased by the End User, in new and unused condition, from a CAPITAL SAFETY authorised distributor.
