Cloud9 Button Board Reference Manual

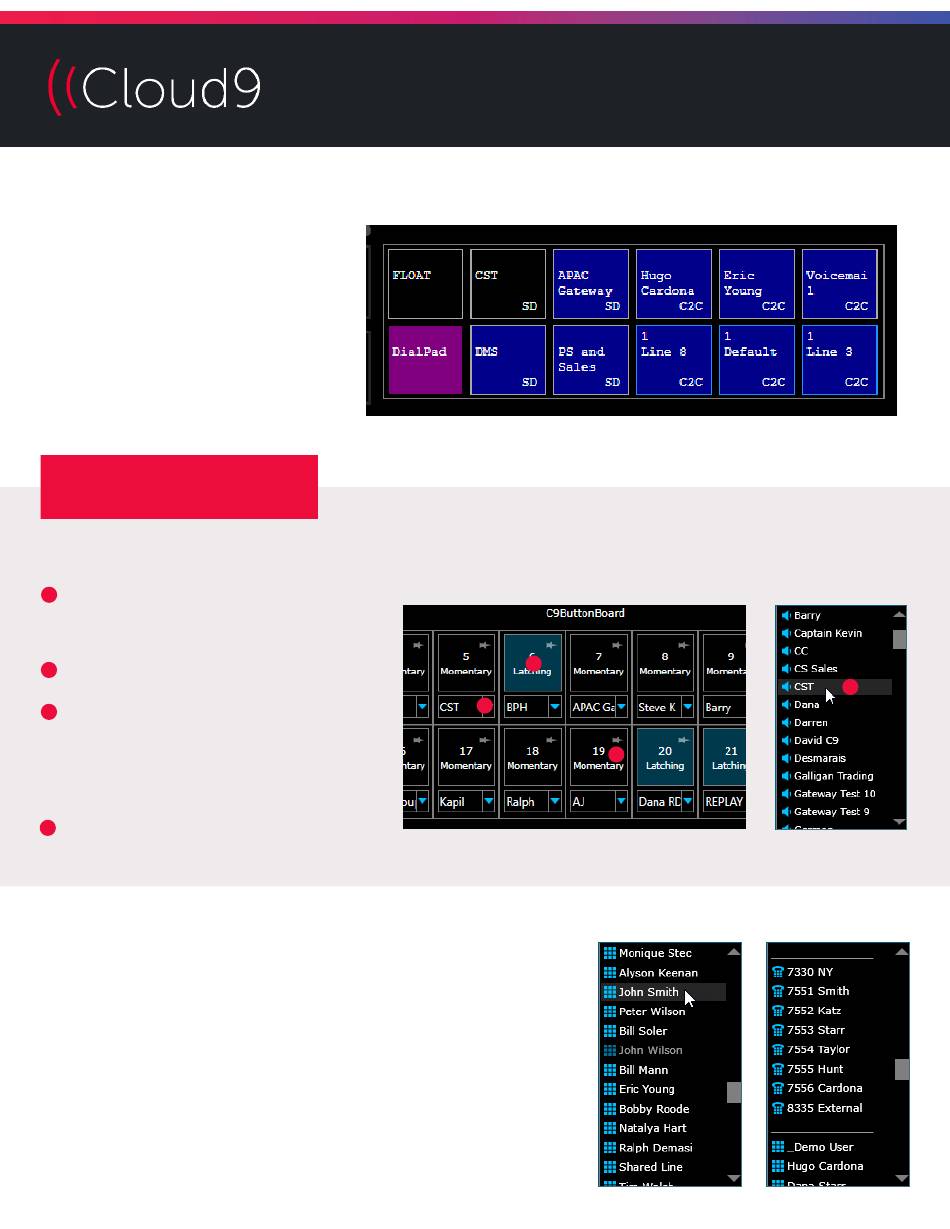

The LCD panels on the button board display useful information on the status of each button and line appearance.
➢
Call type indication:
o SD – Shoutdown
o RD – Ringdown
o ICM – Intercom
o C2C – Click to Call
➢
Button/Display Name
➢
Audio device indication:
o M – Microphone
o L – Left handset
o R – Right handset

Button Configuration

Shouts, ringdowns, speed dials, and line appearances are all configured via the same button board menu that is located within
the settings window: Settings -> Button Board
1
Locate the button you want to configure
and click the drop-down menu
Select the connection you want
2
3 Toggle between momentary or latching
pending preference
Note: extensions, speed dials and ringdowns
are always latched
4
Click the pin icon to pin the button across
all pages
➢
Speed dials and extensions are located within same dropdown as shouts
and ringdowns
➢
Each contact can only be placed on a single button. If the contact has
multiple numbers saved, the default number is used
➢
At least 1 appearance of an extension must be configured in order to save
contacts on the board
➢
Extensions and multiple rollover appearances for the extension can be
configured
Display
Note: Similar to audio device indication, if privacy is enabled, a
'P' will be displayed on the active line
3
1

Click to Call Button Setup

Button Board
4
2
