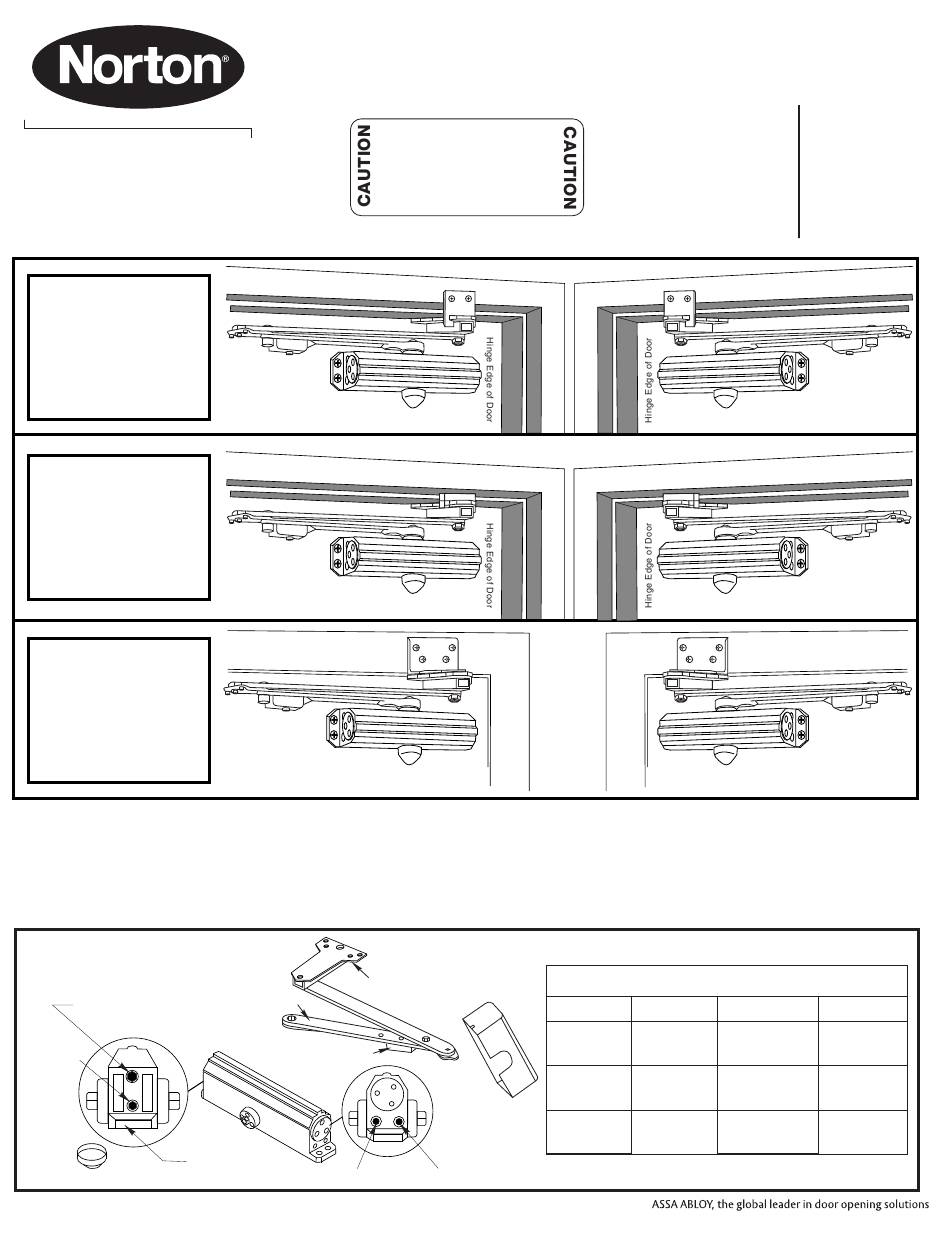

Assa Abloy Norton UniTrol UNI-1600BC Series Installation Instructions

ASSA ABLOY
Standard Frame
Installation
1-7/8 to 4-5/8
Frame Reveals
(Uses 6190 Bracket).
Bracket illustration page 4.
See Page 2
Deep Frame
Installation
Frame Reveals Over 4-5/8
(Uses 6191 Clamp Kit).
Bracket illustration page 4.
See Page 3
Flush Transom
Installation
Flush Partitions
(Uses 2022 Bracket).
Bracket illustration page 4.
See Page 4
NOTE: For special applications a separate door and frame preparation template is packed with these instructions
Use this instruction sheet for installation sequence and closer adjustments only
• It is recommended that the door on which the door closer will be installed be hung on ball bearing hinges. Door must swing freely
• Door and Frame must be properly reinforced, or use of special fasteners employed, to prevent the mounting screws from pulling out.
• All dimensions are given in inches with corresponding metric dimensions (mm) in parenthesis.
Components:
Power Adjustment Screw
(1/8 Hex Drive)
1601 Only
"BC" Valve
4
Closer
Size
Stamp
Pinion Cap
Copyright © 2016 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
Installation Instructions
UniTrol Door Controls
UNI-1600BC Series
UNI-1601 Series
An incorrectly installed or improperly
adjusted door closer can cause
property damage or personal injury.
These instructions should be followed
to avoid the possibility of
misapplication or misadjustment.
Right Hand Door - RH
Left Hand Reverse - LHR
Right Hand Door - RH
Left Hand Reverse - LHR
Right Hand Door - RH
Left Hand Reverse - LHR
UniTrol Parallel
Arm Assembly
Soffit Plate
Main Arm
Hold-Open Option
"L"Valve
®
Sized Closers
Multi-Sized Closers
Arm Identification
Door Width
28" - 32"
(0.70 - 0.80m)
33" - 41"
(0.85 - 1.00m)
Optional
Cover
42" - 48"
1600P
(1.05 - 1.20m)
"S"Valve
Non Hold Open (UL Listed)
Hold Open (H) (Not UL Listed)
ASSA ABLOY
Models:
Sized
Multi-Sized
(Sizes 3, 4)
(Sizes 1 thru 6)
UNI-1603BC(H)
UNI-1601(H)
UNI-1604BC(H)
Left Hand Door - LH
Right Hand Reverse - RHR
Left Hand Door - LH
Right Hand Reverse - RHR
Left Hand Door - LH
Right Hand Reverse - RHR
Arm Stamping
Non Hold Open
Main Arm
9-1/2"
6100-11
(241mm)
11"
6100-13
(279mm)
12-1/2"
6100-14
(318mm)
80-9316-2533-020 Rev 1
Hold Open
6100-1
6100-3
6100-4
