Twinkly Pro TWP-SW-8 User Manual

Connection hub (accessory for twinkly pro controller 1500 eth)
Hide thumbs

Advertisement

Quick Links

Download this manual
Smart decoration solutions for professionals
USERGUIDE
TWP-S W-8
REV 1 .2 0073 0

Advertisement

loading
Need help?

Need help?

Do you have a question about the TWP-SW-8 and is the answer not in the manual?

Questions and answers

Related Manuals for Twinkly Pro TWP-SW-8

Summary of Contents for Twinkly Pro TWP-SW-8

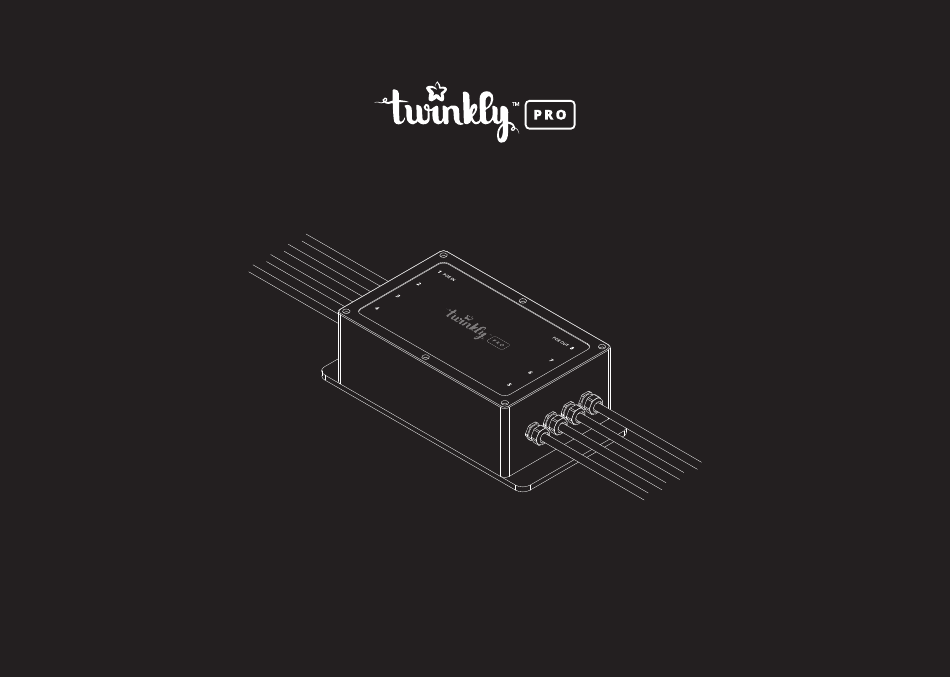

  • Page 1 Smart decoration solutions for professionals USERGUIDE TWP-S W-8 REV 1 .2 0073 0...

  • Page 3: Table Of Contents

    TA BL E OF CONTENTS Introduction Package Contents Installation Requirements IN S TA L LATION PRO CESS Connecting to the Twinkly Pro Wi-Fi Bridge Connecting to a Internet Router Enabling the PoE...

  • Page 5: Introduction

    Introduction Thank you for choosing Twinkly Pro for your lighting needs. This manual will provide detailed instructions, guide you through the entire setup process, and assist you with the recommended installation procedure for your device(s). By reading this step-by-step guide you will: •...

  • Page 6: Package Contents

    Package Contents What is inside the box 1 Twinkly PRO Connection Hub (Accessory for Twinkly PRO Controller 1500 ETH)

  • Page 7: Installation Requirements

    What is required for the installation * 2a Twinkly PRO Wi-Fi Bridge 4 Ethernet Cable Extender 5 Twinkly PRO Controller 1500 ETH 2b Internet Router** * purchased separately ** used to access advanced features: Multi-view Mapping and Cloud Control (WebApp)

  • Page 8: Connecting To The Twinkly Pro Wi-Fi Bridge

    STEP 1 - CASE A Connecting to the Twinkly Pro Wi-Fi Bridge (Access Point*) * Refer to TWP-uWiFi user guide NOTE - Does not support advanced features: Multi-view Mapping and WebApp...
  • Page 9 Connect the Ethernet Controller to the PoE IN Connection Hub using port 1 (indicated as PoE IN) Connect the Wi-Fi Bridge to the Connection Hub PoE OUT using port 8 (indicated as PoE OUT) • You can also connect the Wi-Fi Bridge after enabling the PoE Plug the Ethernet Controller to a power source...

  • Page 10: Connecting To A Internet Router

    STEP 1 - CA SE B Connecting to a Internet Router...
  • Page 11 Connect the Ethernet Controller to the PoE IN Connection Hub using port 1 (indicated as PoE IN) Connect a free port ranging from 2 to 7 to your Internet Router (do NOT connect to the port indicated as PoE OUT) Plug the Ethernet Controller to a power source...

  • Page 12: Enabling The Poe

    S TEP 2 Enable the PoE...
  • Page 13 Verify the status of the PoE by looking for the is already activated. Enable the PoE by pressing and holding the button will remain activated even if you disconnect the Controller or the Wi-Fi Bridge / Internet Router Wait for the Wi-Fi Bridge / Internet Router to connect. This process can take up to 1 minute.
  • Page 14 TYP ICA L Network layout for multiple Connection Hubs...
  • Page 15 PoE IN PoE OUT NOTE The maximum number of Connection Hubs is delimited by the number of available ethernet ports in your Internet Router.
  • Page 16 If you need any further information, please feel free to contact us: sales@pro.twinkly.com...
