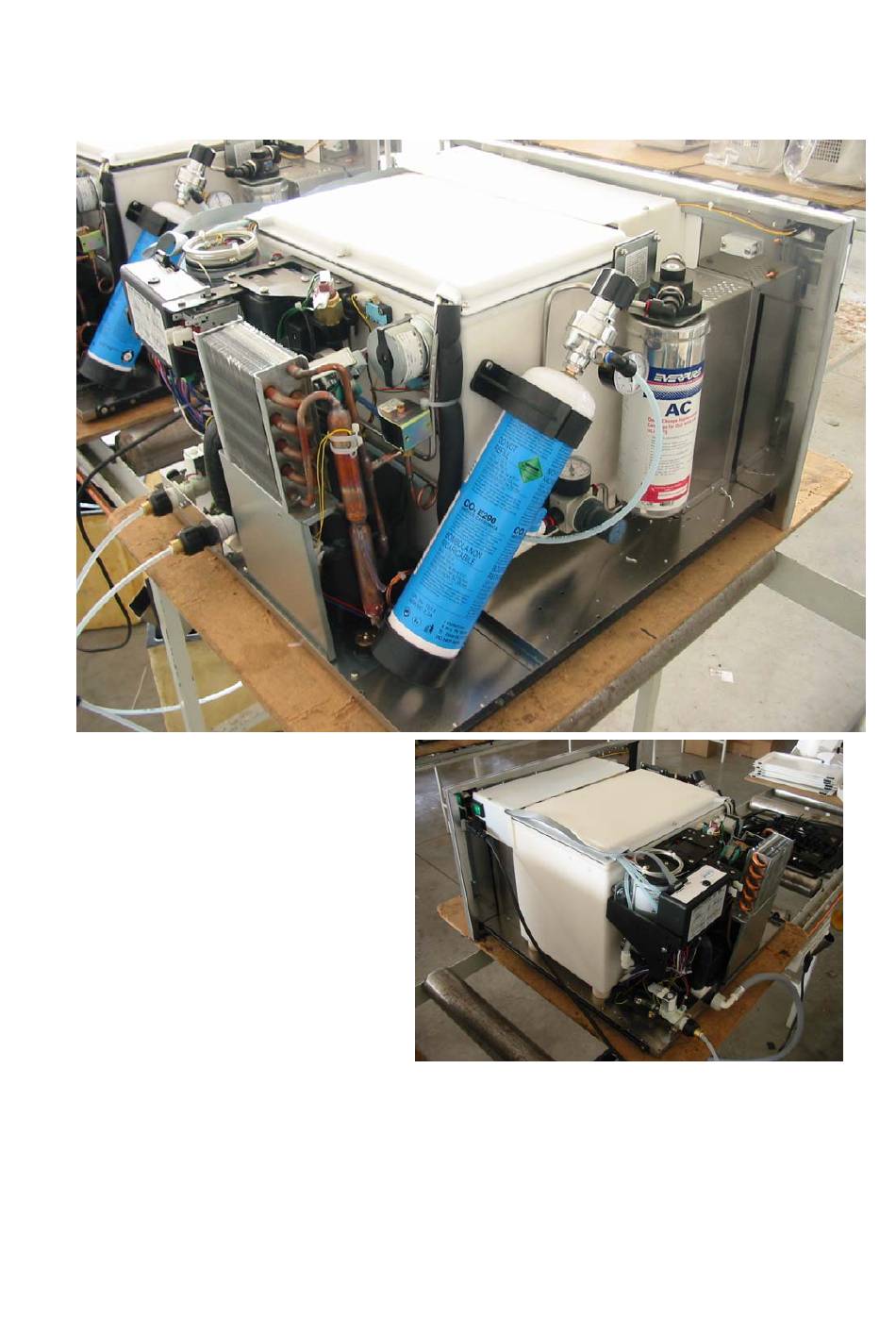

Removal of the rear panel gives access to components: compressor, gas and water valves,
motors, main board, pump, etc...
1. Filter and filter head
2. Water pressure reducer
3. CO2 cylinder
4. On/Off water valve
5. Compressor
6. Condenser
7. Water and gas valves
8. Ice bin motor and auger motor
9. Pump
10. Main board
11. Pressure switch
12. Microswitch
1.1.0 5.2007
27/40
Refreshment Center
