Summary of Contents for RC4WD Z-B0169

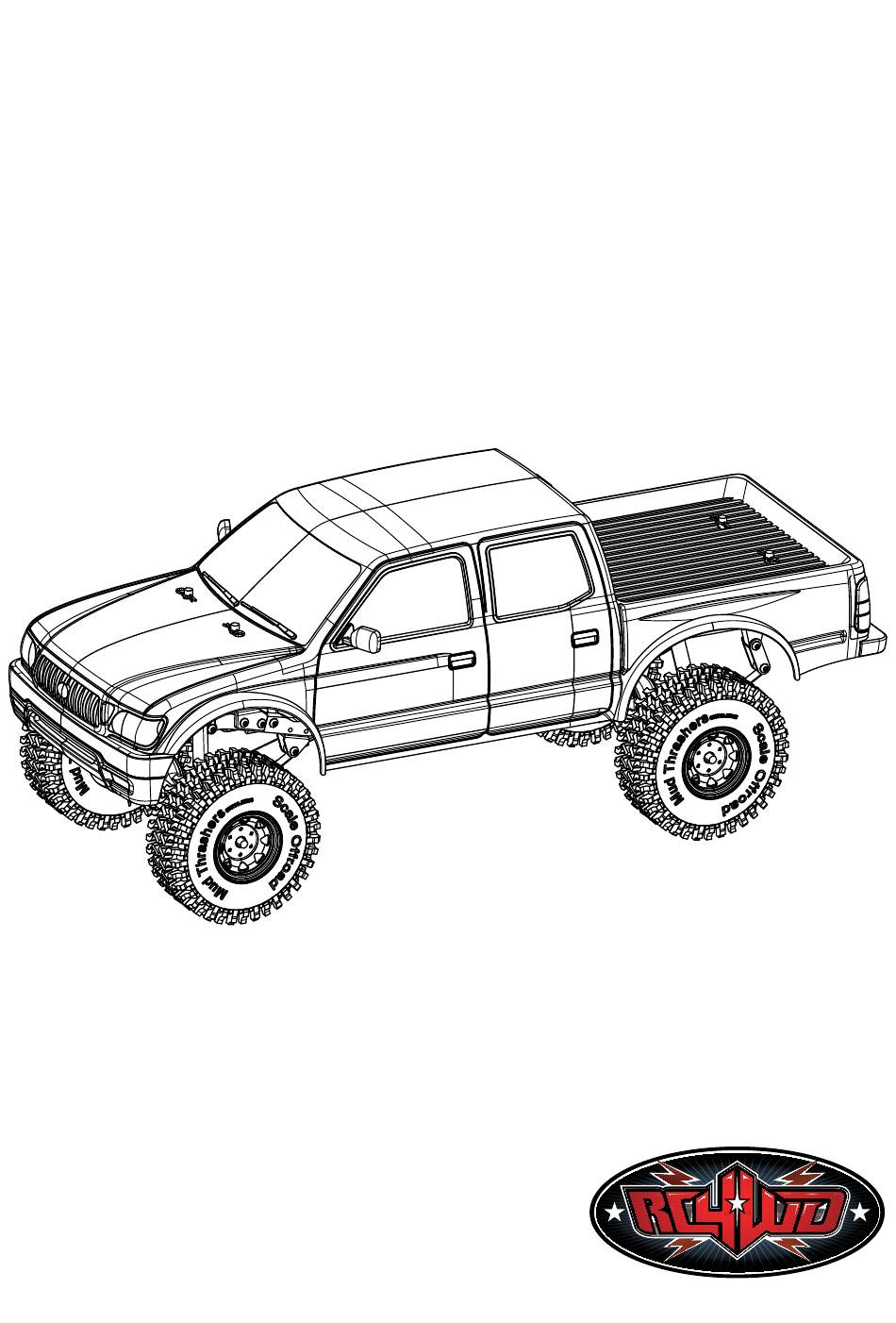

- Page 1 RC4WD 2001 Toyota Tacoma 4 Door for TF2 LWB 313MM/12.3"...
-
Page 2: Recommended Tools
Congratulations on your purchase of the new RC4WD 2001 Toyota Tacoma 4 Door for the TF2 LWB 313mm/12.3"! Recommended Tools Hex Driver（2mm） Body Reamer Curved Lexan Scissors Drills (2mm, 3mm and 5mm) RC4WD 100-0031... -
Page 3: Parts List
325-0277 325-0290 325-0275 325-0276 325-0263 325-0262 325-0288 325-0274 325-0273 325-0265 325-0264 325-0282 325-0268 325-0269 325-0270 325-0271 325-0299 200-0055 Z-S0654 Z-S0652 M3 x 12mm BHCS M3 x 8mm BHCS Z-S0655 Z-S0653 M3 x 14mm BHCS M3 x 10mm BHCS RC4WD 100-0031... -
Page 4: Warranty
This warranty lasts 30 days after arrival for original purchaser. In the event of a defect under this warranty, RC4WD will, at our discretion, replace the product, provided our inspection indicates that an original defect exists. - Page 5 How to Cut the Body Please trim the body along the green line as shown in the pictures below: RC4WD 100-0031...
- Page 6 Take care body for best results and to prevent paint runs. to dry with a lint free cloth or air dry completely before painting. RC4WD 100-0031...
- Page 7 This can be done by your own personal style. You may now complete using the tip of your hobby knife or finger to gently the installation of the plastic accessories. peel up a corner and pulling it completely off. RC4WD 100-0031...
- Page 8 How to Install Body Decals 7 11 Certain decal sheets are supplied with multiple styles, giving you the option to choose whichever best fits your personal style! Many of the decals supplied can be freely applied in any location. RC4WD 100-0031...
- Page 9 Trim this section out for headlight Step 1 Drill 3mm Holes Drill 5mm Holes Drill 5mm Holes Drill 2mm Holes Drill 2mm Holes Drill 5mm Holes 325-0267 325-0262 Step 2 325-0282 325-0264 325-0266 Z-S0652 Z-S0652 M3 x 8mm BHCS 325-0263 325-0265 Z-S0652 RC4WD 100-0031...
- Page 10 Step 3 325-0269 325-0272 325-0271 Z-S0652 Z-S0652 325-0268 M3 x 8mm BHCS 325-0288 325-0270 Z-S0652 Step 4 325-0296 Z-S0652 M3 x 8mm BHCS 325-0290 325-0297 Z-S0652 325-0277 Z-S0652 RC4WD 100-0031...
- Page 11 Step 5 Double Sided Tape Please remove protective film from tape before applying. Step 6 Please remove protective film from tape before applying. RC4WD 100-0031...
- Page 12 Step 7 Drill 5mm Holes Step 8 Z-S0652 M3 x 8mm BHCS Z-S0652 325-0298 325-0281 RC4WD 100-0031...
- Page 13 Step 9 325-0290 Do not glue any 325-0293 parts before painting! 325-0291 325-0292 Drill 5mm Holes Step 10 Drill 2mm Holes Drill 2mm Holes Drill 2mm Holes Drill 5mm Holes Drill 2mm Holes Drill 2mm Holes Drill 2mm Holes RC4WD 100-0031...
- Page 14 325-0276 Mirror brackets (325-0273) may fit on very tightly. Please use the body reamer or 2mm drill bit to slightly enlarge the hole. 325-0275 325-0295 325-0289 Step 12 Do not glue any parts before painting! RC4WD 100-0031...
- Page 15 If you are installing on the RC4WD Trail Finder "LWB" RTR Step 13 chassis the left side 12mm screw is not installed. Z-S0652 M3 x 8mm BHCS Z-S0655 Z-S0653 Z-S0652 M3 x 10mm BHCS Z-S0654 Z-S0654 Z-S0653 M3 x 12mm BHCS...
- Page 16 Step 15 Remove front bumper mount Step 16 RC4WD 100-0031...
- Page 17 Step 17 Z-B0016 Z-B0016 Z-B0016 Step 18 Trim body posts to desired length. RC4WD 100-0031...
- Page 18 Drive it like y built it! RC4WD 100-0031...
- Page 19 618 Blossom Hill Rd. Ste. 201 San Jose, CA 95123 Web: www.rc4wd.com - Email: support@rc4wd.com RC4WD 100-0031...
