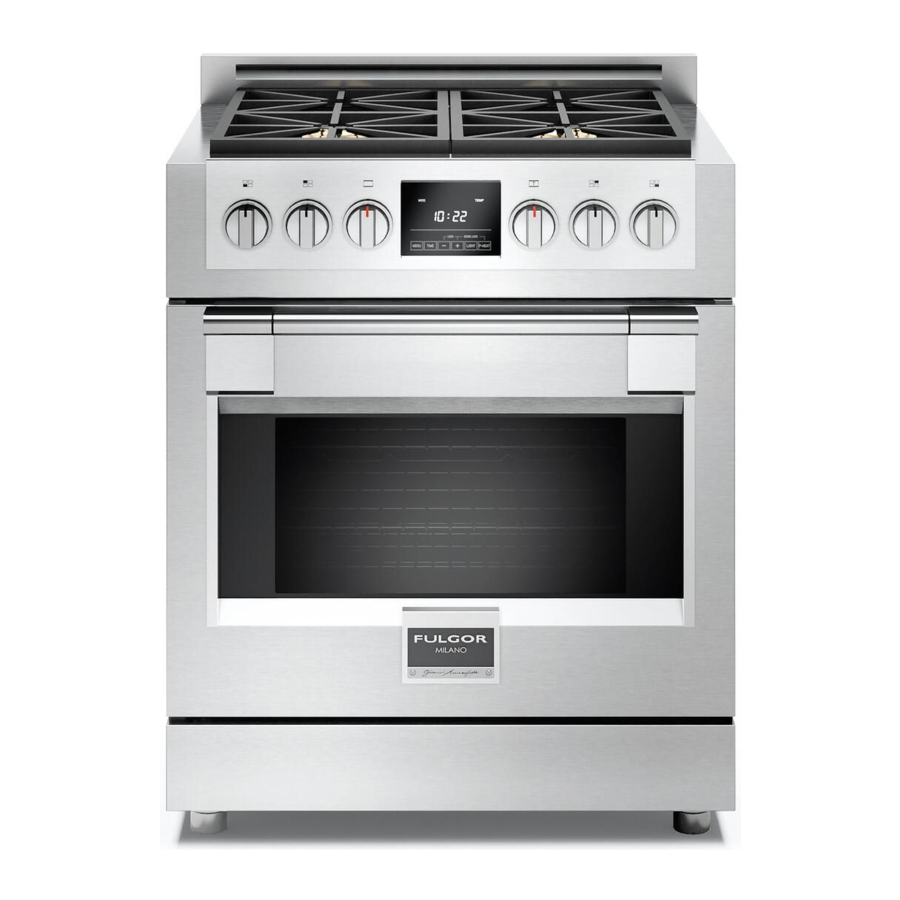

Fulgor Milano Sofia Installation Instructions Manual

Pro-range 30”- 36” - 48” full gas
Hide thumbs Also See for Sofia:
Table of Contents

Advertisement

Quick Links

Download this manual
PRO-RANGE 30"- 36" - 48" FULL GAS
INS TALLATI ON INSTRUCTIONS
INSTRUCTIONS D'INS TALLATI ON
INSTRUCCIONES PARA LA INS TALACIÓN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sofia and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fulgor Milano Sofia

Summary of Contents for Fulgor Milano Sofia

  • Page 1 PRO-RANGE 30”- 36” - 48” FULL GAS INS TALLATI ON INSTRUCTIONS INSTRUCTIONS D’INS TALLATI ON INSTRUCCIONES PARA LA INS TALACIÓN...
  • Page 2 Thank you for purchasing one of our Sofia ranges. This range was conceived, designed and handcrafted in Italy. Your selection of a Sofia range confirms you are among a special group who share a love and passion for cooking. This unique community shares in the experience of creating quality dishes;...

  • Page 3: Table Of Contents

    WARNING TABLE OF CO NTENTS PAGE This is the safety alert symbol. This symbol alerts you to 1 - Special Warnings potential hazards that can kill or hurt you and others. You Before Starting Installation can be killed or seriously injured if you don’t follow these Mobile Home Installation instructions.

  • Page 4: Special Warnings

    1 - Special Warnings IMPORTA NT INSTRUCTIO N Please read all instructions before using this appliance. Copies of the standards listed may be obtained from: Proper installation is your responsibility. Have a qualified technician install this range. National Fire Protection Association One Batterymarch Park Quincy, Massachusetts 02269 IMPORTANT *** CSA International 8501 East Pleasant Valley Rd.

  • Page 5: Product Dimensions And Cutout Requirements

    2 - Product Dimensions and Cutout Requirements PRODUCT DIMENSIO NS WIDE RANGE M ODELS 29 3/4” (75.8) 35 3/4” (91.0) 47 7/8” (121.6) 29 3 / 4 ” (75.6) 27 1 / 2 ” (69.7) 7 ” (17.9) 9" (22.8) [optional] 3"...
  • Page 6 2 - Product Dimensions and Cutout Requirements CUTOUT REQUIREMENTS Min. 48” (122) Max. 13” (33) Min. 30” (76.2) Minimum to To bottom of combustibles when ventilation hood no ventilation hood is present** Min. 18” Min. 18” (45.7) (45.7) Min. 6 ” Min.

  • Page 7: Anti-Tip Bracket Installation

    2 - Product Dimensions and Cutout Requirements Before moving the range, protect any finished flooring and Anti-Tip Bracket Installation secure oven door(s) closed to prevent damage. WARNING Vent hood Combinations: It is recommended that these ranges be installed in conjunction with a suitable overhead vent hood.
  • Page 8 2 - Product Dimensions and Cutout Requirements ANTI-TIP BRACKET INSTALLATION WALL BACKWALL ANCHOR CABINET SIDEW ALL ANTI-TIP FLUSH BRACKET For Concrete or Cement Construction: You must use appropriate fastening hardware (not provided). Secure the bracket to the wall and / or floor with at least 4 wood screws (provided).

  • Page 9: Installation Information

    3 - Installation Information TOOLS WILL YOU NEED WARNING • Excessive Weight Hazard Use two or more people to move and install range. Failure to do so can result in back or other injury. • Cut Hazard Beware of sharp edges. Use the polystyrene ends when carrying the product.

  • Page 10: Installation Instructions

    4 - Installation Instructions STEP 2 Do not tip the range on its side when installing the legs.The Open the top (2) and remove the accessories (3) then lift off sidewalls are not designed to bear the weight of the range the cardboard sheath (4).
  • Page 11 4 - Installation Instructions STEP 3 (For 48” range only) STEP 5 Remove the rear wood brace (5) and the front metal securing Slide back more and tilt back (9), putting the rear legs on the brackets (6). floor and then mount the front legs (10) while in this angled position supported by the rear legs and the skid.
  • Page 12 4 - Installation Instructions STEP 7 STEP 8 In case it is necessary to move the range; using the foam and / Install the back guard (if provided) by the three screws on the or cardboard packaging (13), replace them around the range back.
  • Page 13 4 - Installation Instructions STEP 9 STEP 10 After completing the electrical and gas connections (see Hook tabs on bottom of toekick into slots on either side of the included instructions) measure the four corners in cutout area frame and rotate up until the magnets at the top of toekick to verify if flooring is level.

  • Page 14: Gas Requirement

    5 - Gas Requirement QUALIFIED SERVICE MAN OR GAS APPLIANCE GAS SHUT OFF VALVE INSTALLER MUST MAKE SUPPLY CONNECTIO N. Leak testing of the appliance shall be conducted by the installer OPEN POSITION according to the instructions given. You must install the supplied connection parts seen here in this configuration to the main gas manifold on the appliance.

  • Page 15: Pressure Testing

    5 - Gas Requirement Pressure Testing LOCATION OF GAS RATING PLATE The appliance must be isolated from the gas supply piping system by closing its individual manual shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1 / 2 PSIG (3.5 kPa).

  • Page 16: Gas Connection

    5 - Gas Requirement Gas Connection • Thread the appliances pressure regulator with 1/2” male CAUTIO N end connection both supplied with this appliance. • Join the pressure regulator to the entrance threads Do not attempt to attach the flexible connector directly to an of the Gas Manifold with gasket supplied with this external pipe thread.

  • Page 17: Conversion For Lp Or Ng Gas

    6 - Conversion for LP or NG Gas GAS CONNECTIO N FLARE UNION ADAPTOR APPLIANCE PRESSURE REGULATOR FLARE UNION ADAPTOR GASKET FLARE UNION ADAPTOR FLEXIBLE APPLIANCE CONNECTOR MANIFOLD SHUTOFF VALVES GASKET FLARE UNION ADAPTOR FLEXIBLE APPLIANCE CONNECTOR APPLIANCE PRESSURE REGULATOR MANIFOLD SHUTOFF VALVES...

  • Page 18: Converting Appliance For Use With Lp Gas

    6 - Conversion for LP or NG Gas Converting Appliance for Use with LP Gas Replace Injectors (t w o ring flame burner) 1. Remove the grates and burner caps. WARNING 2. Remove aluminium gas spreader. 3. Remove the three screws from the simmer gas spreader (1). Conversion is to be performed by an AUTHORIZED SERVICER (or other qualified agency) in accordance with the 4.

  • Page 19: Replace Injector (Griddle)

    6 - Conversion for LP or NG Gas Replace Injector (griddle) Replace injector on (oven lo w er burner) 1. Remove the burner covers plate. 1. Remove griddle plate. 2. Remove burner cover. 3. Remove the burner fixing screw (1). 4.

  • Page 20: Replace Injector On (Oven Grill Burner)

    6 - Conversion for LP or NG Gas Remove the nozzle by turning 9-32” (7 mm) nut driver Replace injector on (oven grill burner) counter clockwise. 1. Remove the door as described in the paragraph “Door removal” 2. Remove the screws securing the grill burner and withdraw the burner from the support.

  • Page 21: Converting Appliances For Use With Ng Gas

    6 - Conversion for LP or NG Gas 3. Remove the nozzle by turning 9-32” (7 mm) nut driver 7. Save the injectors removed from the appliances for future counter clockwise. use. Proceed to Pressure Regulator Conversion noting the LP / Propane position to complete the conversion. After replacing the injectors adjust the burner flame (see Low Flame Adjustment paragraph).

  • Page 22: Pressure Regulator Conversion

    6 - Conversion for LP or NG Gas Pressure regulator conversion PRESSURE REGULATOR CONVERSION The appliances is designed for use with NG gas or LP gas. The gas pressure regulator is supplied. It must be installed in the gas supply line ahead of the manifold entrance. It is pre-set for use with the gas as indicated on the appliance GASKET NG POSITION...

  • Page 23: Injectors Position

    6 - Conversion for LP or NG Gas INJECTORS POSITION NG- DUAL FLAME RING 30” SIMMER MAIN FLAME 180 SIMMER *MAIN FLAME 180 or *MAIN FLAME 192 NG- DUAL FLAME RING 36” SIMMER MAIN FLAME 180 SIMMER *MAIN FLAME 180 or *MAIN FLAME 192 NG- DUAL FLAME RING 48”...
  • Page 24 6 - Conversion for LP or NG Gas INJECTORS POSITION LP- DUAL FLAME RING 30” SIMMER MAIN FLAME LP- DUAL FLAME RING 36” SIMMER MAIN FLAME LP- DUAL FLAME RING 48” SIMMER MAIN FLAME 105 MAIN FLAME 94...

  • Page 25: Low Flame Adjustment

    6 - Conversion for LP or NG Gas Lo w Flame Adjustment Adjustment for Burners with one or tw o flame rings: DANGER 1. Light burner and set control knob for low flame. Lighting gas burners with a match is dangerous. 2.

  • Page 26: Electric Gas Ignition

    6 - Conversion for LP or NG Gas Proper adjustment will produce a stable, steady blue flame of minimum size. The final adjustment should be checked by turning the knob from high to low several times without extinguishing the flame. This adjustment, at low setting, will automatically provide the proper flame size at medium setting.

  • Page 27: Electrical Requirements

    7 - Electrical Requirements General Information Electrical Connection An adequate electrical supply and outlet must be used to This appliance must be supplied with the proper voltage and operate the electrical parts of your appliance. frequency and connected to an individual, properly grounded branch circuit, protected by a circuit breaker or fuse having amperage as noted on the rating plate.

  • Page 28: Electrical Requirements

    7 - Electrical Requirements Electrical Requirements Do not under any circumstances cut or remove grounding WARNING prong from the appliance cord. • If cold water pipe is interrupted by plastic, non metallic gaskets, union connections or other insulating materials, PLUG POWER SUPPLY CORD DO NOT use for grounding.
  • Page 29 09FL9600 ed 06 / 2020...

This manual is also suitable for:

Sofia pro f6pgr486gs2
