Summary of Contents for Oxygen PERSEUS 230V

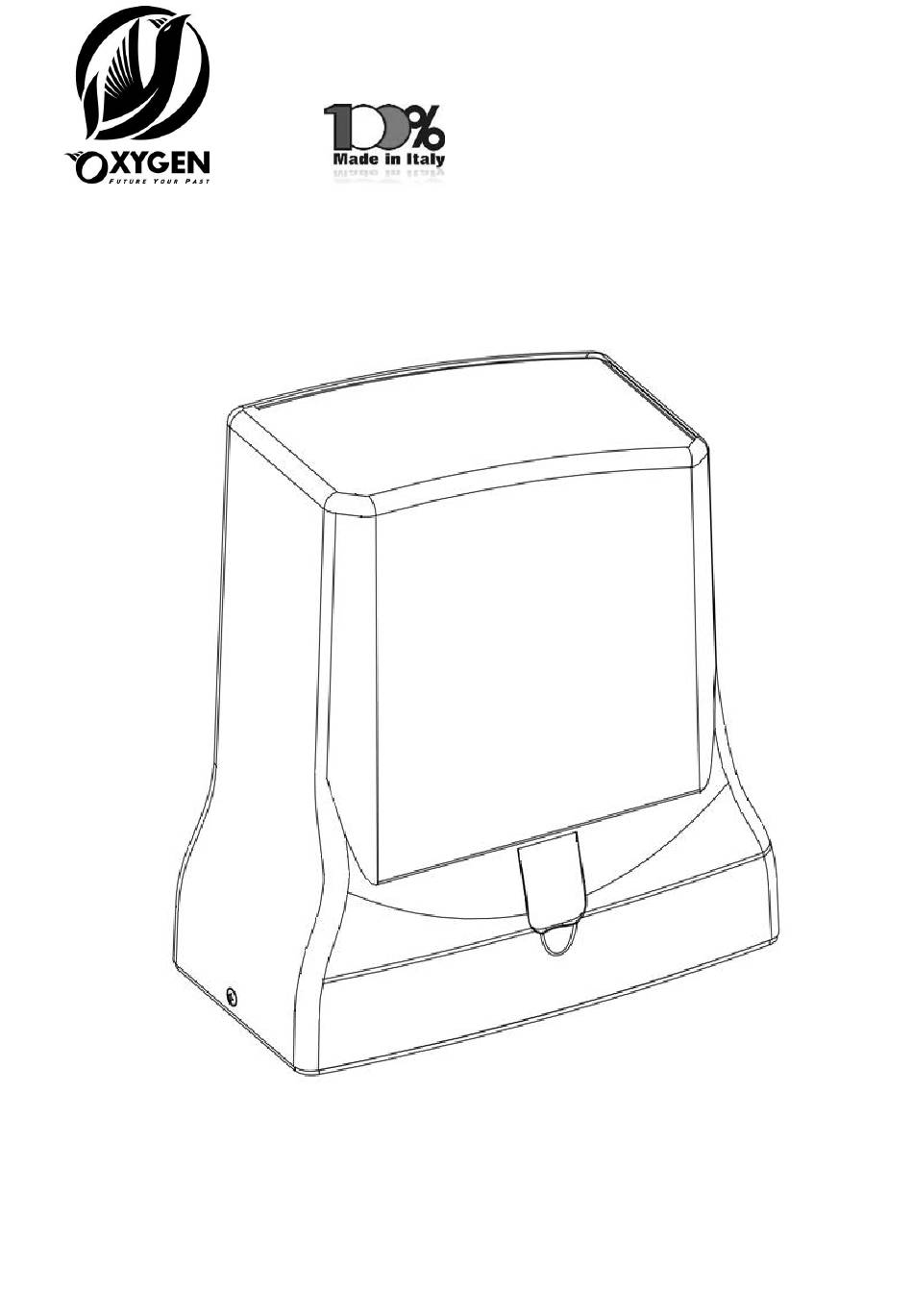

- Page 1 PERSEUS 230V...
- Page 2 INSTALLATION MANUAL Our compliments for your excellent choice. The PERSEUS 230V electro-mechanical gear motor has been produced for reliability and high quality. This Manual will offer information you may need to install your gear motor assuring long-lasting performance and to safeguard your safety.
- Page 3 USE OF THE AUTOMATION The gear motor PERSEUS was designed and built for the opening of gates with weight max. 600kg, meanwhile ARTEMIS is able to reach 800kg. OXYGEN AUTOMATION assumes no responsibility for a purpose other than that provided by gear motor PERSEUS. Since this automation can be activated remotely using a remote control, it is essential to check frequently that all safety devices are working properly.
- Page 4 INSTALLATION FIG. 1 125mm 325mm 72mm 288mm 155mm A = 105mm = VERTICAL DISTANCE BETWEEN THE TEETH OF THE RACK AND THE GROUND B = 20mm= HORIZONTAL DISTANCE BETWEEN THE DRIVE WHEEL AND THE GATE C = 55mm = HORIZONTAL DISTANCE BETWEEN THE BASE OF THE MOTOR AND THE GATE FOUNDATION PLATE (OPTIONAL) INSTALLING THE RACK If the base has yet to be prepared and the installation of the motor is not...
- Page 5 ENGINE POSITIONING FINAL OPERATIONS If there is a concrete base already prepared, it is possible to install the Once the rack and motor have been fixed, release the motor (see Par.7 / motor, without using the given foundation plate, following the installation FIG.8), and move the gate to check that it slides freely and effortlessly.
- Page 6 Sicherheit des Systems beeinträchtigen. Alle Materialien in der Verpackung dürfen nicht in Reichweite von Kindern liegen, da sie eine Gefahrenquelle darstellen. 100% Made in Italy Manufactured under CE regulation in ITALY and distributed in EUROPEAN UNION and OVERSEAS countries by OXYGEN AUTOMATION SRL 40100 BOLOGNA - ITALY and its authorized dealers Contact:...
