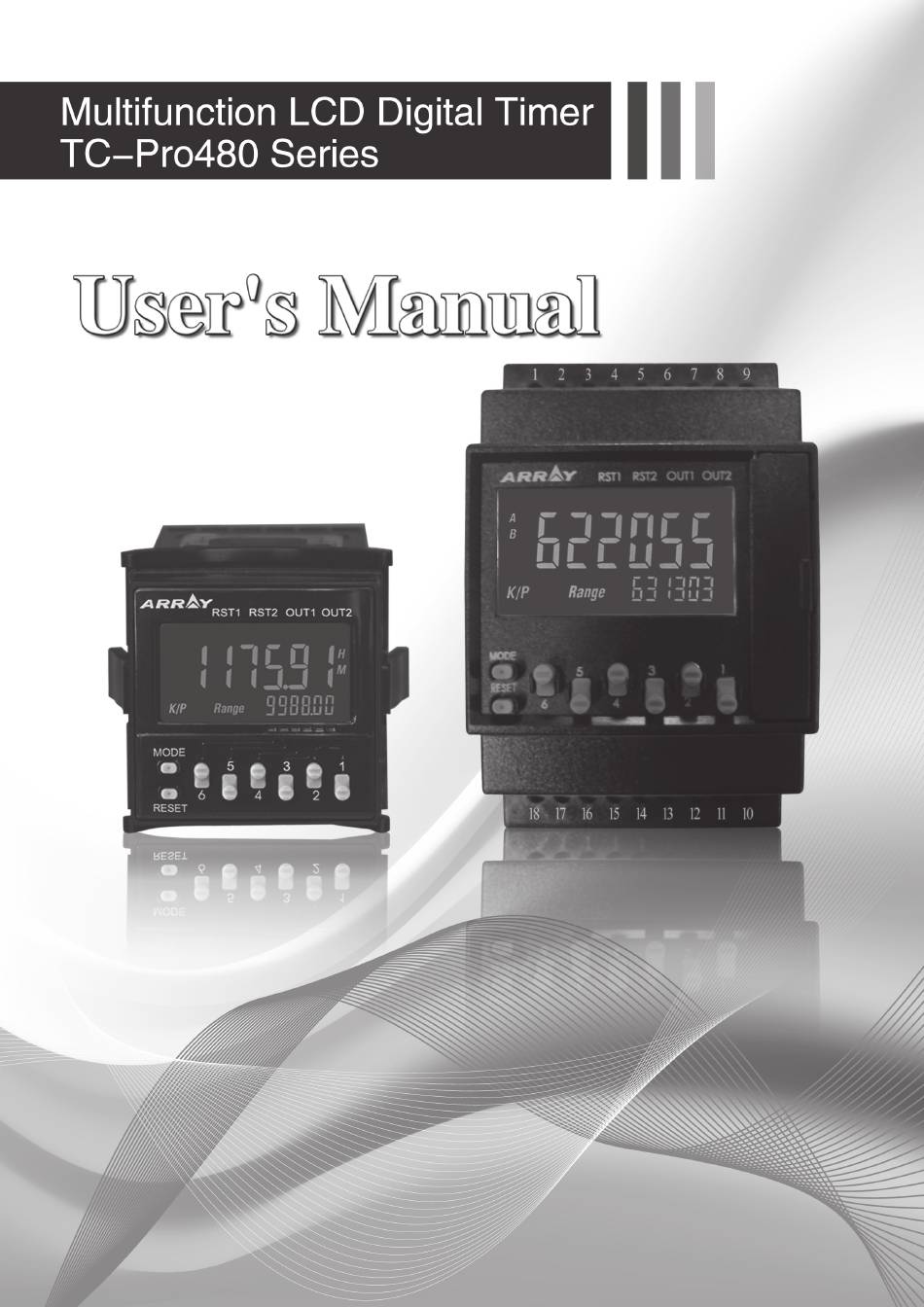

Array electronic TC-Pro480 Series User Manual

Multifunction lcd digital timer

Advertisement

Ver:3.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC-Pro480 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Array electronic TC-Pro480 Series

  • Page 1 Ver:3.0...
  • Page 2: Table Of Contents

    Multifunction LCD Digital Timer Multifunction LCD Digital Timer TC-Pro480××× Highly visible display with backlit negative transmissive LCD ■ Visual alert when output status changes ■ PNP/NPN switchable DC-voltage input ■ Finger-safe terminals(screw terminal block models) ■ Three-language instruction manual ■ Applied to connect PC and HMI ■...
  • Page 3: Model Number Structure

    Multifunction LCD Digital Timer/Counter/Tachometer Model Number Structure List of Models ■ Model Output type Supply voltage Standard Communication 100~240 VAC TC-Pro480SRA (-D) TC-Pro480CRA (-D) Contact output 24 VDC/24 VAC TC-Pro480SRD (-D) TC-Pro480CRD (-D) 100~240 VAC TC-Pro480STA (-D) TC-Pro480CTA (-D) Transistor output 24 VDC/24 VAC TC-Pro480STD (-D) TC-Pro480CTD (-D)
  • Page 4: Specifications

    Multifunction LCD Digital Timer Specifications Ratings ■ Item TC-Pro480□□□-□ Classification Digital timer Rated supply voltage 100~240VAC (50/60Hz), 24VAC (50/60Hz), 24VDC (permissible ripple: 20% (p-p) max.) Operating voltage 85% to 110% rated supply voltage(24VDC; 90% to 110%) range Approx. 6.2VA at 264VAC, Power consumption Approx.
  • Page 5 Multifunction LCD Digital Timer Characteristics ■ Item TC-Pro480□□□ -□ Mechanical: 10,000,000 operations min. Life expectancy Electrical: 100,000 operations min. (5 A at 250 VAC, resistance load) (EMI) EN61326 Emission Enclosure: EN550 Emission AC mains: EN550 (EMS) EN61326 Immunity ESD: EN61000-4-2 Immunity RF-interference: EN61000-4-3 Immunity Conducted Disturbance:...
  • Page 6: Nomenclature

    Multifunction LCD Digital Timer Nomenclature Reset Indicator The Third Setting Key Control Output Indicator The Fourth Setting Key Present Value (character height: 9 mm) The Fifth Setting Key Time Unit Display (If the time range is 0 min, The Sixth Setting Key 0.0 min, 0 h, 0.0 h, 0h0 min, this display flashes Reset Key (resets present value and output) to indicate timing operation)
  • Page 7: Connection

    Multifunction LCD Digital Timer Connection Block Diagram ■ Output circuit Basic isolation Display circuit Input circuit Internal control circuit Key switch circuit Basic isolation Power supply circuit I/O Functions (Timer/Twin Timer) ■ Stops timing in A-2 and A-3 (power ON delay) modes Start signal Starts timing in other modes Reset present value (In elapsed time mode, the present value returns to 0;...
  • Page 8: Operating Procedures

    Multifunction LCD Digital Timer Operating Procedures Timer/Twin Timer/2-stage Timer Selection Mode ■ Power ON Note: when the mode is changed to timer/twin timer/2-stage timer selection mode, the present value is reset and output turns OFF. See note See note 3s min. 3s min.
  • Page 9 Multifunction LCD Digital Timer Communication Format Function Selection Mode ■ Power ON Note: Timer will reset when changing into the communication format setting mode during operation See note See note 3s min 3s min Set the transmision speed with Transmission Speed Transmission speed:1200,2400,4800,9600,14400,19200,28800,38400,57600bps Set the parity check with...
  • Page 10 Multifunction LCD Digital Timer Key Protection Setting Mode ■ Power ON Note: the forecast setting value is not changed if the mode is switched to K/P setting mode and returned to Run Mode during operation. See note See note 3s min. 3s min.
  • Page 11: Timer Function

    Multifunction LCD Digital Timer Timer Function Setting for Timer Function ■ Power ON For details on operation in run mode, refer to page 11. Note: 1. If the mode is switched to the timer function setting mode during operation, operation will continue. 2.
  • Page 12 Multifunction LCD Digital Timer Operation in Run Mode ■ When the output mode is not Z. Set the six digital values with the corresponding keys. Present value Set value When the output mode is Z. Set ON duty ratio with the corresponding keys can not be used) Present value...
  • Page 13 Multifunction LCD Digital Timer Explanation of functions ■ Time range (timr) Set the range to be timed in the range 000.000s to 999999h. Timer Mode (timm) Set either the elapsed time (UP) or remaining time (DOWN) mode. Output Mode (outm) Set the output mode.
  • Page 14: Twin Timer Function

    Multifunction LCD Digital Timer Twin Timer Function Twin Timer Function Setting ■ Power ON For details on operation in run mode, refer to page 14. Note: 1. If the mode is switched to the twin timer function setting mode during operation, operation will continue.
  • Page 15 Multifunction LCD Digital Timer Operation in Run Mode ■ Operation in Run Mode with Set OFF set time the corresponding keys. Present value OFF set value with Set ON set time the corresponding keys. Present value ON set value Present value and OFF Set Time The present value is displayed in the main display and the OFF Set Time is displayed in the sub-display.
  • Page 16: 2-Stage Timer Function

    Multifunction LCD Digital Timer 2-Stage Timer Function 2-stage Function Setting ■ Power ON For details on operation in run mode, refer to page 16. Note: 1. If the mode is switched to the 2-stage timer function setting mode during operation, operation will continue. 2.
  • Page 17 Multifunction LCD Digital Timer Operation in Run Mode ■ When the forecast value is selected Set “set value” with the corresponding keys. Present value Set value Set “forecast set value” with the corresponding keys. Present value Forecast set value When the absolute value is selected Set “set value 1”...
  • Page 18 Multifunction LCD Digital Timer Explanation of functions ■ Forecast / Absolute Value (set1) For details, refer to the following figure. Time Range (timr) Set the range to be timed in the range 000.000s to 999999h. Output Mode (outm) Set the output mode. The possible setting are A and F-1 For details on output mode operation, refer to “timing charts”.
  • Page 19: Sequence Charts

    Multifunction LCD Digital Timer Sequence Charts Timer Operation ■ One-shot output Sustained output Either one-shot output or sustained output can be selected Output mode A: signal ON delay 1 (timer resets when power comes ON) Timing starts when the start signal goes ON. While the start signal is ON, the timer starts when the power comes ON or when the reset input goes OFF.
  • Page 20 Multifunction LCD Digital Timer Output mode b: Repeat cycle 1 (timer resets when power comes ON) Timing starts when the start signal goes ON. The status of the control output is reversed when time is up (OFF at start). While the start signal is ON, the timer starts when the power comes ON or when the reset input goes OFF.
  • Page 21 Multifunction LCD Digital Timer Output mode d: Signal OFF delay (Timer resets when power comes ON.) The control output is ON when the start signal is ON (except when the power is OFF or the reset is ON.) The timer is reset when the time is up. Basic Operation Power Start signal input...
  • Page 22 Multifunction LCD Digital Timer Twin Timer Operation ■ Output Mode toff: flicker OFF start Timing starts when the start signal goes ON. The status of the control output is reversed when time is up (OFF at start). While the start signal is ON, the timer starts when the power comes ON or when the reset input goes OFF.
  • Page 23 Multifunction LCD Digital Timer 2-Stage Timer Operation ■ A Mode: Signal ON delay (Timer resets when power comes ON.) Timing starts when the start signal turns ON. While the start signal is ON, the timer starts when the power turns ON or when the reset input turns OFF.
  • Page 24: Dimensions

    Multifunction LCD Digital Timer Dimensions Note: all units are in millimeters unless otherwise indicated. Dimensions without Flush Mounting Adapter Note: M3 terminal screw (effective length: 8mm) Dimensions with Flush Mounting Adapter Panel Cutouts > > > Note: The mounting panel thickness should be 1.5 mm. To allow easier operability, it is recommended that adapters are mounted so that the gap between sides with hooks is at least 20mm.
  • Page 25 Multifunction LCD Digital Timer Dimensions Note: all units are in millimeters unless otherwise indicated. Dimensions without DIN Track Mounting Adapter Note: M3 terminal screw (effective length: 8mm) Dimensions without DIN Track Mounting Adapter (with communication)
  • Page 26: Installation & Accessories

    Multifunction LCD Digital Timer Installation & Accessories Cable: CAB - 090A□□□(order separately) Cable: CAB - 090B□□□(order separately) Waterproof Packing Flush Mounting Adapter End Plate CABC-44 Mounting Track PR-43 BK-6 0F-A (order separately) ADP-090401 apdater changing 4 into 9 PIN Panel Protective Cover Communication Protective Cover (special between 232, 485 and 422, SVF-A...
  • Page 27: Input Connections

    Multifunction LCD Digital Timer Input Connections Signal, Reset, and Gate Input No-voltage Input Signal Levels Short-circuit level Transistor ON Residual voltage: 3V max. Impedance when ON: 1KΩ min. No-contact (the leakage current is 5 to 20 mA input Internal circuit when the impedance is 0 Ω...
  • Page 28 Multifunction LCD Digital Timer Two-wire Sensor Leakage current: 1.5 mA max. Gate CP1 Switching capacity: 5 mA min. Reset 2 External voltage + Residual voltage: 3 VDC max. Reset 1 Operating voltage: 10 VDC Internal circuit Signal CP2 External voltage - Voltage inputs (PNP inputs) No-contact Input (NPN Transistor) (Connection to NPN open collector output sensor) External voltage +...
  • Page 29: Safety Precautions

    Multifunction LCD Digital Timer Safety Precautions Input and Output Caution When connecting relay and transformer as an √ Do not use the product where corrosive or external signal input device, it is necessary to pay volatile gases are present, or there may attention to the following points to prevent the short occasionally be a risk of explosion.
  • Page 30 Multifunction LCD Digital Timer Transistor Output Operation environment The transistor output of TC-Pro is insulated from the √ Use the product within the rating specified for internal circuitry by a photocoupler, so the transistor submerging in water and exposure to oil. output can be used as both NPN and PNP output.
  • Page 31: Additional Information

    Multifunction LCD Digital Timer Additional Information (Using the operation keys) Timer Operation ■ Timer Power ON Time range 3s min. 3s min. Timer mode Run Mode Function setting Twin Timer mode Timer (except for Z mode) Output mode 2-Stage Timer PV/SV Output time Timer(Z mode)
  • Page 32: List Of Settings

    Multifunction LCD Digital Timer List of Settings Timer/Twin Timer/2-Stage Timer Selection Mode ■ Fill in your set values in the set value column of the following tables and utilize the tables for quick reference. Default Parameter name parameter Setting range Unit Set value value...
  • Page 33 Multifunction LCD Digital Timer Function Setting Mode Default Parameter name parameter Setting range Unit value value --.--s/---.-s/----s/--min:--s/---.-min/ Time range timr --.--s ----min/--h:--min/---.-h/----h/-.---s Timer mode timm up/down Output mode outm a/a-1/a-2/a-3/b/b-1/d/e/f/z Output time otim hold/0000.01~9999.99 hold Input signal width iflt 20ms/1ms 20ms NPN/PNP imod...
  • Page 34 Multifunction LCD Digital Timer Settings for 2-Stage Timer Operation ■ Run mode Default Parameter name parameter Setting range Unit value value 0000.00~9999.99 (Time range: -.-s) 0000.00 00000.0~99999.9 (Time range: -.-s) 00000.0 000000~999999 (Time range: --s) 000000 0000:00~9999:59 (Time range: -min-s) 0000:00 min:s 00000.0~99999.9 (Time range: -.-min)
  • Page 35 List of Models :...
