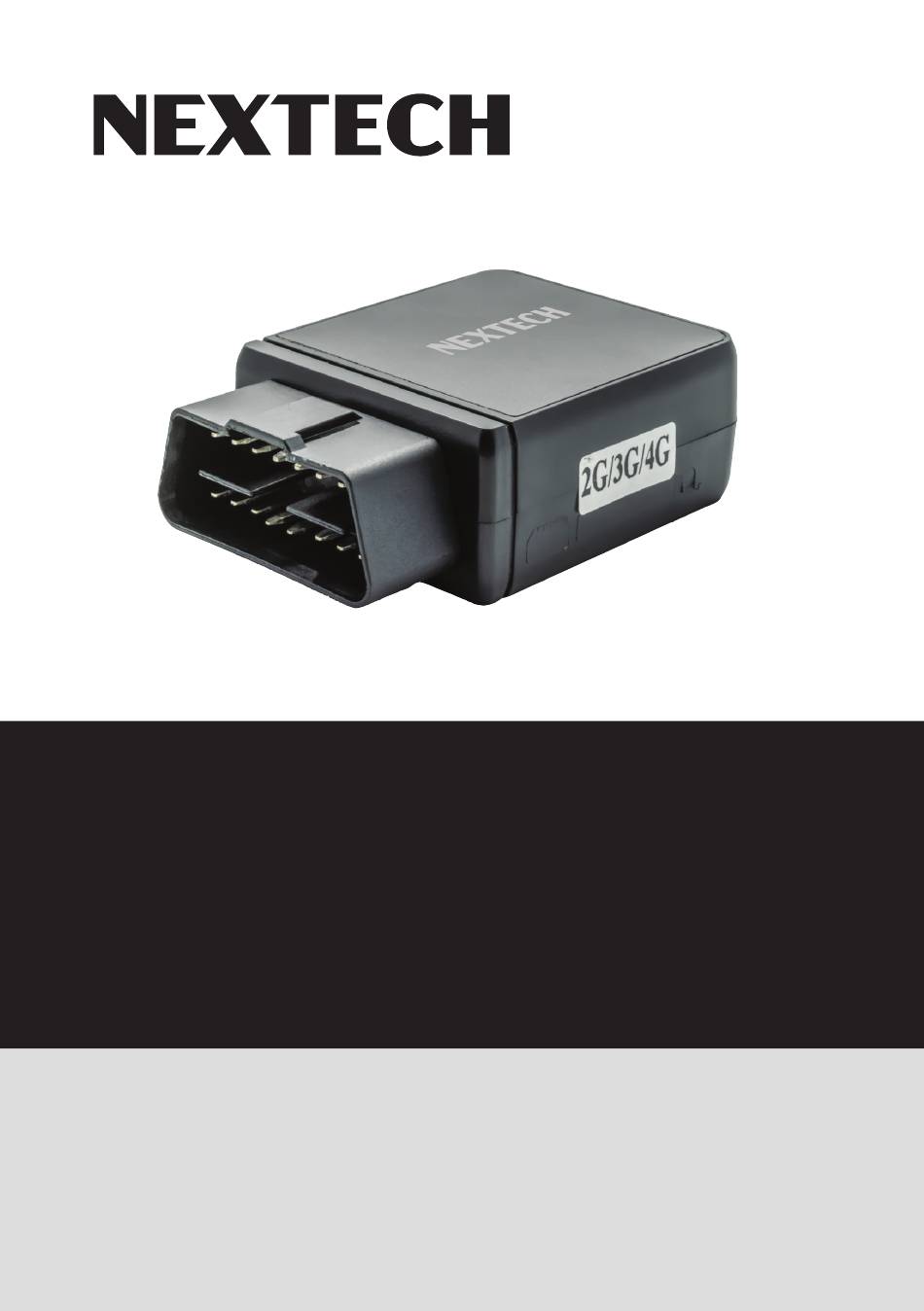

- Page 1 OBD II 4G/GPS Tracking Device Instruction Manual...

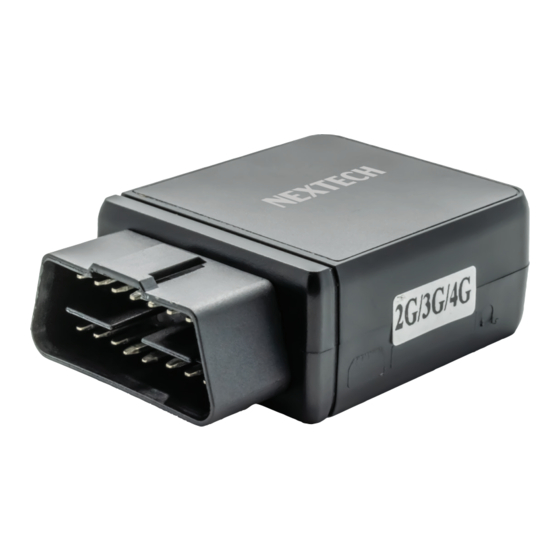

- Page 2 INTRODUCTION: The OBD II 4G/GPS Tracking Device includes GPS & 2G GSM / 3G WCDMA / 4G LTE module and OBD II interface (Support Can Protocol: ISO15765-4, KWP2000:ISO14230-4, ISO9141-2, J1850VPW, J1850PWM), it can upload current location to website, display history tracking on website, it has map link locate function without platform, it is very easy to install and using, just insert the tracker to car OBD socket is OK, also it built in shock sensor to control power &...
-
Page 3: Product Overview
PRODUCT OVERVIEW: SIM Card Slot OBD Socket System LED External Wire (Optional) FEATURES: • 2G/3G/4G global network • 2 channel Can Bus interface • OBD interface, DIY no installation • Diagnostic Car Status(reply by SMS or Website) • Auto download APN & internet setting •... -
Page 4: Led Indicator Description
LED INDICATOR DESCRIPTION: GREEN LED Flash once 2G/3G/4G & GPS working well GREEN LED Flash twice 2G/3G/4G working well but no GPS signal GREEN LED Flash three times 2G/3G/4G & GPS working well but battery low GREEN LED Flash four times 2G/3G/4G working well but battery low and no GPS signal GREEN LED ON continuously... - Page 5 INSTALLATION: 2. Power ON / OFF • Insert the tracker to OBD socket, the tracker will power on automatically. • When tracker is removed from the OBD socket, then the tracker will send power down alarm to server, the built in battery can work about 0.5-1 hours, later the tracker will power off automatically.
- Page 6 INSTALLATION: 5. Reset to Factory Settings (Default configuration) Sending SMS (factory*12345678) to the tracker will delete all user setting and back to factory configuration and repower on. Note: After a factory reset, all IP / APN / internet/ Language / Timezone / Alarm Setting etc are deleted, just like a new product, all authorized phone numbers are deleted and password change to 123456, all the alarm settings are canceled, if the IP/APN/internetname &...
-
Page 7: Operating The Device
OPERATING THE DEVICE: Initial Preparations Firstly, you will need a functioning 2G GSM or 3G WCDMA or 4G LTE mobile phone SIM card with a data plan for internet usage, Insert the SIM card into the tracker correctly. Insert the tracker into the OBD socket, the tracker is powered on. Check LED flash, If Green LED flash once means mobile phone and GPS signal is working. -
Page 8: Location Instructions
OPERATING THE DEVICE: Location Instructions Sending SMS trigger - Location Send SMS “URL*12345678” to the tracker, “URL” is a command, “12345678” is password. If the operation is success, the tracker will send back the location information with map link to the sender. User click the link, the location in a map will display. - Page 9 OPERATING THE DEVICE: Disarming the Shock Alarm by sending SMS Send SMS “DISARM*12345678” to tracker, “DISARM” is a command, “12345678”is password, the tracker will send back the information “Set Shock Alarm OFF” to indicate the operation is a success and disable the shock alarm, if the password is incorrect, the operation will fail and the tracker will send back information “Wrong Password”.
- Page 10 OPERATING THE DEVICE: Checking Vehicle OBD Information via SMS When the car engine is running, you can check the car OBD information on the website. Log into the website www.nextechgps.com, Click: device will display a menu below the device, click “More” in the menu, the menu will pop up, and then click the “OBD”...
- Page 11 TRACKER SETTINGS: Set APN & Internet User Name & Password This tracker can download & config APN & internetusername password automatically after power on, if the APN & internetuser name password are not right, then you need sending SMS to tracker to change them, if the tracker can not upload location to platform (Red LED flash twice), please confirm the auto configuration of APN &...
- Page 12 TRACKER SETTINGS: Set Server IP Send SMS “IP*12345678*58.64.155.133,8011” to the tracker, in which, “IP” is the fixed command, “12345678” is the password and “58.64.155.133,8011” is the IP address of the server computer of our website. Having successfully been set, there will be a SMS “IP: 58.64.155.133,8011”. However, the IP address may be changed with the upgrade of our server, so please see to the notices on our website.
- Page 13 TRACKER SETTINGS: Check authorized phone number by SMS Send SMS “CHECKPHONE*12345678” to tracker, “CHECKPHONE” is a command; “12345678” is password; if the operation is success, the tracker will send back the information “Authorized Phone A: 13987654321, B:13876543210, C:13765432101 , the phone number is just an example. if the password is not right, the operation is fault, the tracker will send back information or “Wrong Password”.
- Page 14 TRACKER SETTINGS: Set Upload Time Interval Send SMS “INTERVAL*12345678*xxx” to tracker, “INTERVAL” is a command, “12345678” is password, “xxx” is the interval time, which can be set from 30 to 999 seconds. The tracker will send back information “Set Interval xxx OK”, if the password is not right, the operation is fault, the tracker will send back information “Wrong Password”.
- Page 15 TRACKER SETTINGS: Reset the tracker Send SMS “RESET*12345678” to tracker can make the tracker power off and power on again, “RESET” is the fixed command, “12345678” is password. The tracker will send back information “Cancel all alarm setting and re-power on”, then the tracker will power off and power on automatically, if the password is not right, the operation is fault, the tracker will send back information “Wrong Password”.
- Page 16 PLATFORM OPERATION GUIDE: Note: Please confirm that the SIM card PIN code has been disabled, it means if mobile phone use this SIM card, it is not necessary to input any password. Otherwise the tracker can not find GSM or CDMA network, the Green LED will keep ON .
-
Page 17: Troubleshooting
TROUBLESHOOTING: The tracker auto power off: please confirm the tracker power supply is connect properly. After power on the tracker, the tracker RED LED keep on, and it has not any repose, and no ring, please confirm the SIM card has been installed properly, the SIM card PIN code is disable, and the SIM card has enough charge, and the mobile phone can work well in that place. - Page 18 LA9039 SPECIFICATIONS: Communicate 2G GSM / 3G Working Voltage 9-40V DC Network WCDMA / 4G LTE 2/3/4G Module (Can 2G GSM Band EC25-AUX (Quectel) B2/B3/B5/B8 be Customized) B1/B2/B3/B4/B5/ 3G WCDMA Band 4G LTE-FDD Band B1/B2/B4/B5/B8 B7/B8/B28 2/3/4G & GPS GNSS Module Internal &...
-
Page 19: Warranty
WARRANTY: This system has been tested before sold. We strongly recommend you to get this system installed by professional. There is a one-year warranty except the following condition: Installed, fixed, or changed by personally or unprofessional. Warranty will eliminate if the ownership of the tracker has been changed. - Page 20 Distributed by: Electus Distribution Pty. Ltd. 320 Victoria Rd, Rydalmere NSW 2116 Australia www.electusdistribution.com.au Made in China...
