- Page 1 HeartSine samaritan ® SAM 450P Trainer model TRN-450-1 User Manual...
-
Page 2: Table Of Contents
Pre-programmed training scenarios Manual control of the HeartSine samaritan PAD 450P Trainer CPR Rate Advisor training module ™ HeartSine samaritan PAD 450P Trainer with CPR Rate Advisor, SAM 450P CPR Rate Advisor training Compressions Maintenance HeartSine samaritan PAD 450P Trainer battery management... -
Page 3: Introduction
HeartSine samaritan PAD 450P Trainer has no therapeutic capabilities and must not be used in real life rescue situations. IMPORTANT: In order to avoid confusion in the event of a real life rescue, do not store or leave the HeartSine samaritan PAD 450P Trainer near the HeartSine samaritan PAD 450P automated external defibrillator. -
Page 4: Preparing The Heartsine Samaritan Pad 450P Trainer For Use
Do not press any buttons while inserting the remote control batteries as this will reset the remote control ID. 4) Press the On/Off button on the HeartSine samaritan PAD 450P Trainer and listen to the voice prompts to ensure that the unit is functioning. -

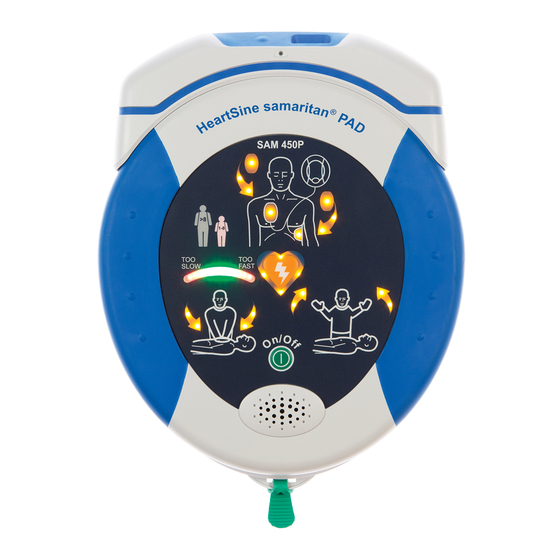

Page 5: Heartsine Samaritan Pad 450P Trainer
Advisor A. Data port - The data port connects the HeartSine samaritan PAD 450P Trainer to a PC via the USB data cable. When the HeartSine samaritan PAD 450P Trainer is connected, the training provider can change settings, such as training scenarios (see page 8 for training scenarios). -
Page 6: Managing The Electrodes
The training scenarios include audible prompts to remove the electrodes from the Trainer-Pak and to position the electrode pads as indicated. Follow the steps below when prompted to do so. 1) Pull the green tab to open the HeartSine samaritan PAD 450P Trainer Trainer-Pak cartridge and fully extend the electrode cables. -
Page 7: The Remote Control
A. Turning off the HeartSine samaritan PAD 450P Trainer - The remote control can be used to turn off the HeartSine samaritan PAD 450P Trainer. To turn off the HeartSine samaritan PAD 450P Trainer, press the red Off button on the remote control. -
Page 8: Pre-Programmed Training Scenarios
Pre-programmed training scenarios The HeartSine samaritan PAD 450P Trainer has six preprogrammed training scenarios to choose from. All preprogrammed scenarios are based on AHA/ERC 2015 guidelines. Details of the preprogrammed scenarios are given below. Scenario 1 1. Setup mode Trainee to “Call for Medical assistance”, “Pull green tab”, etc 2. - Page 9 Trainee to perform CPR with guidance from prompts; this includes an audible indication of when to perform rescue breaths. The metronome changes from a “beep” to a “tick” for the duration of ten compressions. 9. Repeat Trainee to repeat Steps 6 to 8 until ‘On/Off’ button is pressed HeartSine samaritan PAD 450P Trainer User Manual...
-
Page 10: Manual Control Of The Heartsine Samaritan Pad 450P Trainer
Manual control of the HeartSine samaritan PAD 450P Trainer The remote control allows training providers to control the scenario manually. When turned on, the HeartSine samaritan PAD 450P Trainer will operate as described in the training scenarios listed. Training providers can override this by pressing the ‘Shock required’, ‘No shock required’... -
Page 11: Cpr Rate Advisor Training Module
CPR Rate Advisor training Training providers can use the remote control to simulate the CPR Rate Advisor function on the HeartSine samaritan PAD 450P Trainer by using the remote control. Training providers should observe the CPR being provided by the trainees and based on observations press the appropriate button. -
Page 12: Compressions
CPR Rate Advisor training module Compressions The HeartSine samaritan PAD 450P Trainer can mimic the CPR Rate Advisor function on the SAM 450P defibrillator. CPR not started If the trainee has not started to perform CPR, press the ‘Begin CPR/good speed’ button. The HeartSine samaritan PAD 450P Trainer will play the audible prompt: “Begin CPR”... - Page 13 The HeartSine samaritan PAD 450P Trainer will play the prompt: “Good speed” Four green LEDs in the center of the CPR Rate Advisor on the HeartSine samaritan PAD 450P Trainer will illuminate. The trainee should maintain this speed for the compressions.
-
Page 14: Maintenance
“Warning. Low battery” If this warning is heard you may continue to use your HeartSine samaritan PAD 450P Trainer for a limited period of time. If the battery becomes completely depleted the HeartSine samaritan PAD 450P Trainer will shut itself down. At this point the HeartSine samaritan PAD 450P Trainer should be recharged. -
Page 15: Remote Control Batteries
The remote control for each HeartSine samaritan PAD 450P Trainer is then given the same identification number. In the unlikely event that two devices with the same ID number are being used at the same time, use the HeartSine samaritan PAD 450P Trainer Configuration Tool to assign new numbers to the devices. -
Page 16: Cpr Guidelines 2015
Association (AHA) and theEuropean Resuscitation Council (ERC) in their 2015 published Guidelines for CPR and ECC. This is intended only as a quick reference for trained CPR providers. HeartSine recommends that all potential users of the SAM 450P are trained by a competent training organization in both the use of CPR and SAM 450P, prior to placing a SAM 450P into service. -
Page 17: Disposal Instructions
If you wish to dispose of the HeartSine samaritan PAD 450P Trainer unit, it should be disposed of at an appropriate recycling facility according to national, state and local requirements. Alternatively return the unit to your local distributor or HeartSine Technologies for disposal. - Page 18 heartsine.com...
- Page 19 HeartSine samaritan PAD 450P Trainer User Manual...
- Page 20 Preparing for Use h e a r t s i n e . c o m For further information contact us at heartsinesupport@stryker.com or visit our website at heartsine.com. EMEA/APAC U.S./Latin America Customer Support HeartSine Technologies, Ltd. 203 Airport Road West 11811 Willows Road NE ©...
